Carry 3000
Mepcato
on-Line
1 Year
cast iron
CE
Self-priming Oil Pump
40-43L/Min
DC
vehicle/diesel station/oil tank refueling
215x120x160mm
40L/min, 43L/min

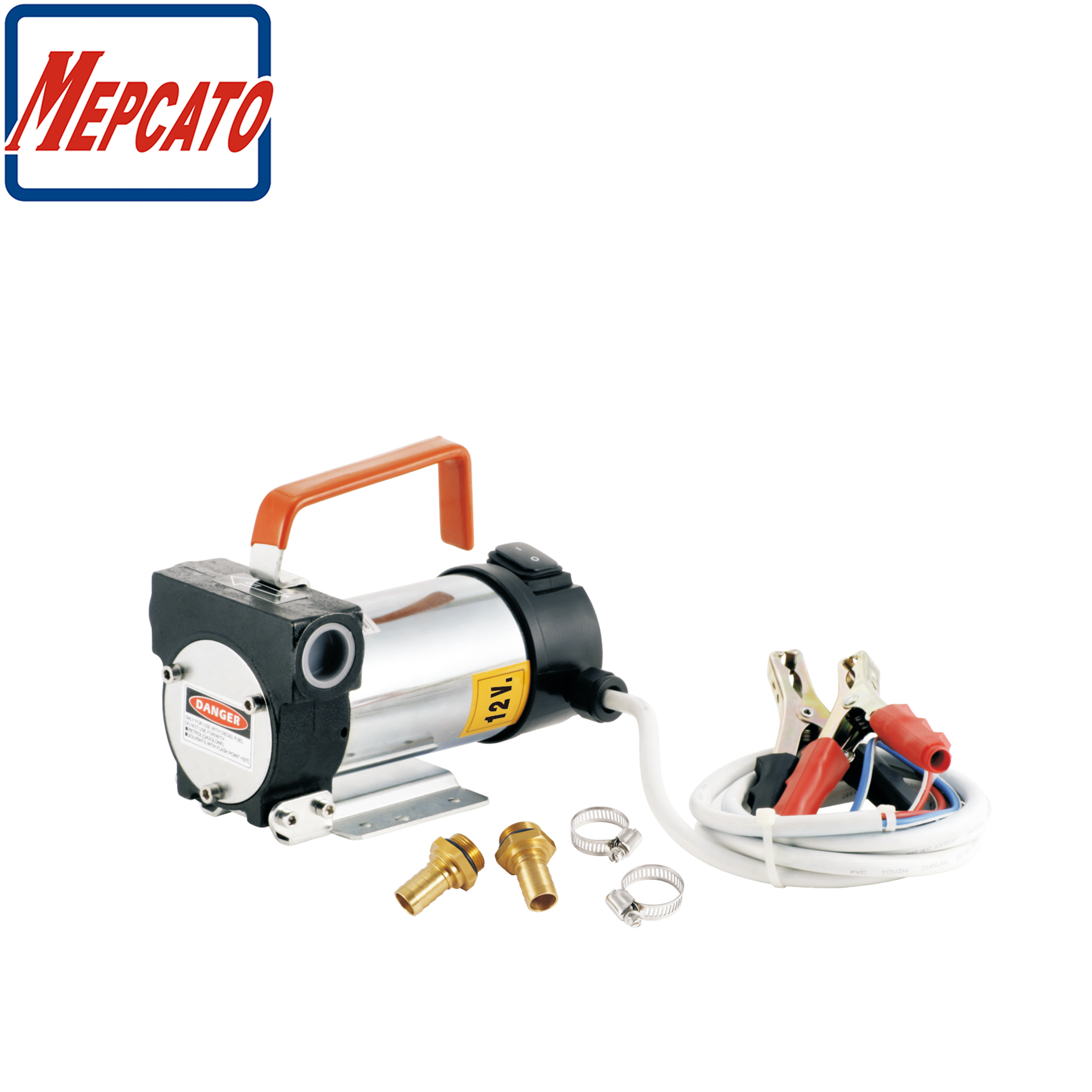

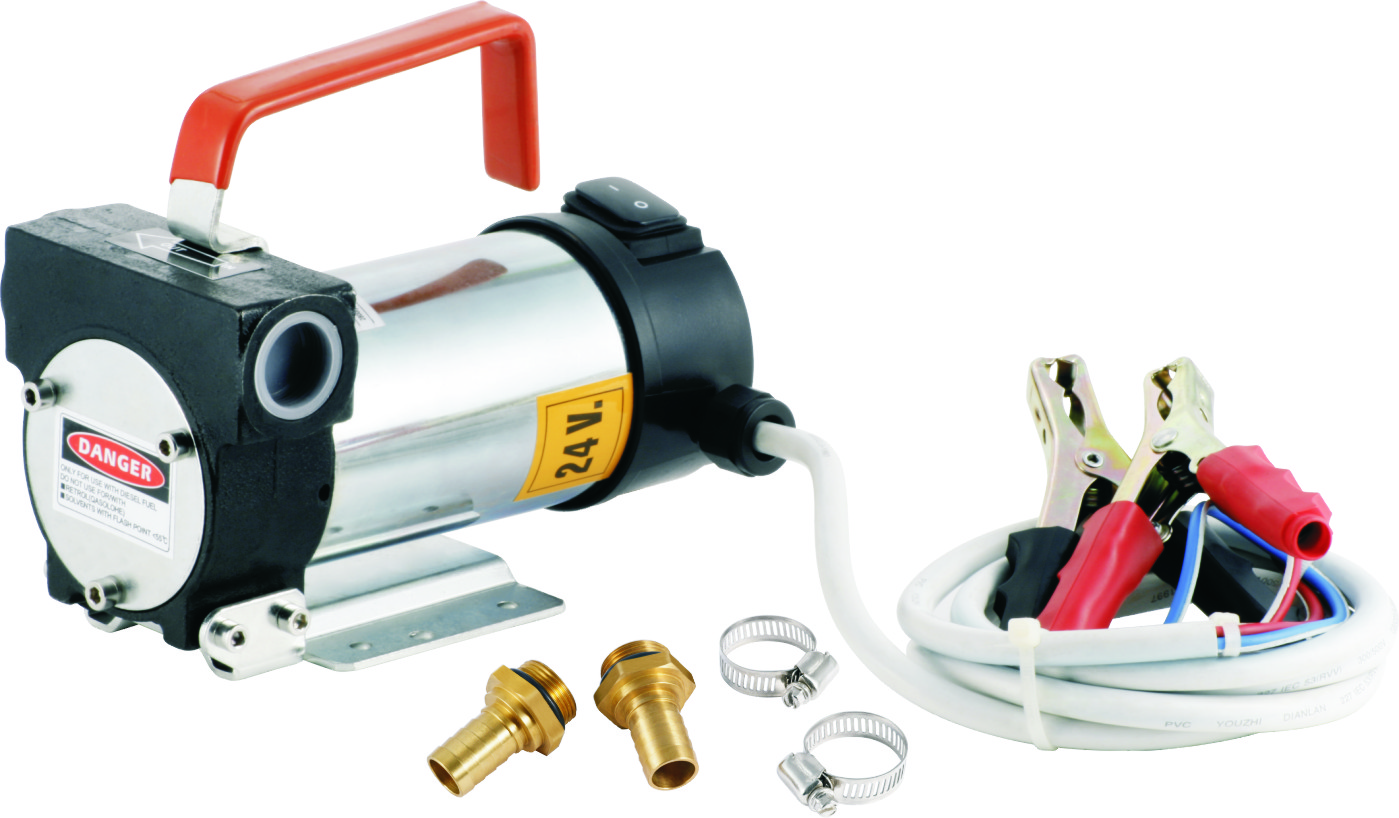

CARRY3000 Diesel Transfer Pump
■ Vane pump with sintered steel rotor and acetal resin vance
■ By-pass valve incorporated in the pump body
■ Direct current brush motor with permanent magnet stator and stainless steel pump core
■ Switch box with fuse carrier, overload protector can protector motor from burning
■ Used in intermittent service with 30-minute work cycles
■ Pump attachment support bracket
■ As the primary system on earth-moving machinery
■ On mobile fuel pumps on vehicles or in construction yard
■ For small diesel station or oil tank fuel transfer
CARRY3000 Diesel Transfer Pump
■ Vane pump with sintered steel rotor and acetal resin vance
■ By-pass valve incorporated in the pump body
■ Direct current brush motor with permanent magnet stator and stainless steel pump core
■ Switch box with fuse carrier, overload protector can protector motor from burning
■ Used in intermittent service with 30-minute work cycles
■ Pump attachment support bracket
■ As the primary system on earth-moving machinery
■ On mobile fuel pumps on vehicles or in construction yard
■ For small diesel station or oil tank fuel transfer
Model | CARRY 3000 12V | CARRY 3000 24V | |
Discharge Bore | 3/4" | ||
Motor Output | Watt | 140 | 160 |
Motor Input | Watt | 240 | 280 |
Pumping Fluid | Type of Fluid | Diesel Fuel | |
Fluid Temperature | 0~50℃ | ||
Pump | Core | Stainless Steel | |
Seal | Double Lip Oil Seal | ||
Casing | Cast iron with anti-corrosion paint | ||
Motor | Protection Class | IP55 | |
Voltage | 12V | 24V | |
Protection Device (Build-in) | Overload Protector | ||
By-pass Valve | |||
Cable | 2m PVC | ||
Accessories | 2pcs 3/4" copper coupling | 2pcs s.steel hose clamp | handle and support bracket |
Model | Pump | Motor | RPM | Connection | Fuse on cable | Weight | Dimension | ||||
Max Flow Rate | Max Head | Max Suction Head | Tension | Max Current | Duty | ||||||
L/min | m | m | V | A | min | Inch | Inch | kg | mm | ||
CARRY 3000 12V | 40 | 11 | 4 | 12 | 18 | 30 | 2800 | 3/4"G | ● | 4.2 | 215x120x160 |
CARRY 3000 24V | 43 | 11 | 4 | 24 | 9 | 30 | 2800 | 3/4"G | ● | 4.2 | 215x120x160 |
Model | CARRY 3000 12V | CARRY 3000 24V | |
Discharge Bore | 3/4" | ||
Motor Output | Watt | 140 | 160 |
Motor Input | Watt | 240 | 280 |
Pumping Fluid | Type of Fluid | Diesel Fuel | |
Fluid Temperature | 0~50℃ | ||
Pump | Core | Stainless Steel | |
Seal | Double Lip Oil Seal | ||
Casing | Cast iron with anti-corrosion paint | ||
Motor | Protection Class | IP55 | |
Voltage | 12V | 24V | |
Protection Device (Build-in) | Overload Protector | ||
By-pass Valve | |||
Cable | 2m PVC | ||
Accessories | 2pcs 3/4" copper coupling | 2pcs s.steel hose clamp | handle and support bracket |
Model | Pump | Motor | RPM | Connection | Fuse on cable | Weight | Dimension | ||||
Max Flow Rate | Max Head | Max Suction Head | Tension | Max Current | Duty | ||||||
L/min | m | m | V | A | min | Inch | Inch | kg | mm | ||
CARRY 3000 12V | 40 | 11 | 4 | 12 | 18 | 30 | 2800 | 3/4"G | ● | 4.2 | 215x120x160 |
CARRY 3000 24V | 43 | 11 | 4 | 24 | 9 | 30 | 2800 | 3/4"G | ● | 4.2 | 215x120x160 |
