MSP-550, MSP-750
Mepcato
on-Line
1 Year
37/45M
75L/min, 80L/min
Stainless Steel
CE
Impeller
Electric
Stainless steel
Black
clean water
0~40ºC
Residental housing pressure boosting
550W/750W
Mechanical Seal

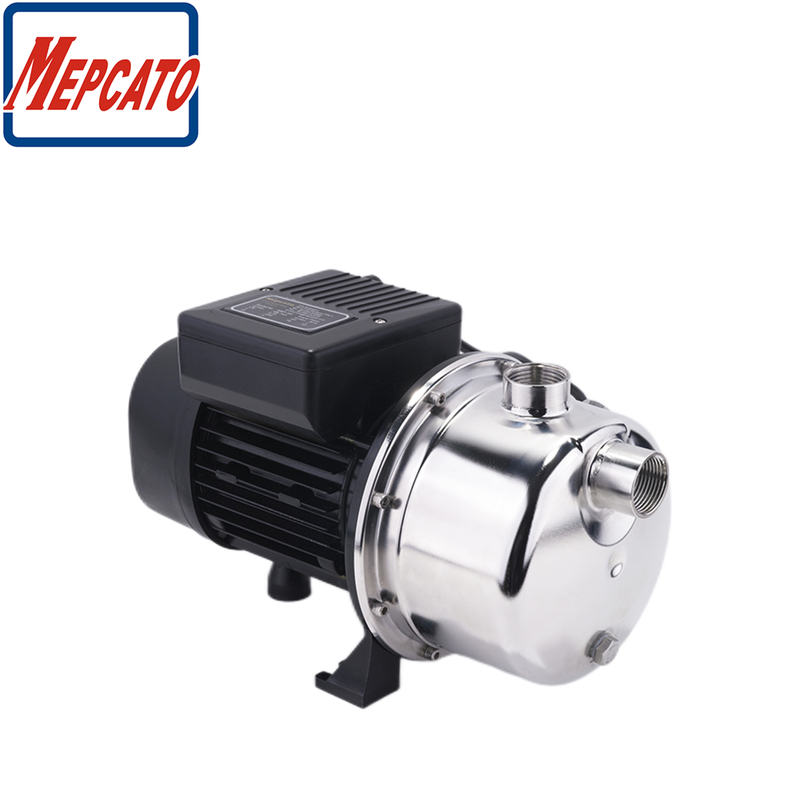

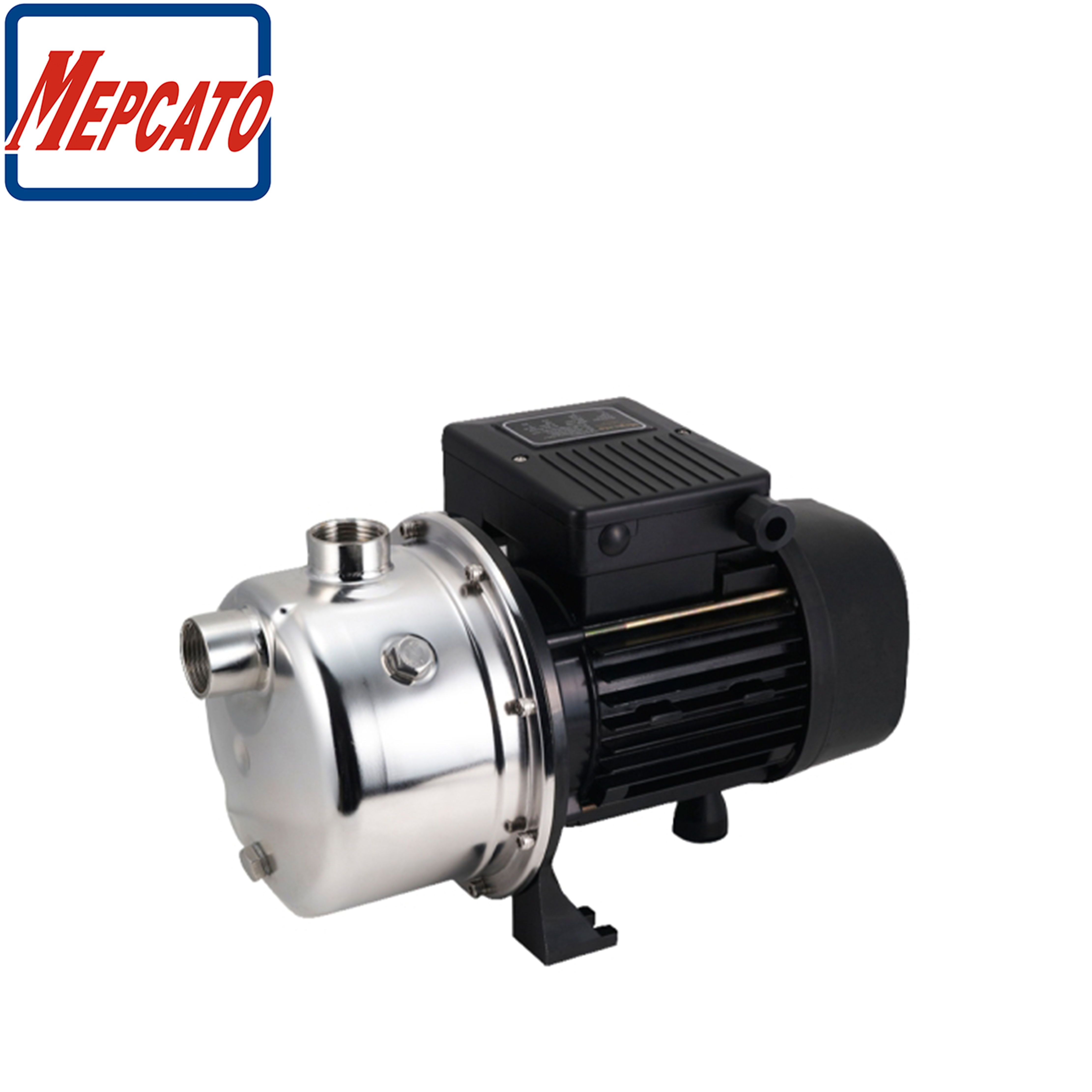

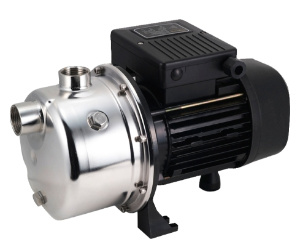

MSP Self-priming Jet Pump
■ Self-Priming Pump
■ Easy installation
■ Dynamically balanced rotating parts to ensure minimum vibration during running
■ Mechanical seal: Italy imported mechanical seal
■ Autosuction: max 9-9.5 meters
■ Pumping and distribution of water in domestic system use on a continuous or intermittent basis.

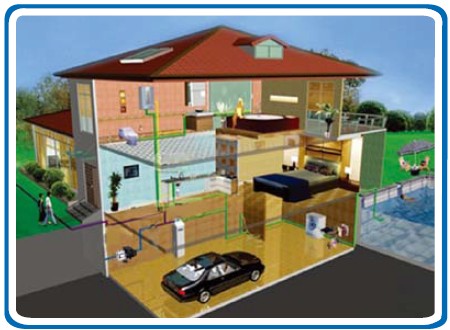

■ Booster system for school, hotel or residential housing
■ Water supply and disposal for washing system, garden watering system.
■ General water supply, pressurization of water by using pressure vessel, horticultural irrigation, mist irrigation, dairy and farm applications.
MSP Self-priming Jet Pump
■ Self-Priming Pump
■ Easy installation
■ Dynamically balanced rotating parts to ensure minimum vibration during running
■ Mechanical seal: Italy imported mechanical seal
■ Autosuction: max 9-9.5 meters
■ Pumping and distribution of water in domestic system use on a continuous or intermittent basis.
■ Booster system for school, hotel or residential housing
■ Water supply and disposal for washing system, garden watering system.
■ General water supply, pressurization of water by using pressure vessel, horticultural irrigation, mist irrigation, dairy and farm applications.
Model | MSP Series | |
Pumping Fluid | Type of Fluid | Clean Water free from solids or abrasive substances and non-aggressive |
Fluid Temperature | 0~45℃ | |
Pump | Impeller | Stainless Steel Open Type |
Shaft Seal | Italy Double Face Mechanical Seal, Silicon Carbide | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Frame | Aluminum Alloy Die-casing | |
Shaft | Stainless Steel |

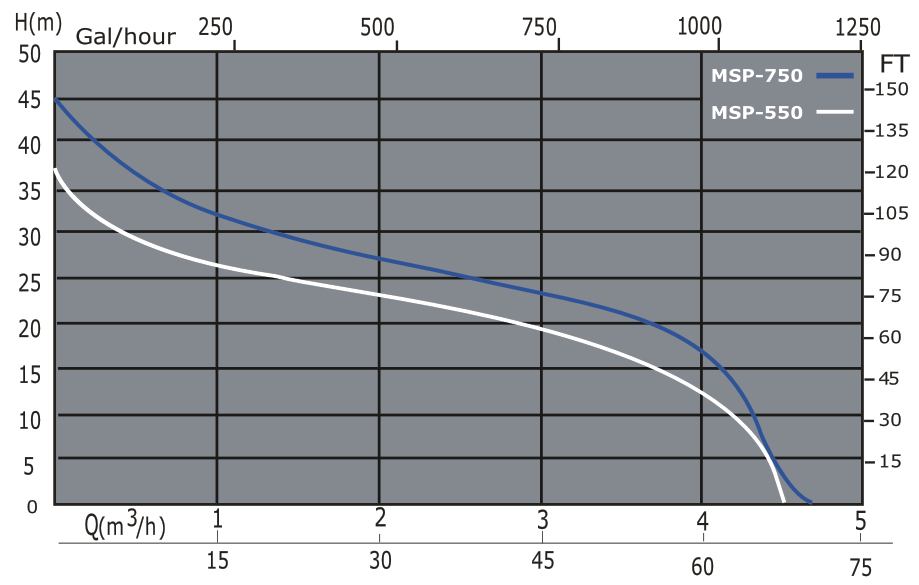

Model | Power | Voltage | Max Flow | Max Head | Max Suction | DNA/DNM | L x W x H | Weight | |||
HP | kW | V/Hz | L/min | m | m | Inch | cm | cm | cm | kg | |
MSP-550 | 0.8 | 0.55 | 220V/50Hz | 75 | 37 | 9 | 1 | 35.5 | 18.5 | 21.5 | 9.5 |
MSP-750 | 1 | 0.75 | 80 | 45 | 9.5 | 1 | 35.5 | 18.5 | 21.5 | 10 |
Model | MSP Series | |
Pumping Fluid | Type of Fluid | Clean Water free from solids or abrasive substances and non-aggressive |
Fluid Temperature | 0~45℃ | |
Pump | Impeller | Stainless Steel Open Type |
Shaft Seal | Italy Double Face Mechanical Seal, Silicon Carbide | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Frame | Aluminum Alloy Die-casing | |
Shaft | Stainless Steel |
Model | Power | Voltage | Max Flow | Max Head | Max Suction | DNA/DNM | L x W x H | Weight | |||
HP | kW | V/Hz | L/min | m | m | Inch | cm | cm | cm | kg | |
MSP-550 | 0.8 | 0.55 | 220V/50Hz | 75 | 37 | 9 | 1 | 35.5 | 18.5 | 21.5 | 9.5 |
MSP-750 | 1 | 0.75 | 80 | 45 | 9.5 | 1 | 35.5 | 18.5 | 21.5 | 10 |
