| Quantity: | |
|---|---|
Vinflo-06, Vinflo-13, Vinflo-20
Mepcato
Level Regulator
polypropylene
Rubber CE
AC, resistive load, 250V 10A ; AC, inductive load, 250V 3A
Green
0~60ºC
Level Sensor
NPN (Three-Wires)
Standard
Sewage Water Treatment
0.25X0.16X0.115m

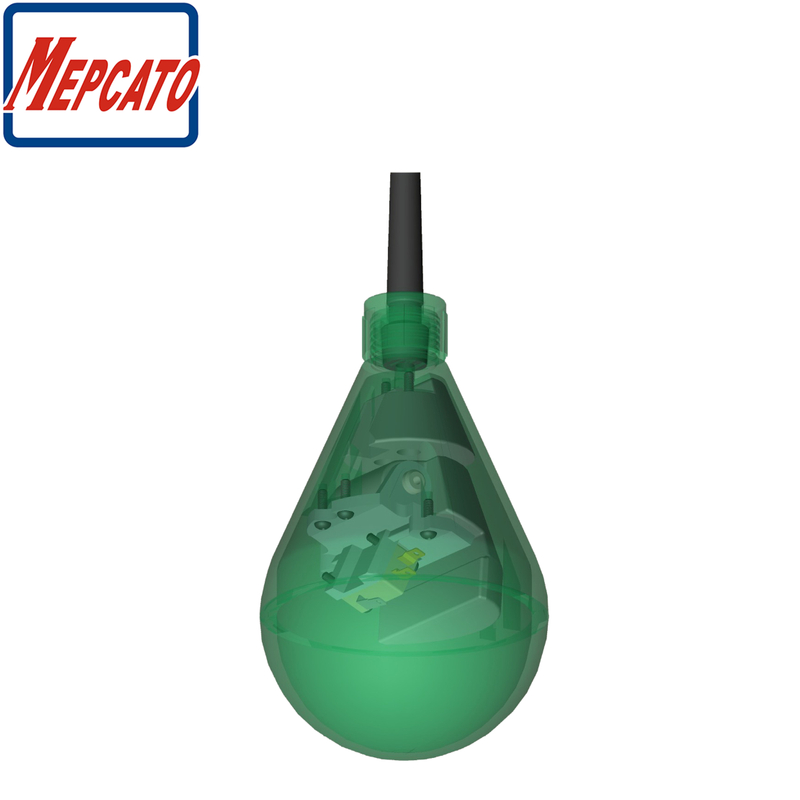

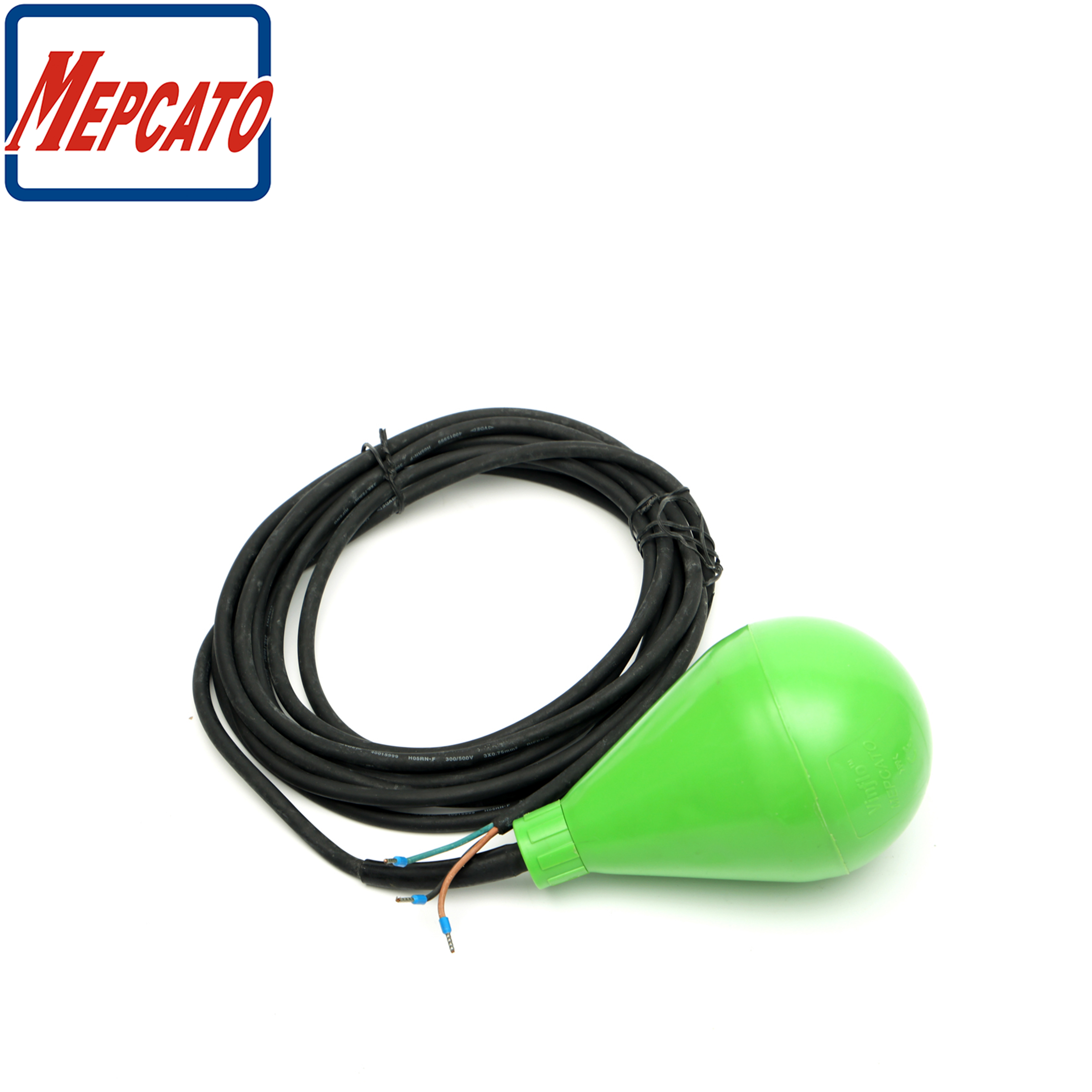

Vinflo Level Regulator
Liquid temperature: min. 0ºC (32ºF)
max. 60ºC (140ºF)
Liquid density: min. 0.95g/cm3
max. 1.10g/cm3
Degree of protection: IP68
Micro switch data
Interrupting capacity of USA micro switch:
AC, resistive load, 250V 10A
AC, inductive load, 250V 3A
With ENEC / VDE Certification
Body: polypropylene
Cable: Rubber CE
Example

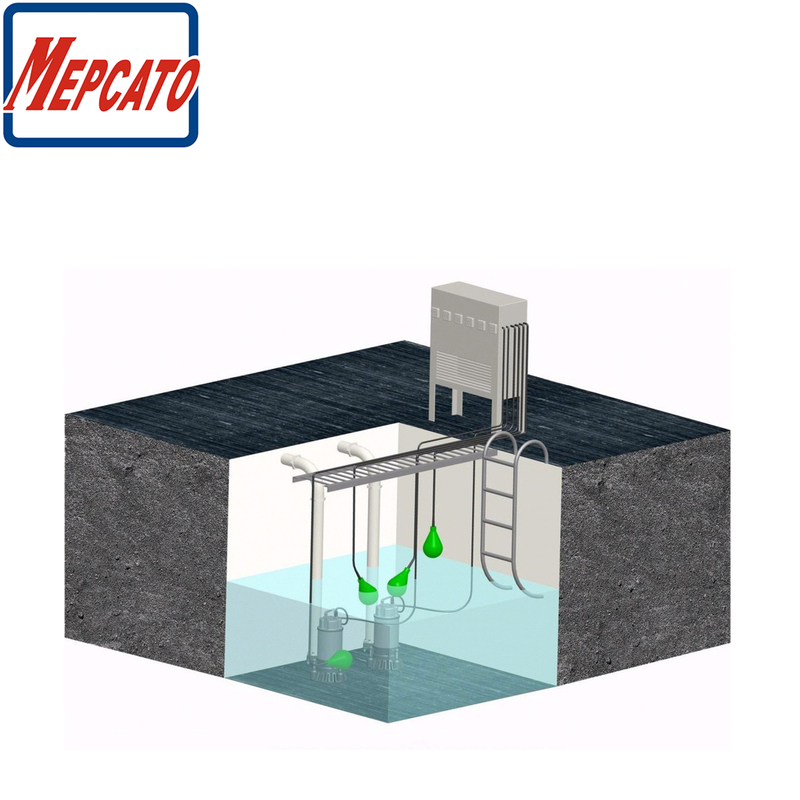

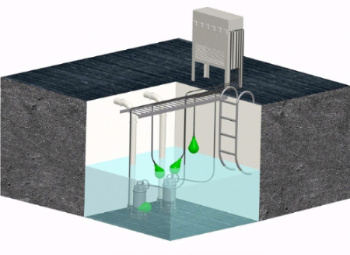

Typically four regulators are used in a two pump station.
Vinflo Level Regulator
Liquid temperature: min. 0ºC (32ºF)
max. 60ºC (140ºF)
Liquid density: min. 0.95g/cm3
max. 1.10g/cm3
Degree of protection: IP68
Micro switch data
Interrupting capacity of USA micro switch:
AC, resistive load, 250V 10A
AC, inductive load, 250V 3A
With ENEC / VDE Certification
Body: polypropylene
Cable: Rubber CE
Example
Typically four regulators are used in a two pump station.
