MEC-20
Mepcato
on-Line
1 Year
5.2/6m
4.2L/Min
Motor
ABS Plastic
CE
2m pvc or rubber
clean water, condensate water
0~60ºC
Condensate removal
280x127x143

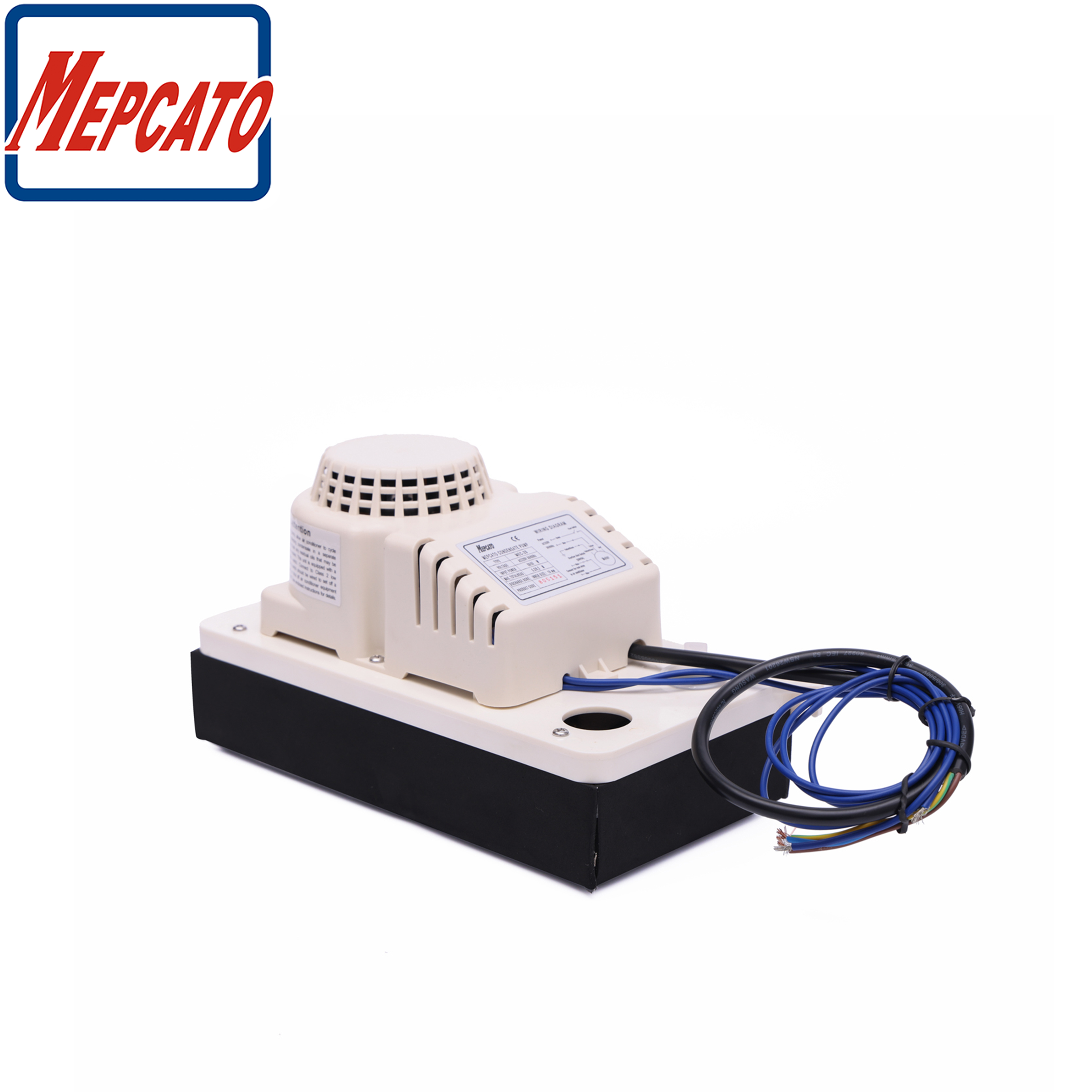

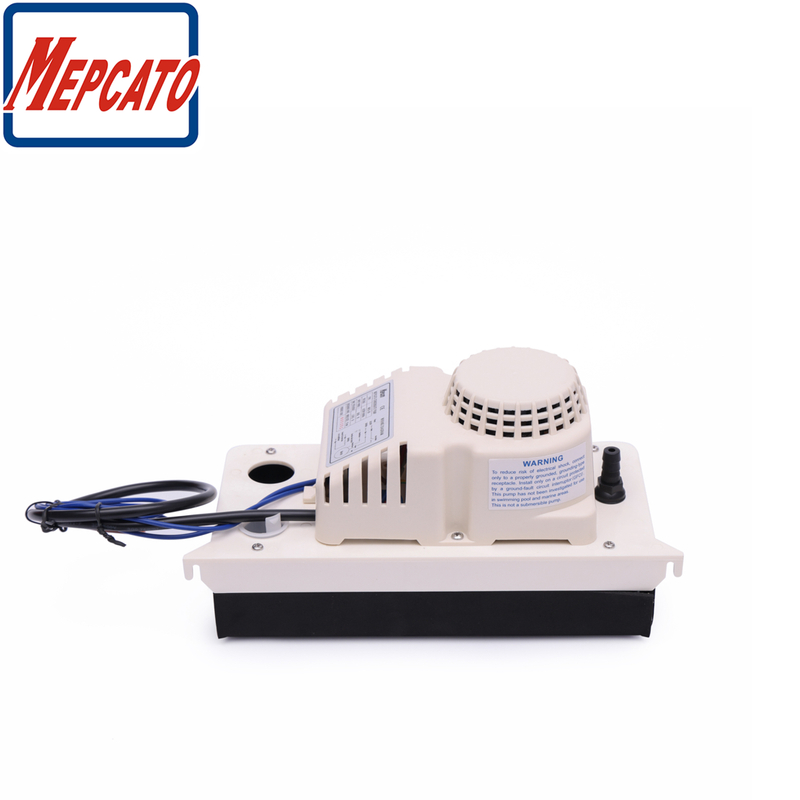

MEC-20 Condensate Pump
Allow servicing without removal of tubing eliminating water spills.
■ Special Cooling Design
Improved cooling increases pump life
■ Sleek and Stylish Appearance
Performs as good as it looks
■ External Test/Run Lever
Quick test/run and easy drainage of the tank for servicing
■ Slimmer Footprint
240mm x 120mm x 55mm size offers flexibility in tight spaces
■ Oil-resistant Tank
Eliminate the problem of cracked tanks with exposure to oil
Ideal for collecting, detecting, and automatic removal of condensate from air conditioners, dehumidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required.
MEC-20 Condensate Pump
Allow servicing without removal of tubing eliminating water spills.
■ Special Cooling Design
Improved cooling increases pump life
■ Sleek and Stylish Appearance
Performs as good as it looks
■ External Test/Run Lever
Quick test/run and easy drainage of the tank for servicing
■ Slimmer Footprint
240mm x 120mm x 55mm size offers flexibility in tight spaces
■ Oil-resistant Tank
Eliminate the problem of cracked tanks with exposure to oil
Ideal for collecting, detecting, and automatic removal of condensate from air conditioners, dehumidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required.
Model | MEC-20 | |
Pumping Fluid | Type of Fluid | Clean water |
Fluid Temperature | 0~60℃ | |
Pump | Impeller | Semi-Vortex, PP+Glass Fiber |
Casing | ABS Plastic | |
Bearing | Ball Bearing | |
Pump | Type, Pole | Dry Type Submersible Induction Motor, 2-pole |
Insulation | Class B | |
Phase/Voltage | Single Phase/110, 200V-230V | |
Switch | Motor Switch, Alarm Switch | |
Protection Device | Repeatable Thermal Protector | |
Shaft | Stainless Steel | |
Cable | 2m PVC or Rubber |
Item\Model | MEC-20 | |
Rating | 220V/50Hz | 110V/60Hz |
Max. Pump Head | 5.2m | 6m |
Max. Flow Rate | 4.2 L/min | |
Power Consumption | 55W | 58W |
Check Valve | Concealed inside | |
Inlet Up | 25mm inner size x 2 | |
Outlet | 10mm inner size | |
Size | 280x127x143mm |
Model | MEC-20 | |
Pumping Fluid | Type of Fluid | Clean water |
Fluid Temperature | 0~60℃ | |
Pump | Impeller | Semi-Vortex, PP+Glass Fiber |
Casing | ABS Plastic | |
Bearing | Ball Bearing | |
Pump | Type, Pole | Dry Type Submersible Induction Motor, 2-pole |
Insulation | Class B | |
Phase/Voltage | Single Phase/110, 200V-230V | |
Switch | Motor Switch, Alarm Switch | |
Protection Device | Repeatable Thermal Protector | |
Shaft | Stainless Steel | |
Cable | 2m PVC or Rubber |
Item\Model | MEC-20 | |
Rating | 220V/50Hz | 110V/60Hz |
Max. Pump Head | 5.2m | 6m |
Max. Flow Rate | 4.2 L/min | |
Power Consumption | 55W | 58W |
Check Valve | Concealed inside | |
Inlet Up | 25mm inner size x 2 | |
Outlet | 10mm inner size | |
Size | 280x127x143mm |
