| Quantity: | |
|---|---|
X-1000
Mepcato
on-Line
1 year
PP+Fiberglass
CE
Diaphragm Pressure Sensor
Black
Control on-off operation of submersible pump
Switch: 148x86x42mm; Socket: 130x55x52mm
50 ºC

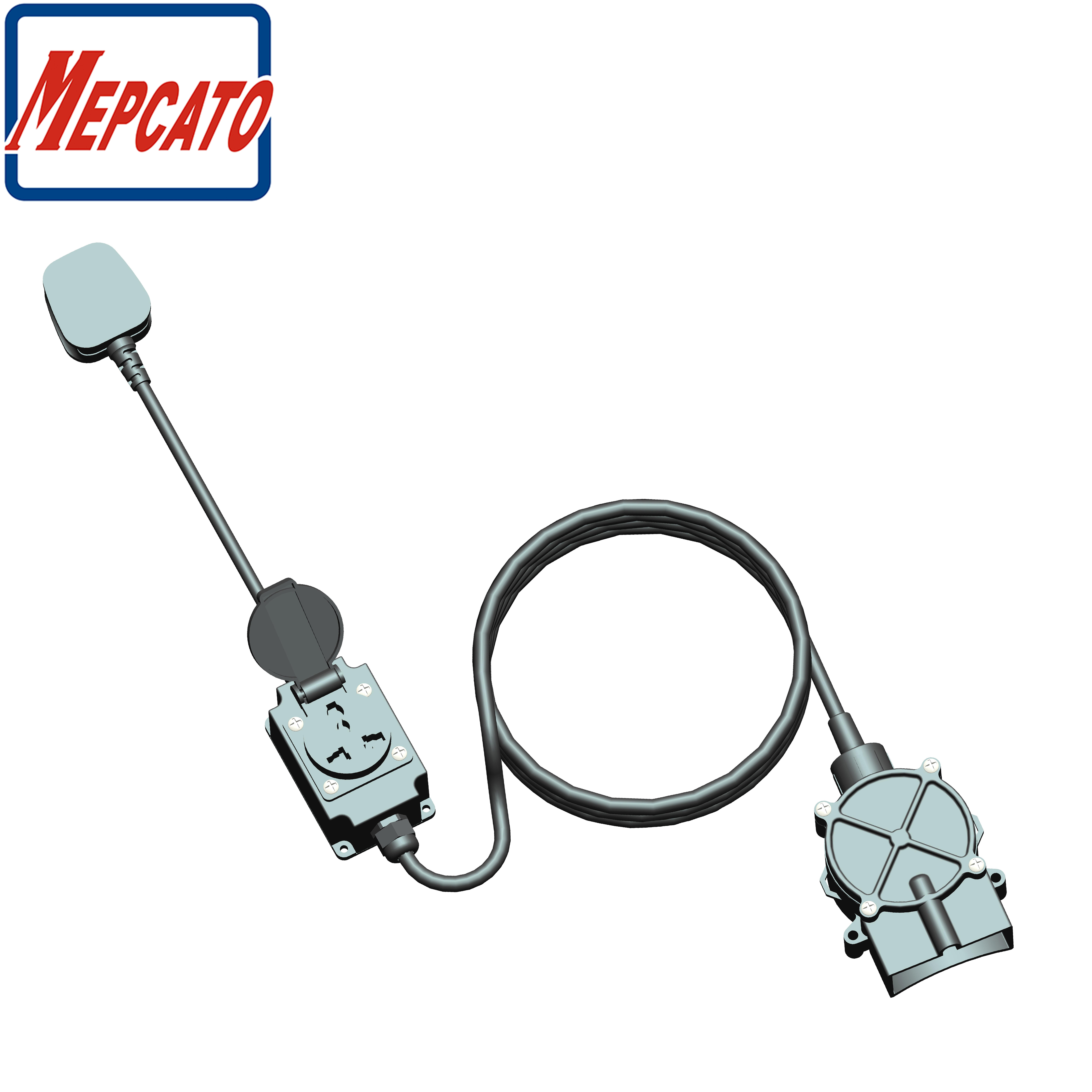

X1000 Extra Low Level Piggyback Diaphragm Switch
With 5.5m Power Cord and Power Socket
The remote switch X-1000 for submersible pumps can be used either by attaching it to Little Giant 5-MSP pump or used separately with other pumps to control on-off operation of the pump. The switch is activated by pressure to a diaphragm which activates a switch providing power to the pump.
Type: Diaphragm
Max. Amps Running: 10A
Voltage: 115V/230V
PVC Cord Length: 5.5m Connect Cord & 0.25m Power Cable
Max. Temperature: 50℃
Float and Socket Cover Material: PP+Fiberglass
Dimensions: Switch 148x86x42mm, Socket 130x55x52mm
Converts any manual pump to automatic operation, up through 1/3 HP
Easy Installation, with Quick Piggy-Back Plugs and Power Socket
When the water drops too low, the switch turns the pump off; when the water level comes back up the switch turns the pump back on
Match with Little Giant 5-MSP,start level 5cm-7.6cm,off level 1.27cm-3.8cm

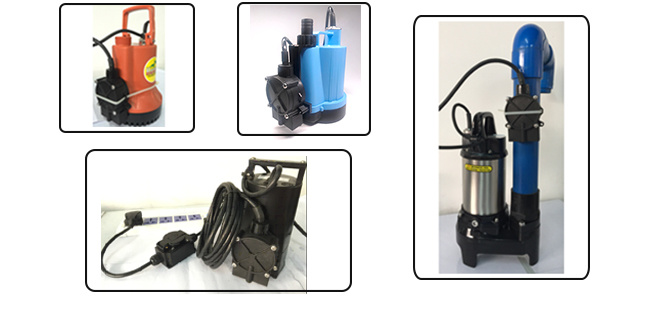

For installation on the Little Giant 5-MSP, 6-CIM-R or 6-CBM-R pumps
For installation on M-100, HOME, CSS-250, 50PS pumps
For universal installation, X-1000 can be attached to a pipe with the cable ties provided
Automatic power cord contains a breather tube. Be sure power cord is not pinched so that breather tube is obstructed. Non-restrictive air flow in breather tube is required for proper operation
Test the pump after all electrical connections have been made. Do not attempt to run the pump without water; this could result in permanent damage to the pump

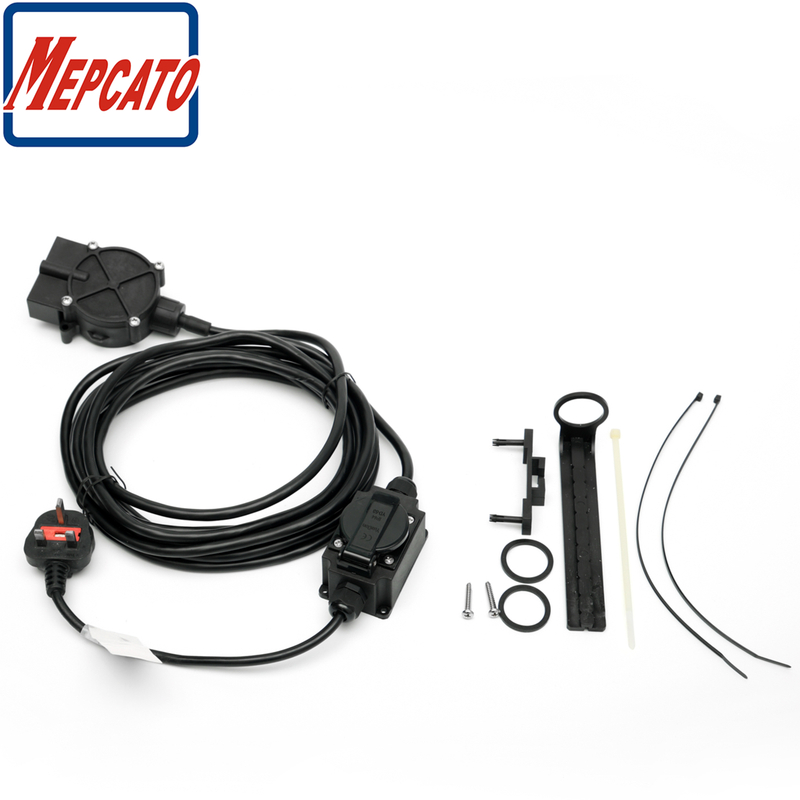

*Accessory Includes: (1) Pump Cut-Off Switch, (2) Mountain Screws, (2) Cable Ties, (1) M-100 Bracket
