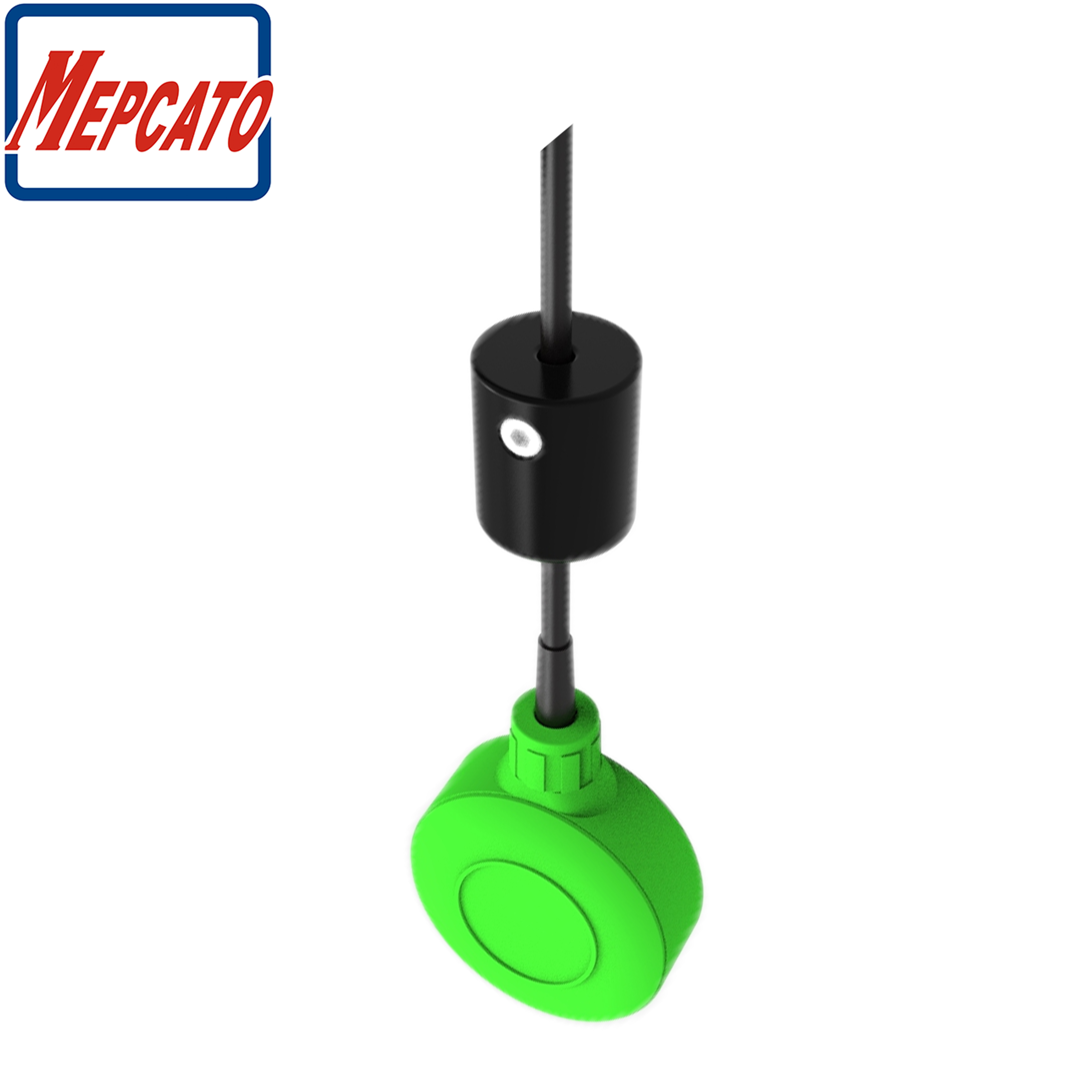

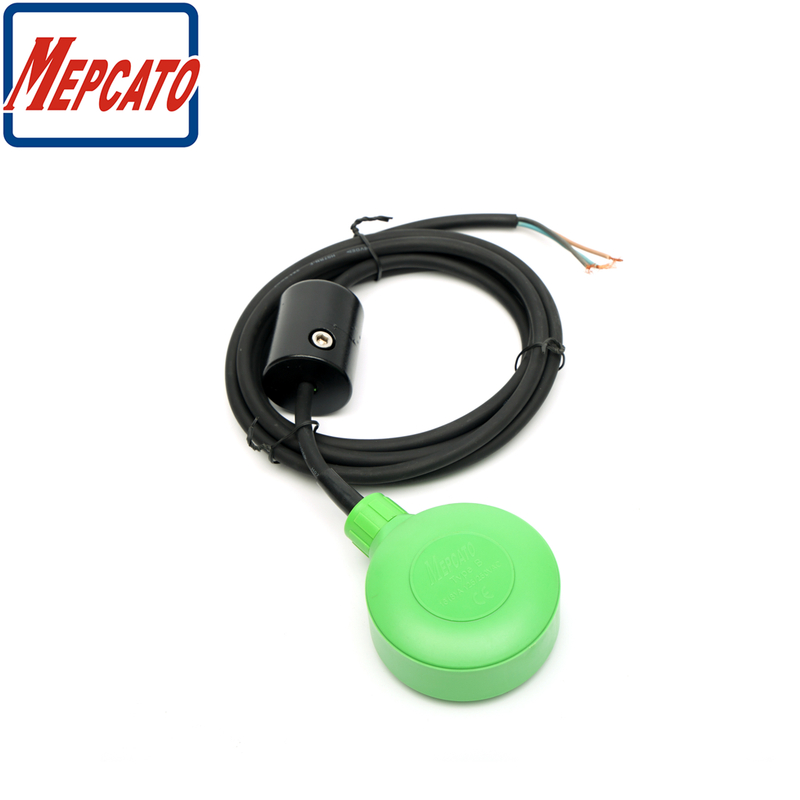

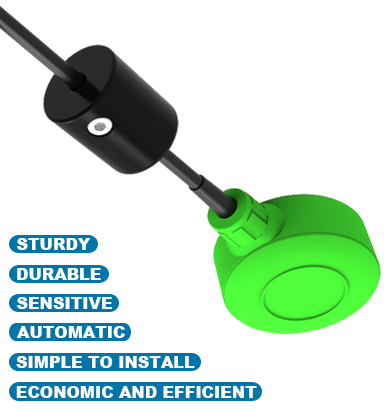

Type B Level Float Switch
Description
MEPCATO Type B level float switch is a utility and reliable liquid level sensor.
It is ideal for wiring and connection of all appliances and equipment that require the automatic contorl of water emptying or filling.

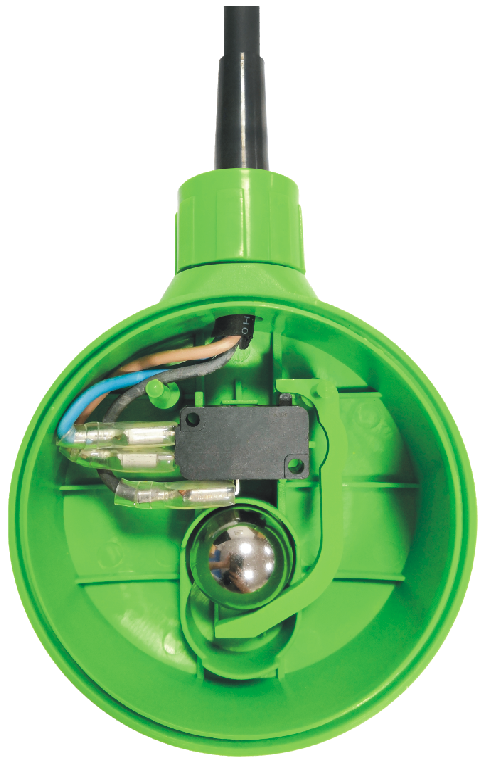

▪ The Type B comprises a micro switch incorporating a lever and ball bearing, all housed in a toughening ABS plastic shell that is resistant to shocks.
▪ The three-core cable is made of waterproof, anti-aging material, and withstanding temperture up to 90℃.
▪ Aluminum alloy counterweight is adjustable along the cable as required.
▪ Suitable for non-potable water, non-corrosive liquids.
▪ Filling up and emptying out tanks and cisterns, such as aquarium, fish farms, swimming pool.
▪ Level control and regulation.
▪ Pump, pumping stations.
▪ Level warning by initation of high or low level alarms.
Casing | ABS plastic |
Cable | H07RN-F 3x1.0mm2 |
Cabel Length | 3m, 5m, 10m as standard |
Counterweight | Aluminum Alloy, 280G |
Max depth | 10M |
Activation Angle | 45º |
Protection Grade | IP68 |
Working Temperature | Max +40ºC |
Power Supply | Max. 10(8)A, 125/250V AC |
Certification | CE |
When the float switch tilts to about 22º above or below the horizontal, it can provide contact of the mirco switch and quickly allow the pump to drain or fill any tank.
