Moving water efficiently from one place to another requires reliable and powerful technology. For industrial, agricultural, and residential applications, the centrifugal pump remains the standard solution. These dynamic devices power everything from massive municipal water supply systems to a simple garden pump in a residential backyard.
Understanding the mechanics behind this equipment can help you select the right model for your specific requirements. A high-quality water pump does more than just push fluid through a pipe; it relies on established principles of physics to maintain flow, pressure, and consistency over long periods.
This comprehensive guide will explain the inner workings of these machines. You will learn about their core mechanical components, the physics of fluid transfer, and the various specialized types available on the market today.
To understand how a centrifugal pump moves liquid, you must first look at the concept of rotational kinetic energy. The entire process relies on converting energy from an electric motor into hydrodynamic energy.
When the electric motor turns on, it rotates a central shaft. Attached to this shaft is a critical component called the impeller. As the impeller spins at high speeds, fluid enters the pump through the suction nozzle, moving directly into the center, or the "eye," of the impeller.
The rotating blades of the impeller catch the fluid and spin it outward. Centrifugal force pushes the water away from the center and toward the outer edges of the pump casing. This rapid outward movement gives the fluid a massive amount of kinetic energy, increasing its velocity significantly.
Velocity alone is not enough to move water effectively through long pipelines or up into tall buildings. The pump must convert this high-speed movement into pressure. This transformation happens inside the casing, specifically within a section known as the volute.
The volute is a curved funnel that increases in area as it approaches the discharge port. As the high-velocity fluid leaves the edge of the impeller and enters this expanding space, it begins to slow down. According to the principles of fluid dynamics, when the velocity of a fluid decreases in an enclosed space, its pressure increases. This newly pressurized fluid is then forced out of the discharge nozzle and into the piping system, ready to fulfill its purpose.
While the basic operating principle remains the same across different models, the physical components must be built to withstand immense pressure and constant moisture. A reputable water pump manufacturer will utilize highly durable materials to ensure these parts last for years without failure.
The Impeller: The primary moving part that accelerates the fluid. Depending on the application, impellers can be made from robust plastics like PPO, or highly durable stainless steel.
The Casing: The outer shell that contains the fluid and converts velocity into pressure. It must be perfectly sealed to prevent pressure loss.
The Shaft and Motor: The driving force behind the operation. Advanced models use permanent magnetic frequency conversion motors to maximize energy efficiency.
Mechanical Seals: These prevent water from leaking out of the casing along the rotating shaft. High-quality pumps frequently utilize premium Italian mechanical seals to provide double waterproof protection.
Because fluid transfer requirements vary wildly, a centrifugal pump manufacturer will typically produce a wide range of specialized models. Some situations require lifting water out of a deep well, while others involve circulating clean water through a delicate filtration system.
Understanding these variations makes it easier to choose the right equipment for your specific environment. Below is a breakdown of common pump types, their primary applications, and examples of specialized features.
Pump Category | Typical Applications | Key Features and Example Uses |
|---|---|---|
Pressure Boosting Pump | City mains water supply, apartment buildings, hotels | Utilizes inverter control and permanent magnetic motors to provide stable, constant water pressure across multiple floors. |

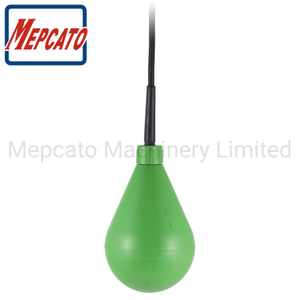

Sewage Water Pump / Dewatering Pump | Drainage, wastewater removal, emptying flooded areas | Submersible designs built with tough fiberglass resins; often equipped with a float switch for automatic operation in low water. |
Fish Pond Pump / Garden Pump | Koi ponds, horticultural irrigation, misting systems | Often available as a small pump with weather-proof plastic housing or as a stainless steel self-priming jet pump for continuous outdoor use. |
Selecting the correct model involves more than just matching specifications; it requires sourcing equipment from a trusted builder. The quality of the internal components dictates how long the pump will survive under continuous stress.
Partnering with a leading China centrifugal pump manufacturer, such as MEPCATO, provides access to advanced engineering at a competitive price point. Modern manufacturers integrate smart technology into their Water Pumps, such as touch-control electronic displays, built-in thermal protectors, and advanced inverter controls that reduce energy consumption by up to 20 percent.
Whether you need a massive horizontal multistage pump for an industrial facility or a small plastic electric submersible pump to manage a backyard swimming pool, evaluating the manufacturer's commitment to quality control is vital. Look for suppliers that conduct 100 percent testing on their production lines, ensuring that every unit can handle the specific demands of water transfer without failing.
A centrifugal pump is a marvel of engineering, transforming basic rotational energy into the powerful force needed to move liquids across vast distances. By utilizing spinning impellers and expanding casings, these machines provide a reliable solution for almost any fluid transfer challenge.
When you are ready to upgrade or install a new system, calculate your specific flow rate and head requirements carefully. Consider whether you need a specialized dewatering pump for drainage or a robust pressure boosting system for a residential building. By understanding exactly how this equipment operates, you can make an informed purchasing decision that ensures years of efficient, trouble-free water management.
