M-400A
Mepcato
on Line
1 Year
10m
330L/Min
Motor
ABS+PC
CE
Input: 620W Output: 400W
Submersible Pump
Plastic
5m with plug
Build-in Repeatable Thermal Protector
Orange
Single brown box
Powerful, compact
Mepcato
clean water, sea water, river water
0~40ºC
motor
available
sea fish breeding, water circulation, water drainage
China
2 inch
Mechanical Seal and Oil Seal

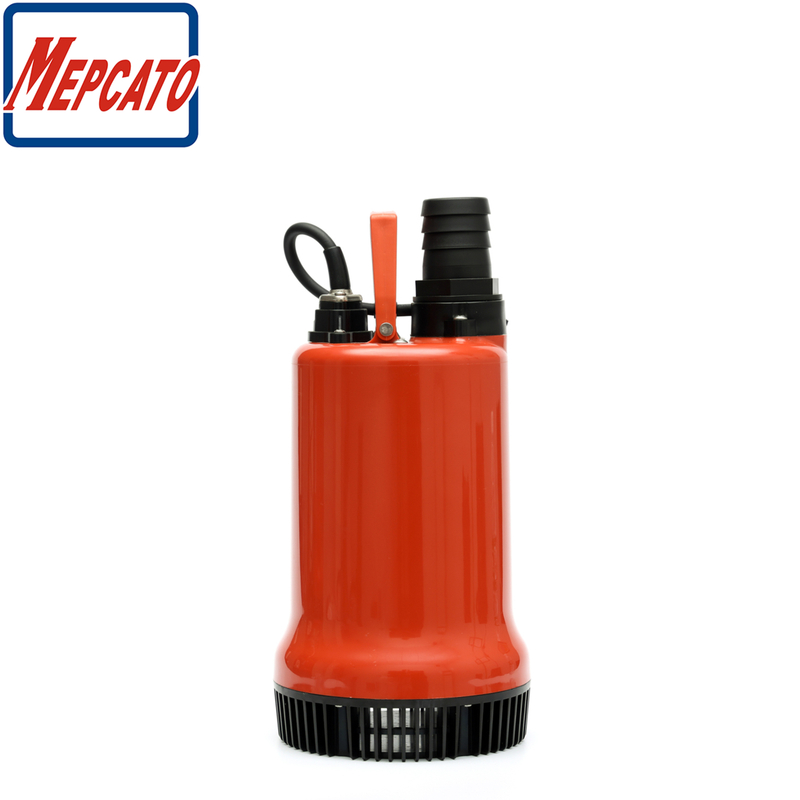

M-400 Series Submersible SEA WATER Pump
The application of compact and non-corrosive reinforced housing
Adopt Italy mechanical seal specially for sea water use
SUS316 motor housing and shaft for sea water corrosion resistance
Built-in motor thermal overload protector

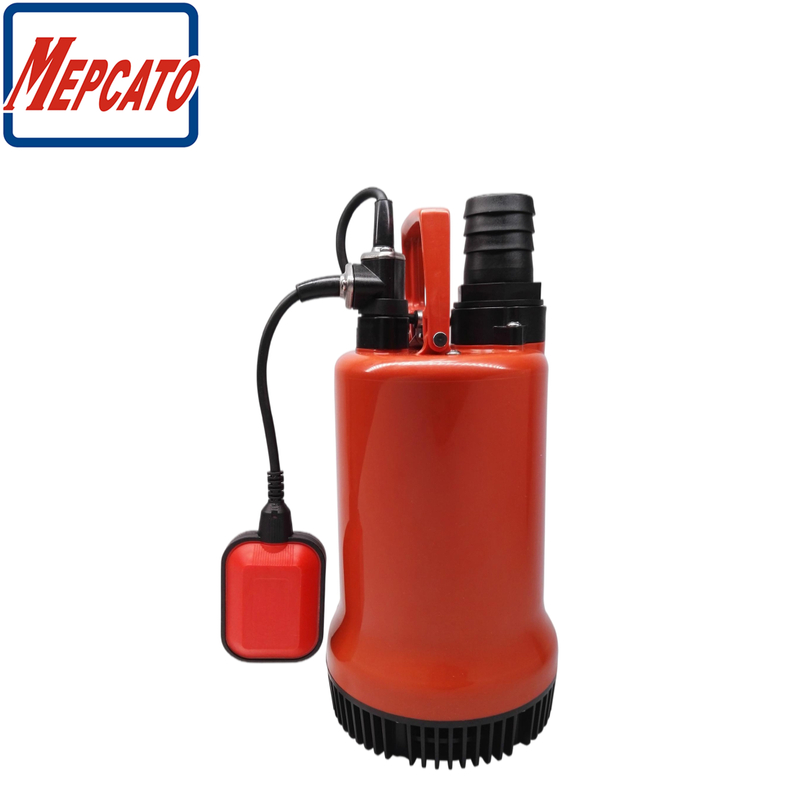

MF-400 with normal float switch; M-400A with vertical auto-manual float switch
M-400A auto-manual float switch:
M-400A switch: Automatic operation (A): The integrated float switch starts and stops the pump automatically when the indicator is positioned on "A".
Manual operation (M): Lift the knob positioning the indicator on "M",the pump will not have automatic function.
Suitable for sea fish breeding: aquaculture sites and marine equipment
Apply for circulate water in garden ponds, sprinkler for vegetation of pump
Ideal for drainage of flat surfaces: basement, cellar, rooftops, garages, pools
To drain the accumulated water for civil and architecture engineering
Fish Pond Pump
Sea Water Pump
Agriculture Pump
M-400 Series Submersible SEA WATER Pump
The application of compact and non-corrosive reinforced housing
Adopt Italy mechanical seal specially for sea water use
SUS316 motor housing and shaft for sea water corrosion resistance
Built-in motor thermal overload protector
MF-400 with normal float switch; M-400A with vertical auto-manual float switch
M-400A auto-manual float switch:
M-400A switch: Automatic operation (A): The integrated float switch starts and stops the pump automatically when the indicator is positioned on "A".
Manual operation (M): Lift the knob positioning the indicator on "M",the pump will not have automatic function.
Suitable for sea fish breeding: aquaculture sites and marine equipment
Apply for circulate water in garden ponds, sprinkler for vegetation of pump
Ideal for drainage of flat surfaces: basement, cellar, rooftops, garages, pools
To drain the accumulated water for civil and architecture engineering
Fish Pond Pump
Sea Water Pump
Agriculture Pump
Model | M-400 Series | |
Pumping Fluid | Type of Fluid | Clean Water and Sea Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | PPO+Fiberglass |
Shaft Seal | Mechanical Seal+Oil Seal | |
Casing | ABS+PC | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 5m with Plug |
Model | Input Power | Output Power | Outlet | Voltage | Max Flow | Max Head | L x W x H | ||
Watt | Inch | V/Hz | L/min | m | cm | cm | cm | ||
M-400 (Manual) | 620 | 400 | 2 | 220V/50Hz | 330 | 10 | 19 | 13.9 | 39.6 |
MF-400 (Auto) | 20 | 19 | 39.6 | ||||||
M-400A (Auto/Manual) | 24.2 | 19 | 39.6 |
Model | M-400 Series | |
Pumping Fluid | Type of Fluid | Clean Water and Sea Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | PPO+Fiberglass |
Shaft Seal | Mechanical Seal+Oil Seal | |
Casing | ABS+PC | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 5m with Plug |
Model | Input Power | Output Power | Outlet | Voltage | Max Flow | Max Head | L x W x H | ||
Watt | Inch | V/Hz | L/min | m | cm | cm | cm | ||
M-400 (Manual) | 620 | 400 | 2 | 220V/50Hz | 330 | 10 | 19 | 13.9 | 39.6 |
MF-400 (Auto) | 20 | 19 | 39.6 | ||||||
M-400A (Auto/Manual) | 24.2 | 19 | 39.6 |
