CS-2.75S
Mepcato
on-Line
1 Year
10-30m
>400 L/min
Motor
Stainless Steel+Cast Iron
CE
5m rubber
clean water, salt water and sewage water
3 inch
Double Face Mechanical Seal +Oil Seal

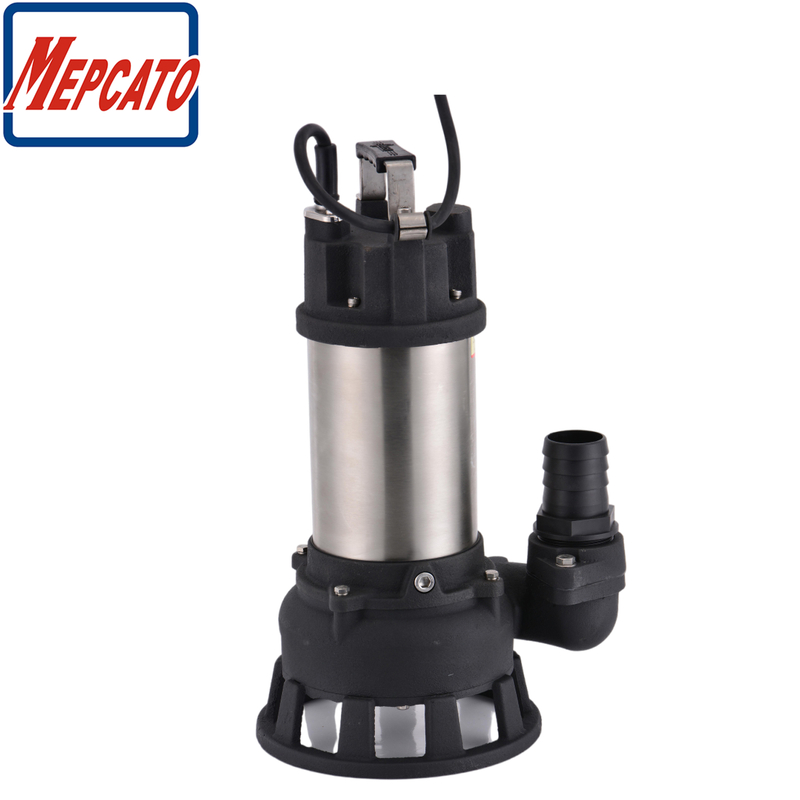

CS Series Sewage Submersible Pump
Special high flow design can achieve the maximum efficiency in sewage and light mud
Gary cast iron impeller with tungsten alloy cutting knife, it is easy to cut up the impurity like branches, paper, etc. and outflow it with sewage
Italy imported double-faced mechanical sea and oil seal to make waterproof protection
Detachable design between motor and pump is easy for maintenance
Optional float switch for CSF models
■ Suitable for clean water, salt water and sewage water
■ Water supply and disposal for construction site
■ Water circulation and water change for crop farming, forestry and fishery use
■ The extraction of water accumulation for basement, food factory waste water and industrial waste water
■ Equipment use for aquarium, landscape waterfall, water drainage and filtration
CS Series Sewage Submersible Pump
Special high flow design can achieve the maximum efficiency in sewage and light mud
Gary cast iron impeller with tungsten alloy cutting knife, it is easy to cut up the impurity like branches, paper, etc. and outflow it with sewage
Italy imported double-faced mechanical sea and oil seal to make waterproof protection
Detachable design between motor and pump is easy for maintenance
Optional float switch for CSF models
■ Suitable for clean water, salt water and sewage water
■ Water supply and disposal for construction site
■ Water circulation and water change for crop farming, forestry and fishery use
■ The extraction of water accumulation for basement, food factory waste water and industrial waste water
■ Equipment use for aquarium, landscape waterfall, water drainage and filtration
Model | CS Series | |
Pumping Fluid | Type of Fluid | Clean Water and Sewage Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, Tungsten alloy cast iron |
Shaft Seal | Italy Double Face Mechanical Seal+Oil Seal | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 5m with Plug |
Model | Input | Output | Outlet | Voltage | Max Flow | Max Head | L x W x H | Weight | Max | ||
kW | Inch | V/Hz | L/min | m | cm | cm | cm | kg | mm | ||
CS-2.75S | 1 | 0.75 | 2 | 220V/50Hz | 460 | 12 | 27.5 | 22 | 47 | 21.3 | 15 |
CS-2.75S/3G | 1 | 0.75 | 3 | 650 | 12 | 32 | 22 | 47 | 21.3 | 15 | |
CS-2.110S | 1.3 | 1.1 | 2 | 620 | 15 | 27.5 | 22 | 49 | 24 | 15 | |
CS-2.110S/3G | 1.3 | 1.1 | 3 | 900 | 13 | 32 | 22 | 49 | 25 | 15 | |
CS-2.150S | 1.8 | 1.5 | 2 | 700 | 17 | 27.5 | 22 | 52 | 25 | 15 | |
CS-2.150S/3G | 1.8 | 1.5 | 3 | 1170 | 15 | 32 | 22 | 52 | 26.1 | 15 |
Model | CS Series | |
Pumping Fluid | Type of Fluid | Clean Water and Sewage Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, Tungsten alloy cast iron |
Shaft Seal | Italy Double Face Mechanical Seal+Oil Seal | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 5m with Plug |
Model | Input | Output | Outlet | Voltage | Max Flow | Max Head | L x W x H | Weight | Max | ||
kW | Inch | V/Hz | L/min | m | cm | cm | cm | kg | mm | ||
CS-2.75S | 1 | 0.75 | 2 | 220V/50Hz | 460 | 12 | 27.5 | 22 | 47 | 21.3 | 15 |
CS-2.75S/3G | 1 | 0.75 | 3 | 650 | 12 | 32 | 22 | 47 | 21.3 | 15 | |
CS-2.110S | 1.3 | 1.1 | 2 | 620 | 15 | 27.5 | 22 | 49 | 24 | 15 | |
CS-2.110S/3G | 1.3 | 1.1 | 3 | 900 | 13 | 32 | 22 | 49 | 25 | 15 | |
CS-2.150S | 1.8 | 1.5 | 2 | 700 | 17 | 27.5 | 22 | 52 | 25 | 15 | |
CS-2.150S/3G | 1.8 | 1.5 | 3 | 1170 | 15 | 32 | 22 | 52 | 26.1 | 15 |
