| Quantity: | |
|---|---|
UPLIFT 40/70
Mepcato
on-Line
1 Year
11m

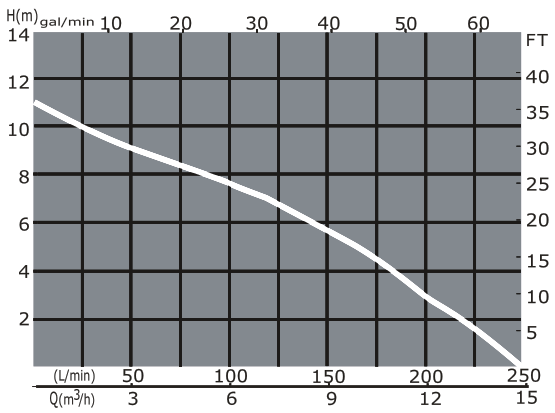

250 L/min
Motor
Stainless Steel+plastic
CE
5m pvc or rubber
clean water, salt water and sewage water
2 inch
Italy Double Face Mechanical Seal

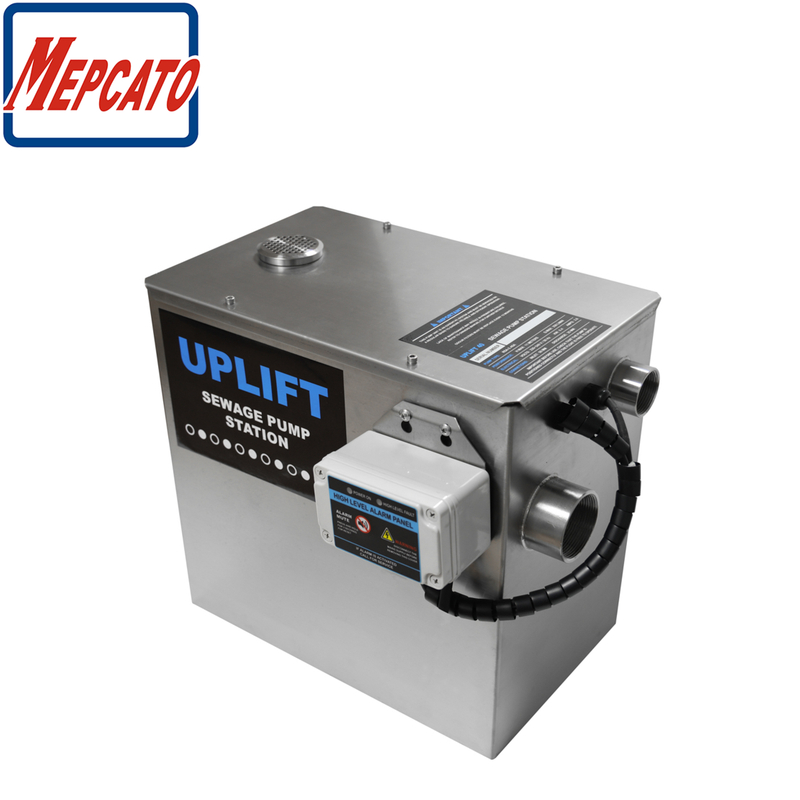

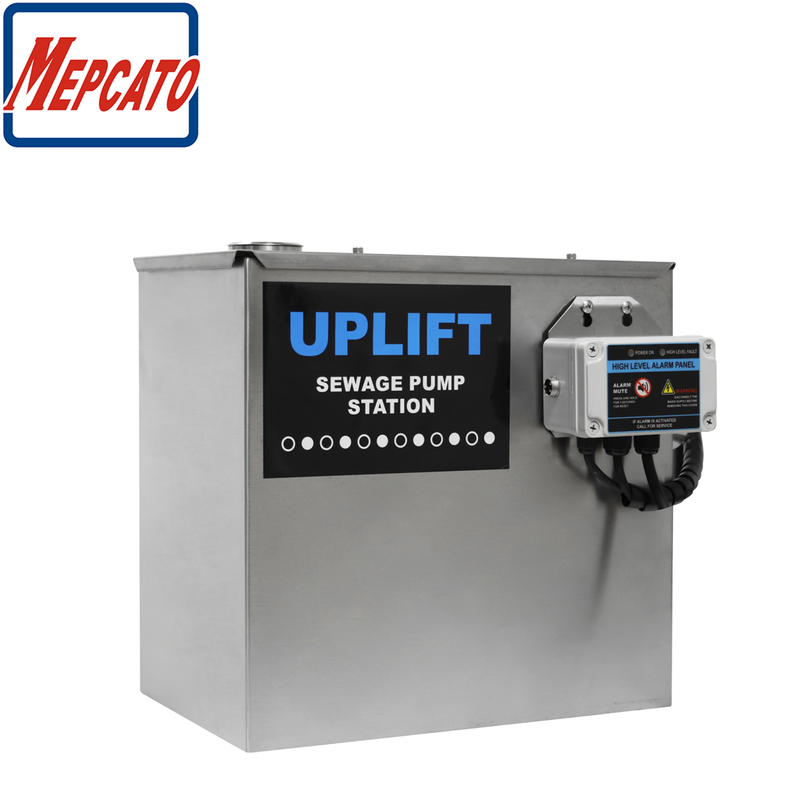

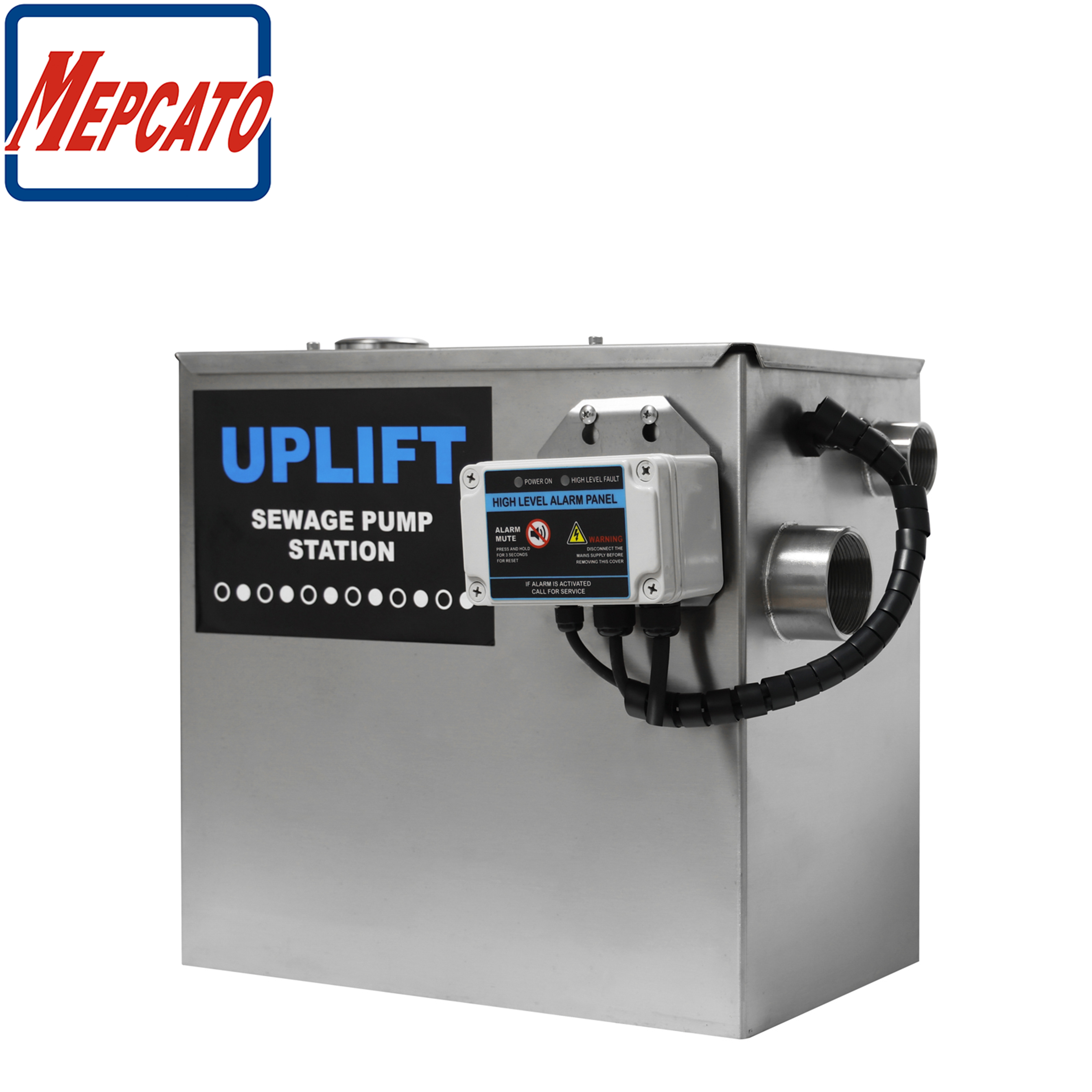

UPLIFT 40/70 Undersink Pump

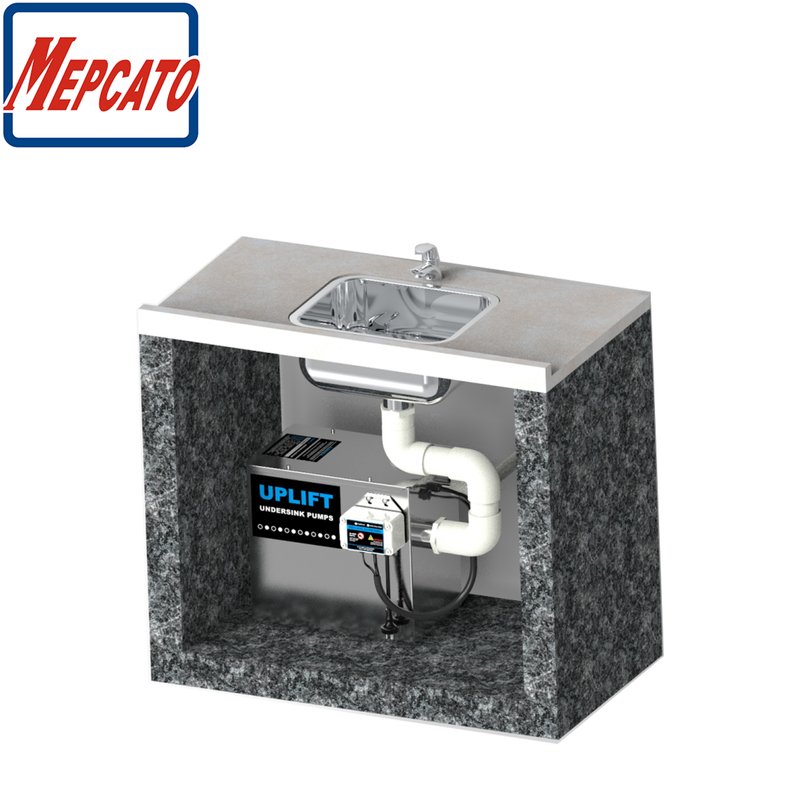

The UPLIFT undersink pump is an automatic system designed to handle sink and basin waste where it is not possible to achieve gravity fall to sewer. It incorporates a small electric submersible pump. The tank receives influent liquid from the basin or sink. As the level in the tank rised, that float switch rises & activates the pump. The pump then discharges the liquid causing the level to fall thus turning the pump off.
STAINLESS STEEL CONSTRUCTION
Durability is the key with high temperature and corrosion resistant options available for maximum service life.
HEAVY DUTY PUMP
Powerful performance easily handling small solids, plus providing the lift for high heads and long discharge pipe runs that do not run on grade.
SMART DESIGN
A compact design that comes fully assembled, with all connections on one face giving best use of space and easy installation.
PRE-WIRED AND TESTED
Single trade installation with a 1.5 meter power cable and plug, for connection to standard socket outlet.
ODOUR FILTER
Activated carbon can reduce the smelly and keep the air clean.
HIGH LEVEL ALARM
Provides an audible and visual high level warning, including a Voltage Free (BMS) alarm output, available on the UPLIFT SYSTEM.
Restaurants
Hotels
Schools
Office Amenities
Cleaners Sinks
Medical Surgeries
Laboratories
Domestic Extensions
Renovations
Kiosks
Anywhere gravity discharge is infeasible
UPLIFT 40/70 Undersink Pump
The UPLIFT undersink pump is an automatic system designed to handle sink and basin waste where it is not possible to achieve gravity fall to sewer. It incorporates a small electric submersible pump. The tank receives influent liquid from the basin or sink. As the level in the tank rised, that float switch rises & activates the pump. The pump then discharges the liquid causing the level to fall thus turning the pump off.
STAINLESS STEEL CONSTRUCTION
Durability is the key with high temperature and corrosion resistant options available for maximum service life.
HEAVY DUTY PUMP
Powerful performance easily handling small solids, plus providing the lift for high heads and long discharge pipe runs that do not run on grade.
SMART DESIGN
A compact design that comes fully assembled, with all connections on one face giving best use of space and easy installation.
PRE-WIRED AND TESTED
Single trade installation with a 1.5 meter power cable and plug, for connection to standard socket outlet.
ODOUR FILTER
Activated carbon can reduce the smelly and keep the air clean.
HIGH LEVEL ALARM
Provides an audible and visual high level warning, including a Voltage Free (BMS) alarm output, available on the UPLIFT SYSTEM.
Restaurants
Hotels
Schools
Office Amenities
Cleaners Sinks
Medical Surgeries
Laboratories
Domestic Extensions
Renovations
Kiosks
Anywhere gravity discharge is infeasible
