Most traditional water systems sit above the liquid they are moving, using suction to pull fluid upward. A submersible pump takes the exact opposite approach. By sitting completely underwater, this clever device pushes fluid upward, saving energy and preventing common mechanical issues like cavitation.
Understanding the mechanics behind these machines can save you time, money, and headaches when you encounter flooding or need to manage water flow on a property. They are essential tools for a massive variety of industries, ranging from residential plumbing to large-scale agriculture.
This guide explains the inner workings of these devices, the different variations available on the market, and how to select the perfect model for your specific water removal needs.
At a fundamental level, a submersible pump features a hermetically sealed motor closely coupled to the pump body. The watertight enclosure completely protects the internal electrical components from the surrounding fluid. Because the whole unit sits underwater, it never has to deal with the strain of drawing fluid into the system.
When you supply power to the unit, the electric motor spins an internal component called an impeller. The impeller features curved blades that rotate rapidly, creating centrifugal force. This force pushes the water outward and upward through the discharge outlet. Since the pump uses the surrounding water to cool its motor, it runs highly efficiently without overheating.
Unlike a surface-mounted Self-Priming Pump that needs to create a vacuum to draw water into its casing before it can operate, a fully submerged unit is always primed. The natural pressure of the surrounding water constantly feeds fluid into the pump body. This saves energy and makes the machine much more reliable for immediate, on-demand drainage.
Different situations require different types of Water Pumps. Manufacturers design specific models to handle different water types, debris sizes, and flow rates. Here is a breakdown of the most common variations.
If you need to empty a flooded basement, drain a small pool, or move clean rainwater, a standard dewatering pump is your best option. These models focus on extracting water down to the lowest possible level.
For light residential tasks, a Small Pump is highly effective and easy to store. For example, some specialized utility pumps can extract residual water down to just three millimeters, effectively drying out flat surfaces without requiring massive industrial equipment.

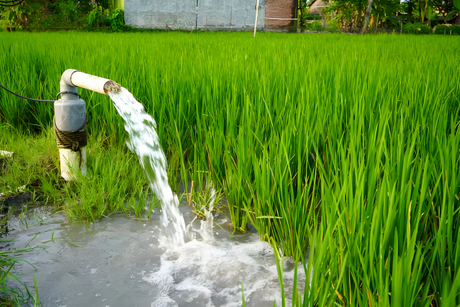

Farms, water features, and crop fields require continuous, reliable water circulation. A dedicated Fish Pond Pump or Garden Pump usually features corrosion-resistant materials like stainless steel to withstand constant exposure to outdoor elements and even salt water. These units provide high flow rates to ensure fish habitats remain oxygenated and agricultural fields receive adequate irrigation.

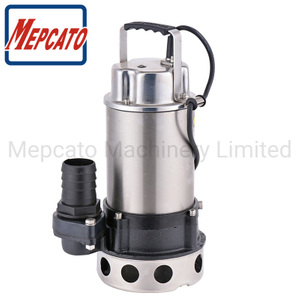

When dealing with industrial wastewater or heavily contaminated fluids, a standard model will easily clog. In these situations, you need a specialized dirty water pump. Sewage submersibles often incorporate heavy-duty materials like cast iron and feature cutting knives made from tungsten alloy. These cutters chop up solid debris like branches or paper, allowing the slurry to flow freely through the discharge pipe without jamming the impeller.
Real-World Examples from a Leading Manufacturer
To better understand how these specifications translate into actual products, we can look at the lineup from Mepcato. As a prominent China submersible pump brand, they engineer various models tailored to specific drainage needs.
Below is a comparison table outlining three distinct models from this established submersible pump manufacturer.
Model | Primary Application | Max Flow (L/min) | Max Head (m) | Key Materials | Special Features |
|---|---|---|---|---|---|
MU-100 | Residual dewatering | 80 | 6.5 | PP + Fiberglass | Pumps down to 3mm, portable, built-in thermal protector |
50PSF-2.75 | Garden & Fish pond | 530 | 13.0 | Stainless Steel | Italian mechanical seals, automatic float switch |
CS-2.75S | Sewage & dirty water | 460 | 12.0 | Stainless Steel & Cast Iron | Tungsten alloy cutter, handles solids up to 21.3mm |
This compact unit requires only 100 watts of output power and weighs very little, making it highly portable. It is perfect for home water transfer, aquarium drainage, and emergency flood control. Because the casing uses PP and fiberglass alongside an SS304 stainless steel motor shaft, it strongly resists corrosion from salt water.
Designed for heavy continuous duty, this 1HP model excels in landscape fish ponds, waterfalls, and agricultural water recycling. It moves a massive 530 liters of water per minute. The internal oil chamber lubrication and double-sided Italian mechanical seals guarantee a long lifetime even under demanding 24-hour operation.
When handling raw sewage or industrial wastewater, the CS-2.75S steps up to the plate. It combines a durable stainless steel casing with a heavy-duty cast iron impeller. The built-in tungsten alloy cutter effortlessly slices through solid impurities, ensuring the system continues to pump smoothly even when confronted with challenging debris.
While these machines are famously durable, they still require basic care to maximize their lifespan. Always inspect the power cable for cuts or abrasions before submerging the unit. A damaged cable poses a severe electrical hazard.

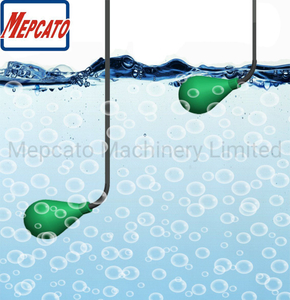

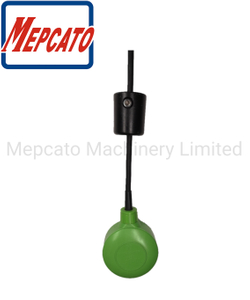

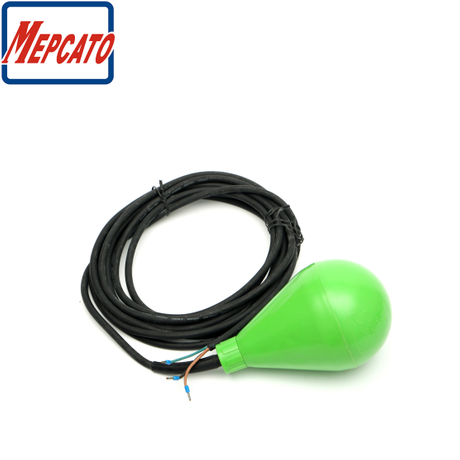

You should also regularly check the pump inlet and the impeller area. Even with models designed for dirty water, clearing out accumulated sludge and rocks prevents the motor from working harder than necessary. For pumps equipped with a float switch, ensure the switch moves freely. If debris traps the float switch in the "on" position, the pump might run dry and eventually burn out its motor.
Moving water rapidly and safely does not have to be a complicated process. By harnessing the power of centrifugal force directly at the source, a well-chosen submersible unit will keep your basement dry, your crops watered, and your wastewater moving without a hitch.
Take a moment to assess the specific requirements of your property. Determine whether you need to handle clean water, heavy solids, or continuous high-volume circulation. If you want to explore high-quality options tailored to your specific application, contact a reliable manufacturer to find the ideal pump for your next project.
