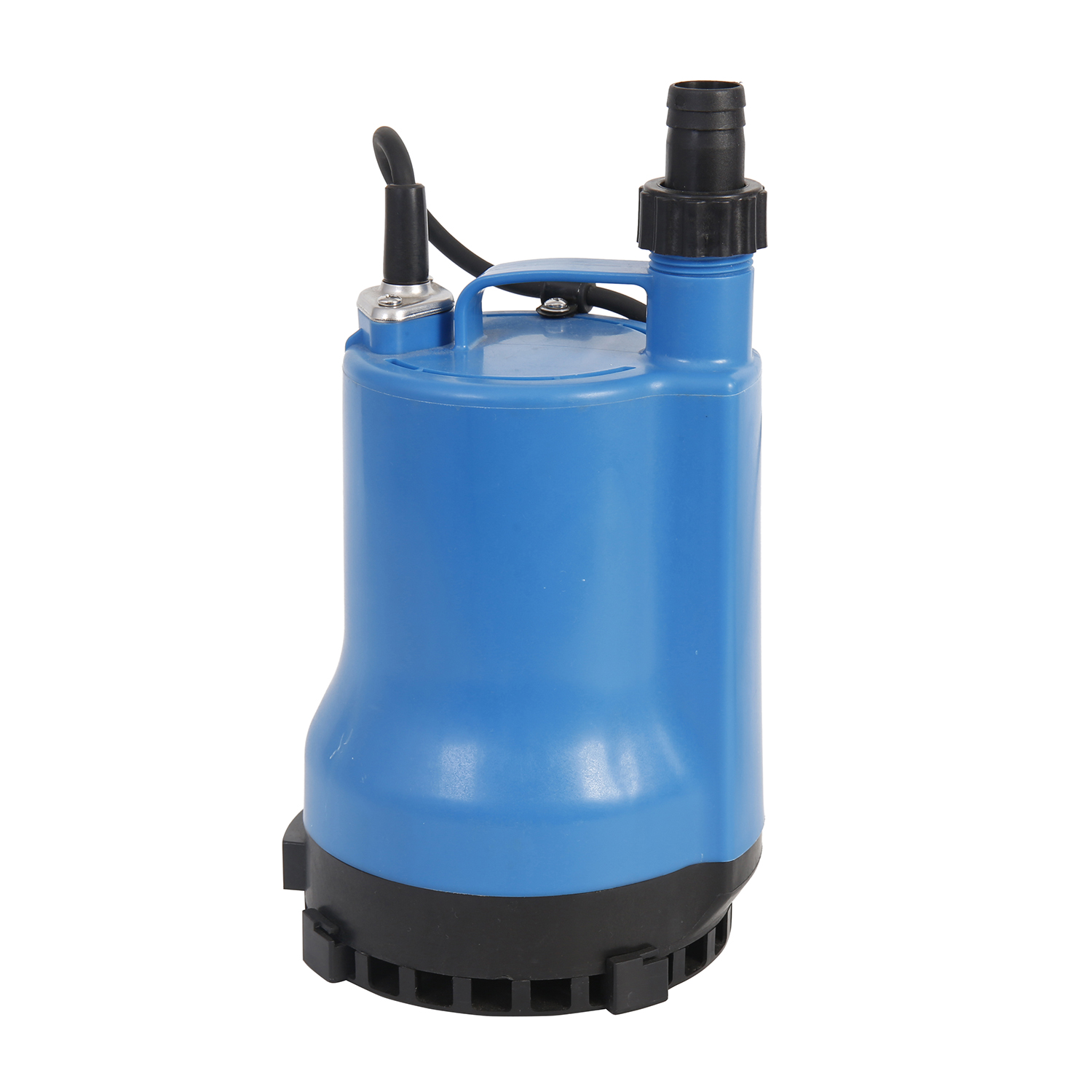

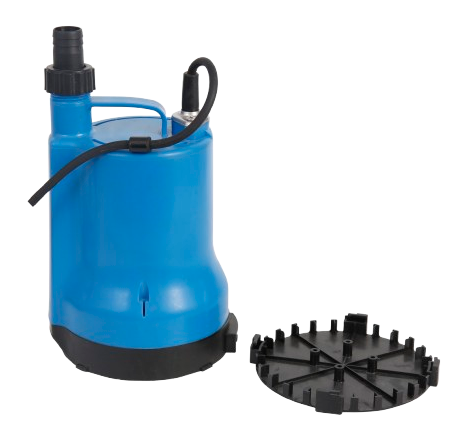

MU-100 Residue Drainage Submersible Utility Pump

PRODUCTS

You are here: Home » Products » MU-100 Residue Drainage Submersible Utility Pump

Model		MU-100	MU-180
Discharge Bore	mm	19; 25
	Inch	3/4; 1
Motor Power	W	100	180
Pumping Fluid	Type of Fluid	Clean water, salt water
	Fluid Temperature	0~40℃
Pump	Impeller	Semi-vortex, PPO
	Shaft Seal	Double Face Mechanical Seal+Oil Seal
	Casing	PP+Fiber Glass
	Bearing	Deep Groove Ball Bearings
Motor	Type, Pole	Dry Type Submersible Induction Motor, 2-Pole
	Insulation	Class B
	Phase/Voltage	Single phase/110V,220-240V
	Starting Method	Capacitor Run
	Protection Device (Build-in)	Repeatable Thermal Protector
	Lubricant	Turbine Oil VG32
	Shaft	SS304
	Cable	3m with Plug
