| Quantity: | |
|---|---|
Type A
Mepcato
on-Line
1 year
PP+Fiberglass
CE
float switch
Orange
Control water level
40 ºC

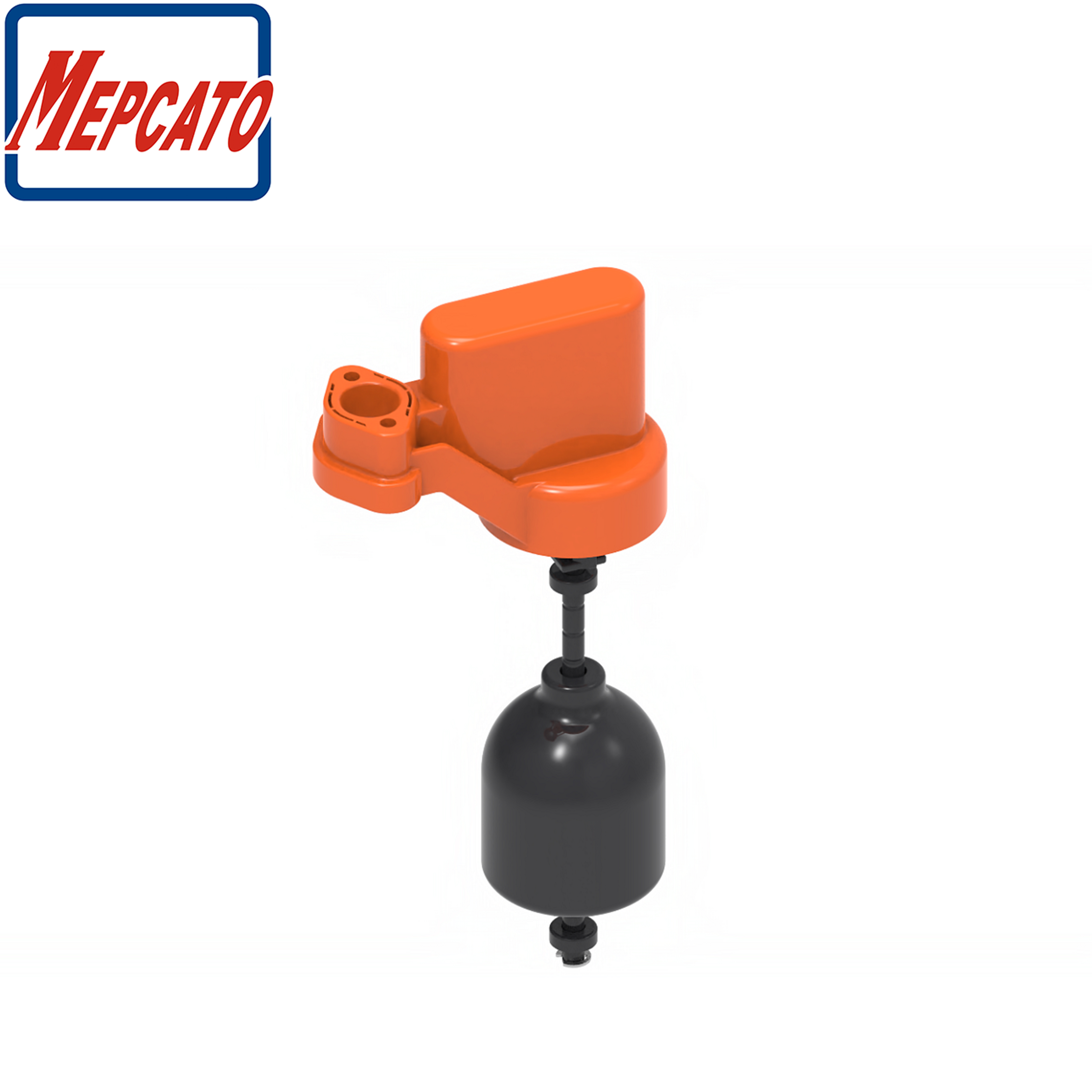

Type A Vertical Float Switch
● Type A Vertical level regulator suitable for narrow space where regular floats do not have enough moving space.

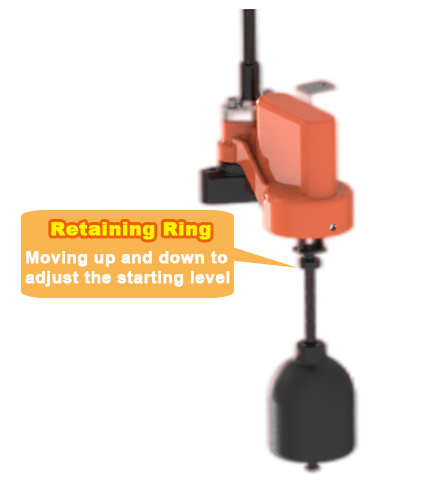

● Allows to adjust the minimum and maximum starting water level.
● Suitable to control the water level in clean water, sewage water systems.
| Casing | PP+FG |
| Cable | H07RN-F/2GX1.0mm2 |
| Cable Length | 0.5m (attached on the pump) 3m, 5m, 10m (as external use) |
| Max depth | 10m |
| Protection Grade | IPX8 |
| Working Temperature | Max +40ºC |
| Power Supply | Max. 16(4)A，125V250V AC |
Type A Vertical Float Switch
● Type A Vertical level regulator suitable for narrow space where regular floats do not have enough moving space.
● Allows to adjust the minimum and maximum starting water level.
● Suitable to control the water level in clean water, sewage water systems.
| Casing | PP+FG |
| Cable | H07RN-F/2GX1.0mm2 |
| Cable Length | 0.5m (attached on the pump) 3m, 5m, 10m (as external use) |
| Max depth | 10m |
| Protection Grade | IPX8 |
| Working Temperature | Max +40ºC |
| Power Supply | Max. 16(4)A，125V250V AC |
