| Quantity: | |
|---|---|
Type C Electronic Level Regulator
Mepcato
on-Line
1 year
PP+Fiberglass
CE
liquid Sensor
Black
Control on-off operation of submersible pump
Switch: 148x86x42mm; Socket: 130x55x52mm
50 ºC

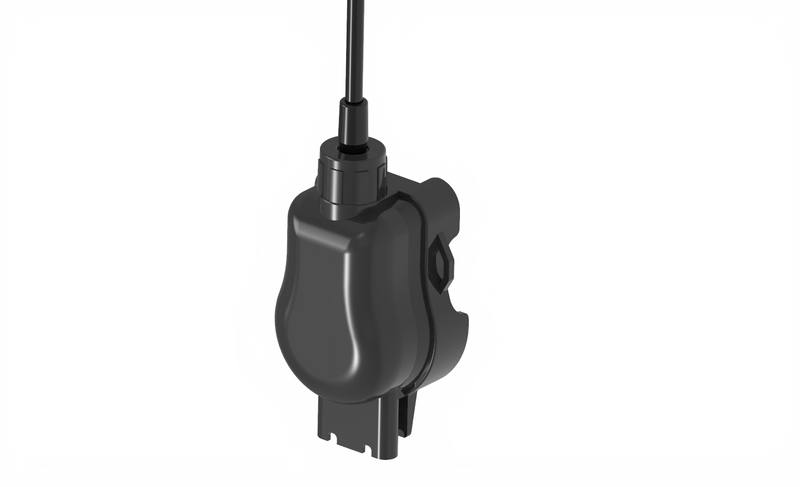

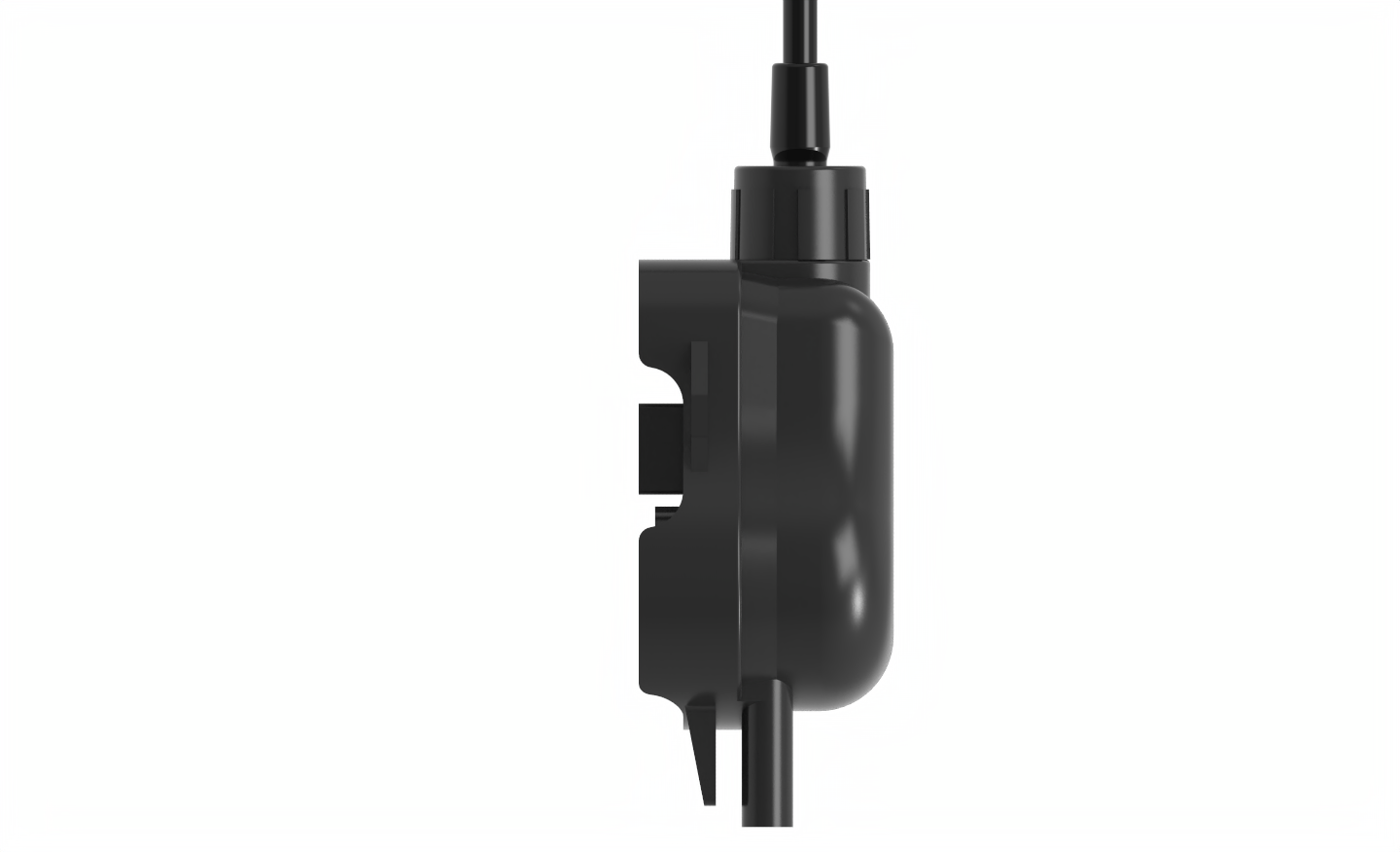

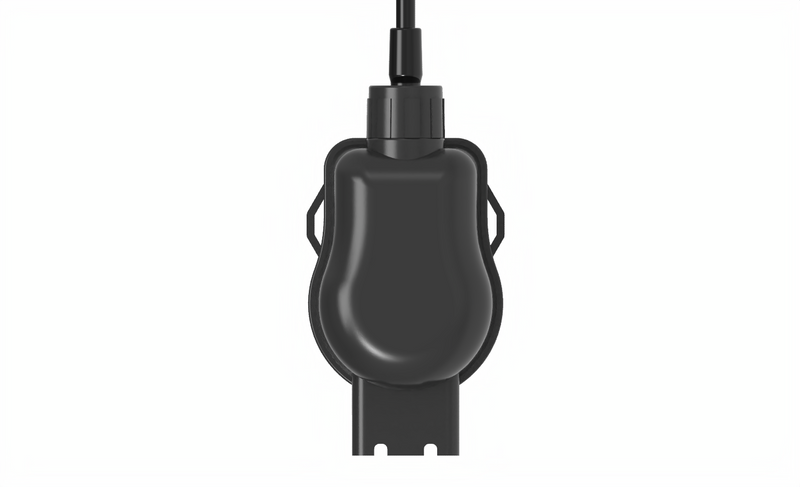

Type-C Electronic Level Regulator
With Power Cord and Power Socket
The Type-C electronic level regulator for submersible pumps can be used to all submersible pumps to control on-off operation of the pump. The switch is activated by an internal liquid sensor, which activates the switch of the pumping device when the sensor comes into contact with the liquid.
Type-C electronic level regulator is designed to work in clean water, rainwater and domestic waste water.

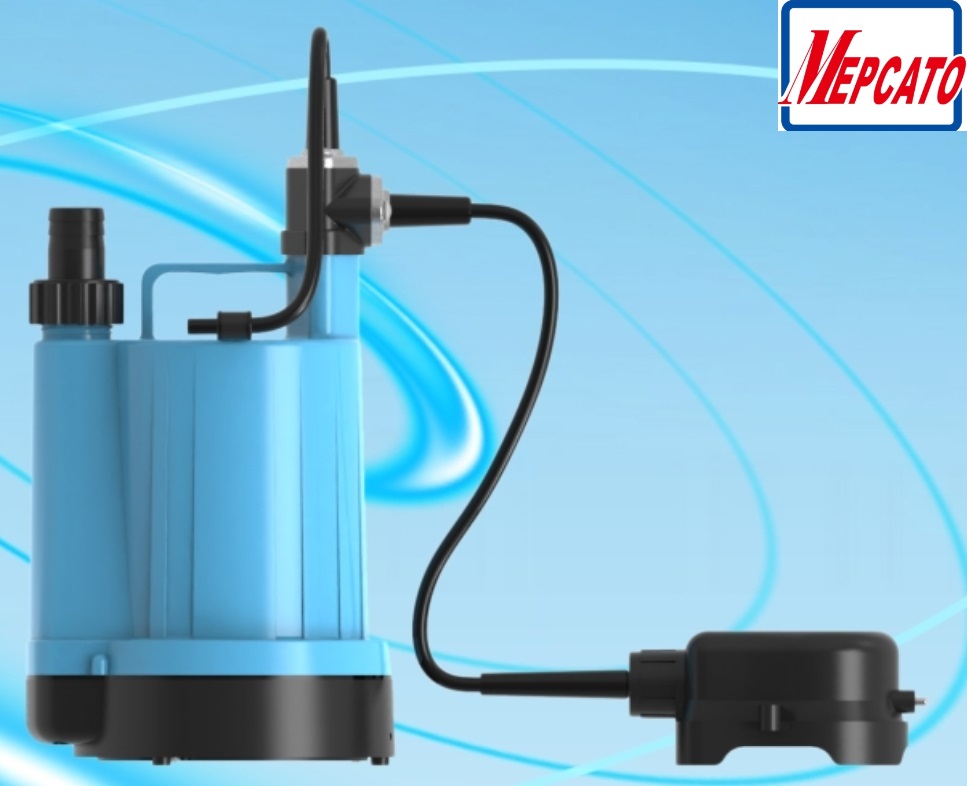

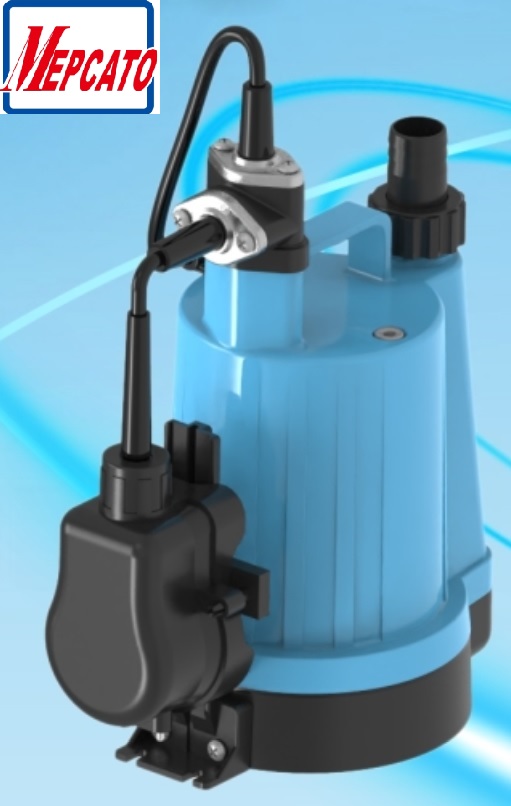

Assembled with low level submersible pumps or other submersiblepumps, it can automatically control water level and pump water.(Note: For lowest residual water level drainage, the levelregulator mustbe assembled with low level submersible pumps.)
lt can detect the presence of water at 25.5mm from the floor.

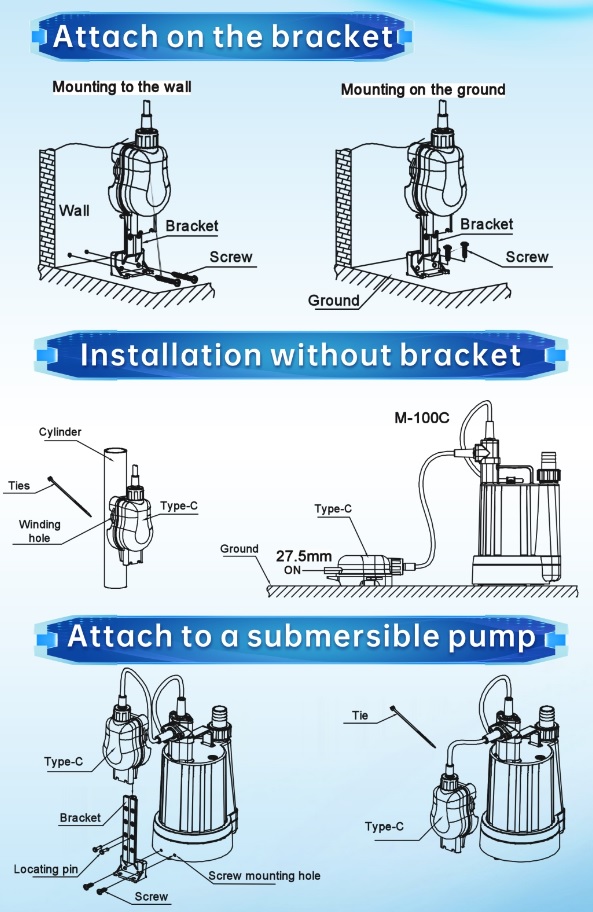

Optional bracket for fixing the floater
Converts any manual pump to automatic operation,
Easy Installation, with Quick Plugs and Power Socket
When the water drops too low and the sencer cannot detect the water, the switch turns the pump off; when the water level comes back up the switch turns the pump back on.
The clamp on the bracket allows the adjustment start level 25mm-76mm, off level 3mm.
*Accessory Includes:
