MF-100
Mepcato
on-Line
1 Year
6.5m
95L/Min
Motor
PP+Fiberglass
CE
Input: 130W Output: 100W
Plastic
3.5m
blue
4 pc in a brown carton
portable, light, utility
Residual water drainage, dewatering
Mepcato
95L/min
clean water and slight dirty water
0~40ºC
motor
available
Build-in repeatable thermal protector
water transfer, water drainage, dewatering, irrigation
16x13.9x27cm
95L/min
China
3/4inch, 1inch
40 ºC
100W
Mechanical Seal and Oil Seal

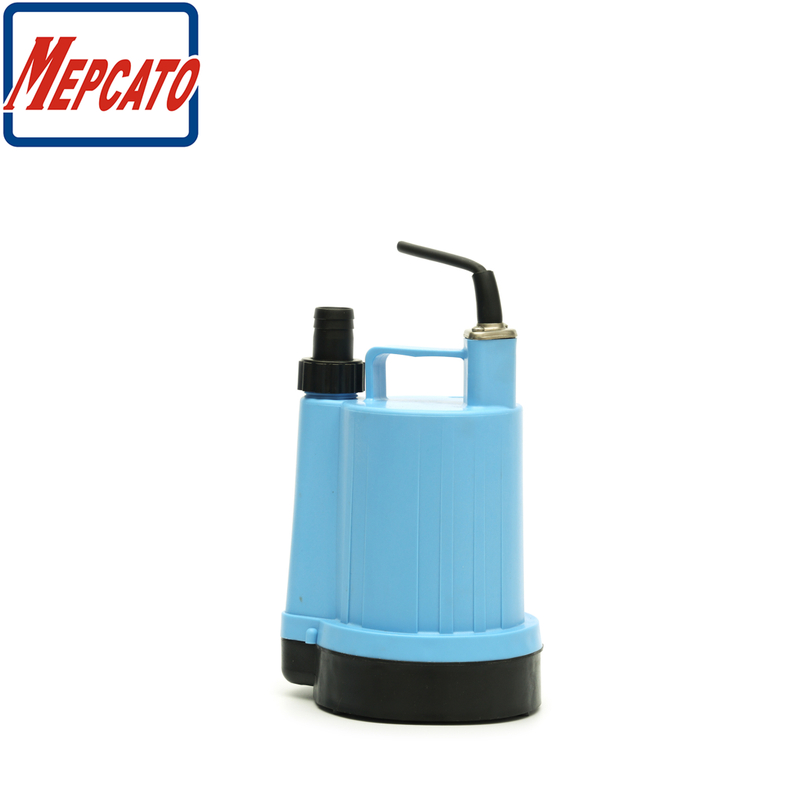

M-100 Low Level Submersible Utility Pump
Suitable for clean water, slight dirty water and marine equipment
For domestic emergencies where a small area must be drained to the lowest level possible
Ideal for complete drainage of flat surfaces: basement, cellar, rooftops, garages, pools
Apply to fish tank and water tank cleaning
Features
Pumps residue water down to 2 mm
New A type of Auto-Manual switch can match with M-100 or M-400

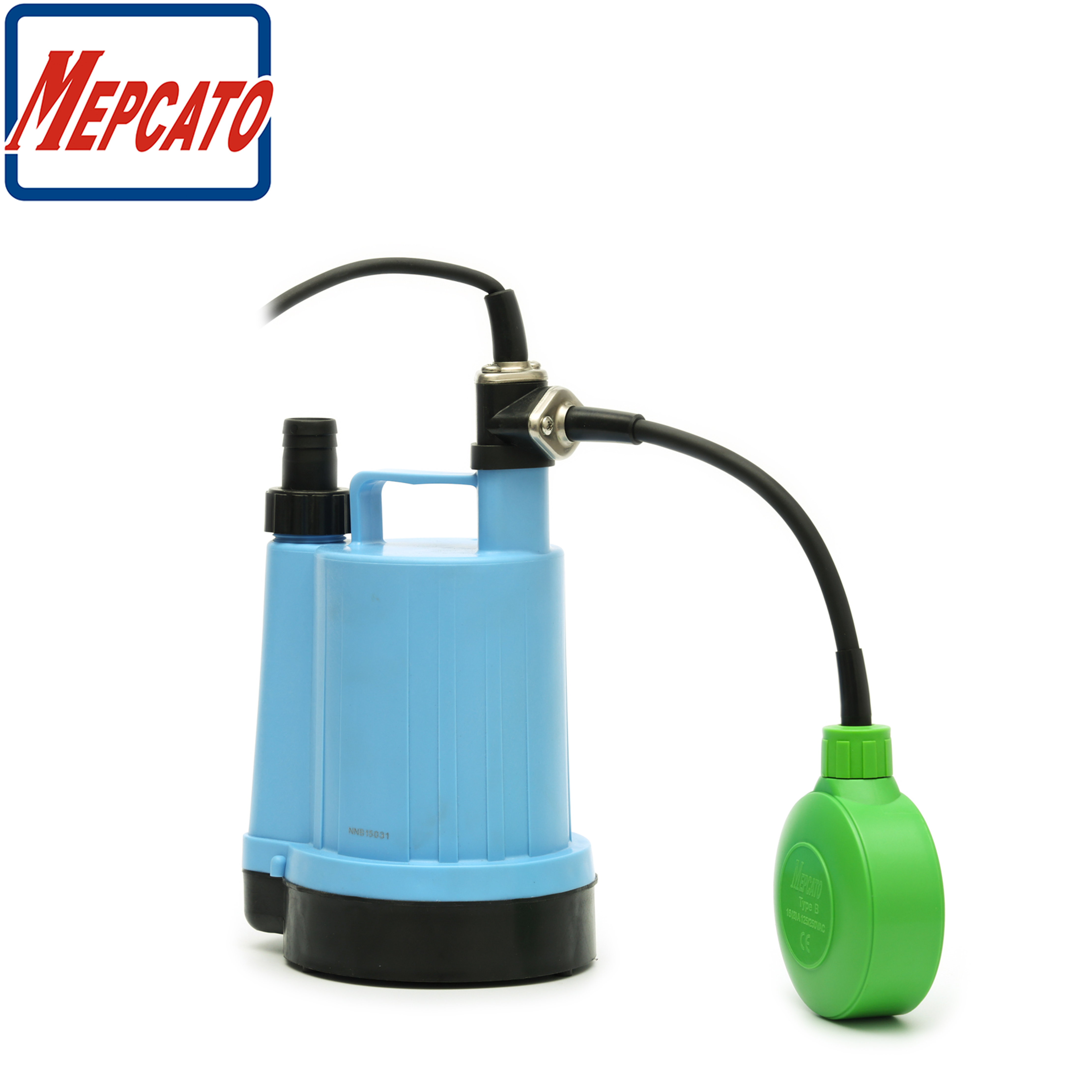

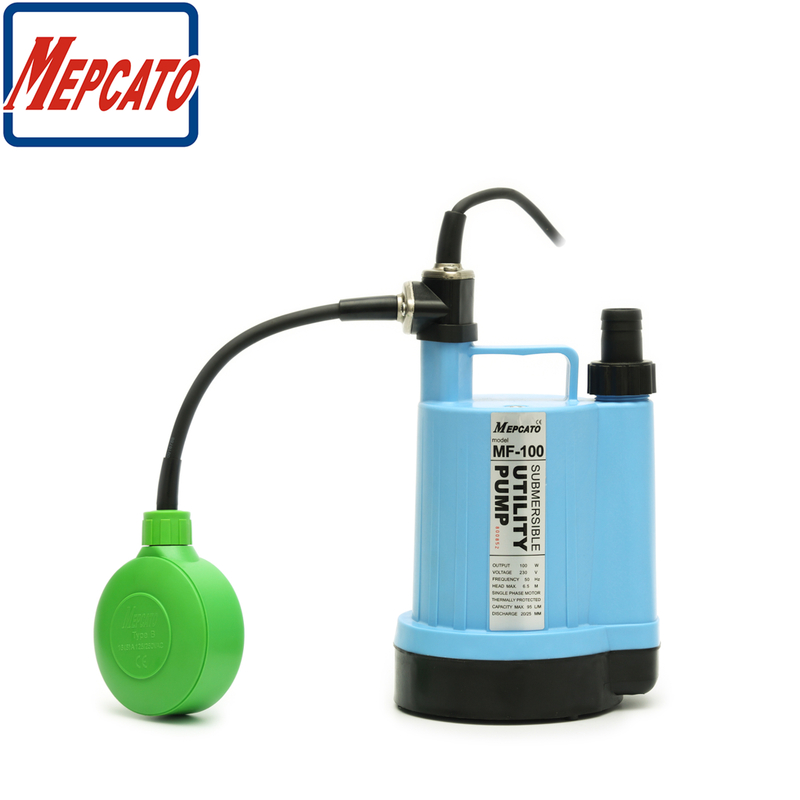

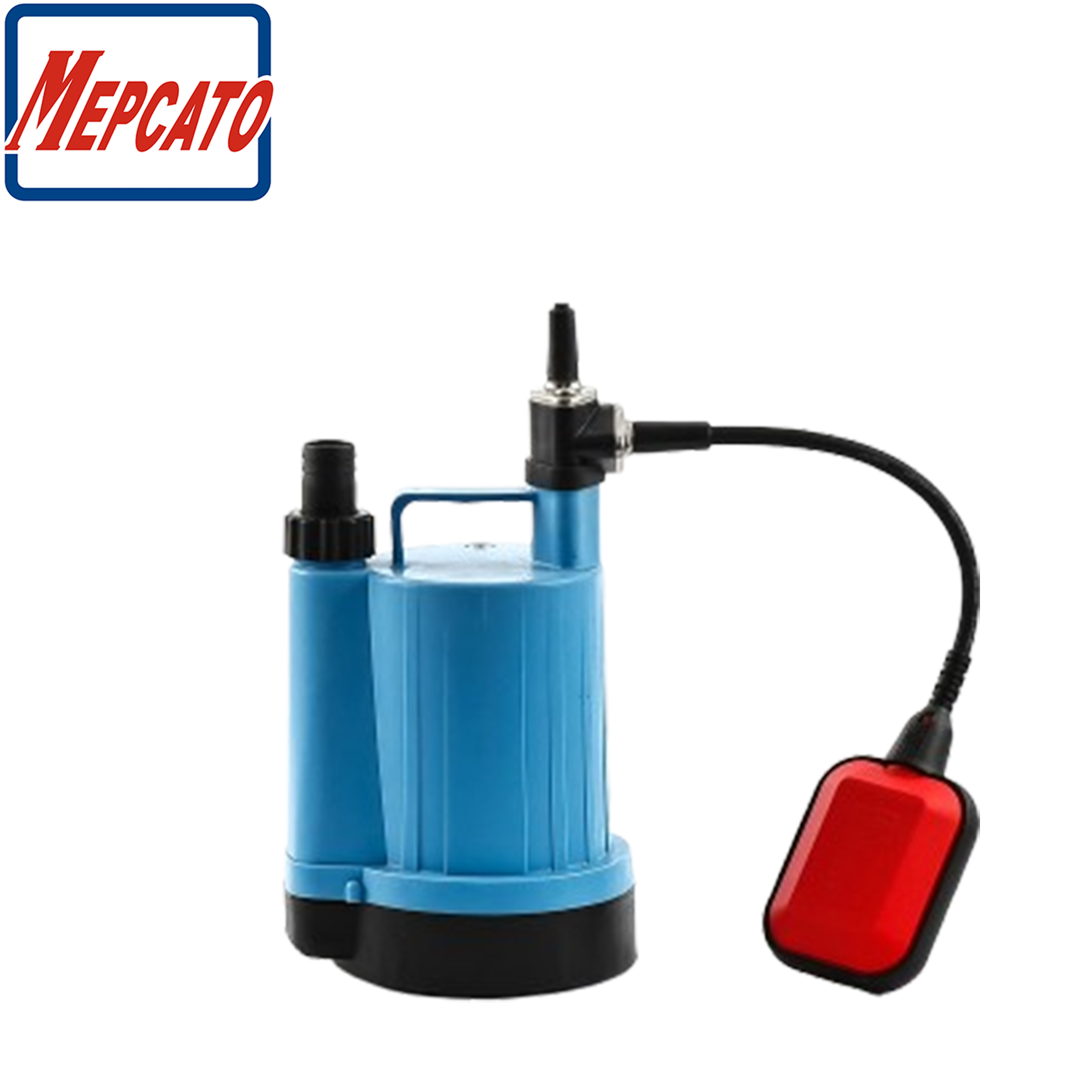

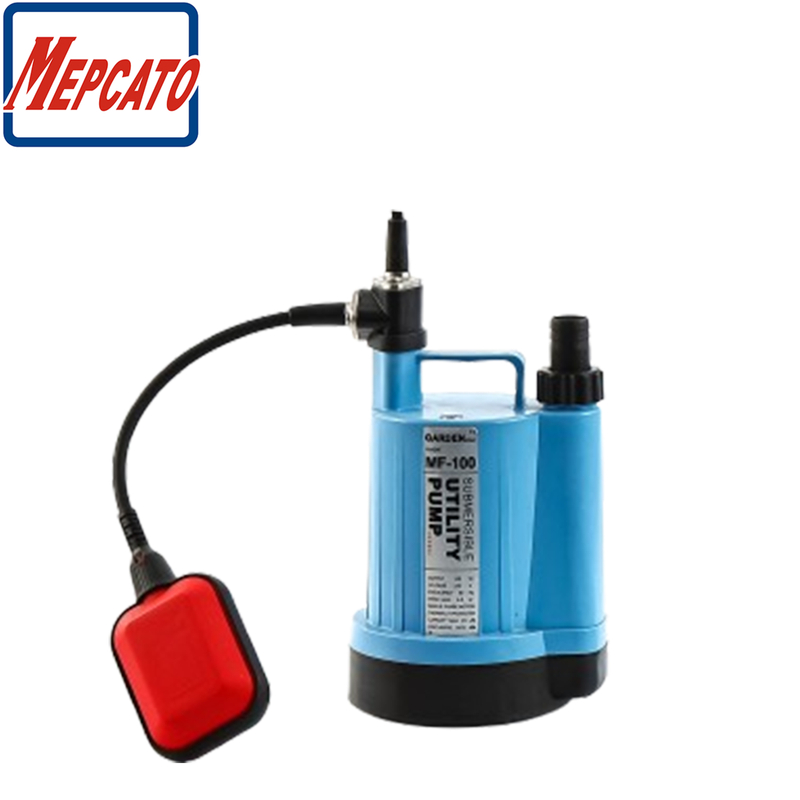

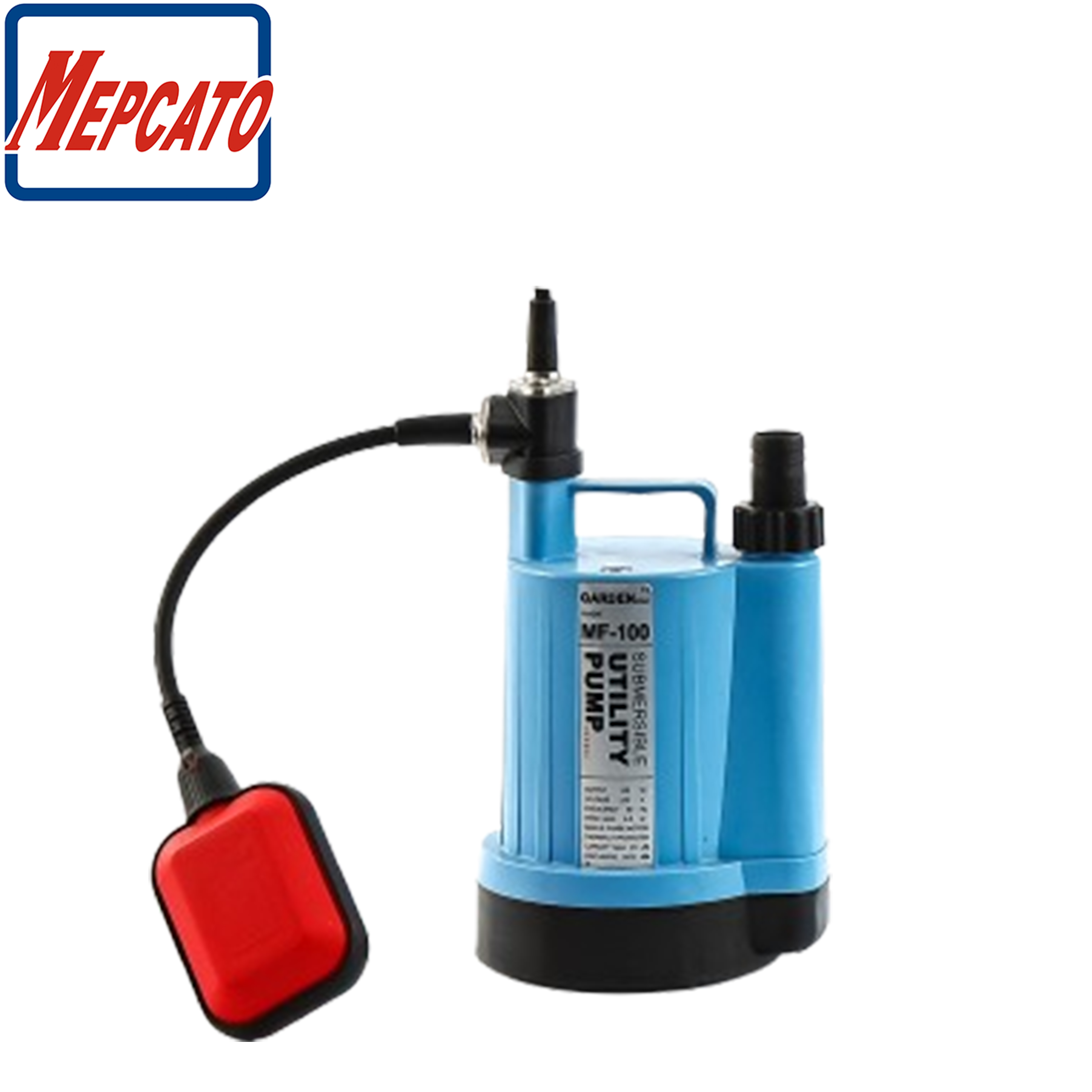

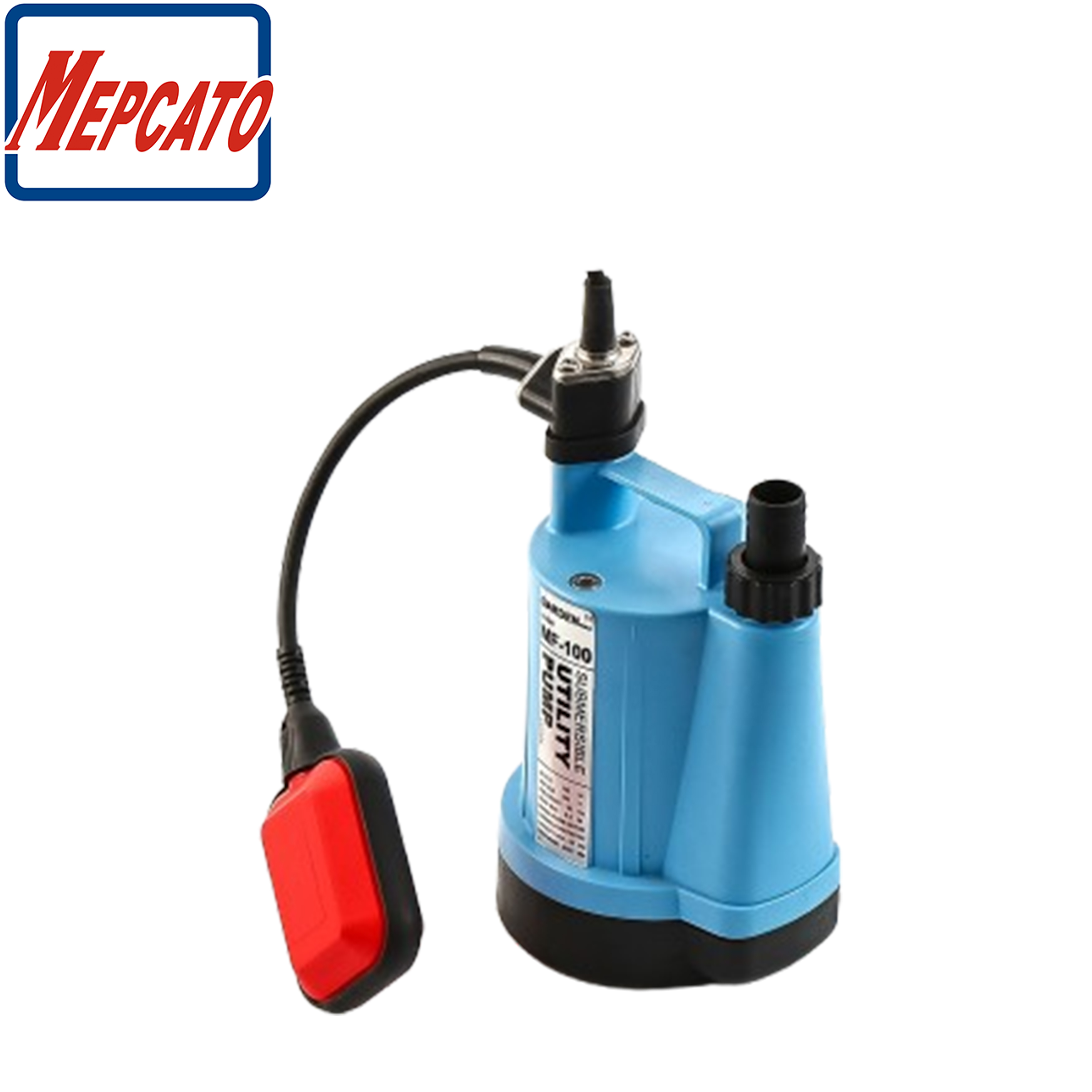

Float switch models MF-100 and A type new switch model M-100A
M-100A switch: Automatic operation (A): The integrated float switch starts and stops the pump automatically when the indicator is positioned on "A".
Manual operation (M): To start the pump, lift the knob positioning the indicator on "M".
M-100 Low Level Submersible Utility Pump
Suitable for clean water, slight dirty water and marine equipment
For domestic emergencies where a small area must be drained to the lowest level possible
Ideal for complete drainage of flat surfaces: basement, cellar, rooftops, garages, pools
Apply to fish tank and water tank cleaning
Features
Pumps residue water down to 2 mm
New A type of Auto-Manual switch can match with M-100 or M-400
Float switch models MF-100 and A type new switch model M-100A
M-100A switch: Automatic operation (A): The integrated float switch starts and stops the pump automatically when the indicator is positioned on "A".
Manual operation (M): To start the pump, lift the knob positioning the indicator on "M".
Model | M-100 Series | |
Pumping Fluid | Type of Fluid | Clean water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, PPO |
Shaft Seal | Mechanical Seal+Oil Seal | |
Casing | PP+Fiber Glass | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 3m with Plug |

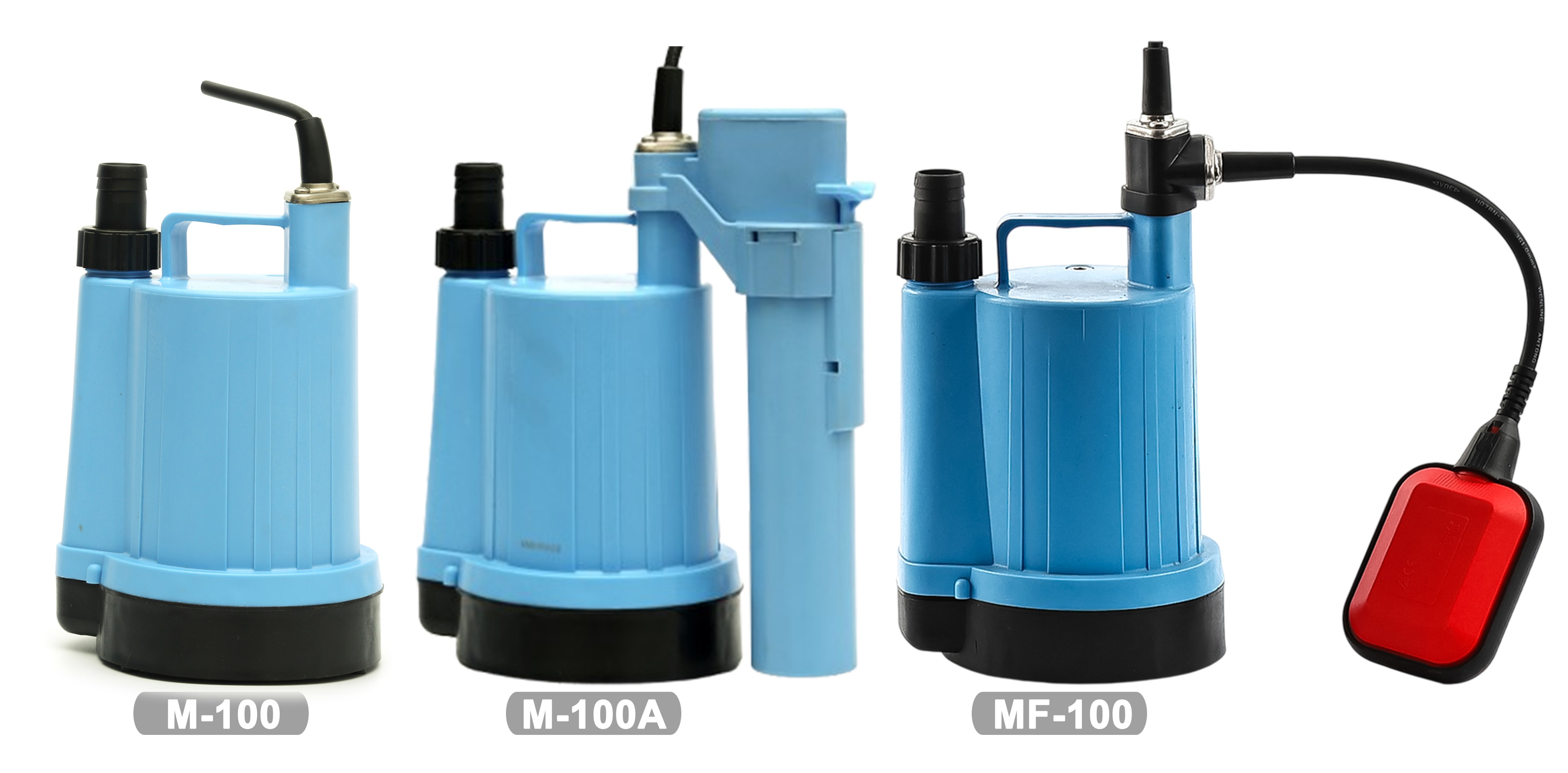

Model | Input Power | Output Power | Outlet | Voltage | Max Flow | Max Head | L x W x H | ||
Watt | Inch | V/Hz | L/min | m | cm | cm | cm | ||
M-100 (Manual) | 130 | 100 | 3/4;1 | 220V/50Hz | 95 | 6.5 | 16 | 13.9 | 27 |
MF-100 (Auto) | 18 | 13.9 | 30 | ||||||
M-100A (Auto/Manual) | 23.2 | 13.9 | 28.5 |
Model | M-100 Series | |
Pumping Fluid | Type of Fluid | Clean water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, PPO |
Shaft Seal | Mechanical Seal+Oil Seal | |
Casing | PP+Fiber Glass | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 3m with Plug |
Model | Input Power | Output Power | Outlet | Voltage | Max Flow | Max Head | L x W x H | ||
Watt | Inch | V/Hz | L/min | m | cm | cm | cm | ||
M-100 (Manual) | 130 | 100 | 3/4;1 | 220V/50Hz | 95 | 6.5 | 16 | 13.9 | 27 |
MF-100 (Auto) | 18 | 13.9 | 30 | ||||||
M-100A (Auto/Manual) | 23.2 | 13.9 | 28.5 |
