Heating and cooling systems make our homes comfortable, but they also produce a steady stream of water. Air conditioners, high-efficiency furnaces, and dehumidifiers pull moisture from the air as they operate. Gravity usually drains this water away safely. However, gravity does not always work in your favor, especially if your equipment sits in a basement or an area without a floor drain.
When water cannot flow naturally to a drainage point, it pools around your equipment. Standing water causes severe property damage, encourages mold growth, and can even ruin your expensive HVAC system. You need a reliable mechanical solution to move that water out of your home.
This is exactly where a condensate pump comes into play. This specific type of electric pump collects the accumulating moisture and actively pushes it to a designated drain line. In this guide, we will explain how these vital devices work, compare them to other common water pumps, and help you determine the right solution for your property.
A condensate pump is a small, specialized electric pump designed specifically to manage the water produced by HVAC and refrigeration equipment. The pump unit typically features a built-in reservoir tank. As your air conditioner or furnace runs, the condensation drips directly into this small tank.
Inside the reservoir sits a float switch. Once the water level reaches a certain height, the float rises and activates the motor. The pump then drives the collected water out through a flexible discharge tube, moving it up and away to a proper drain, sink, or exterior outlet. Once the tank empties, the float lowers, and the system shuts off automatically.

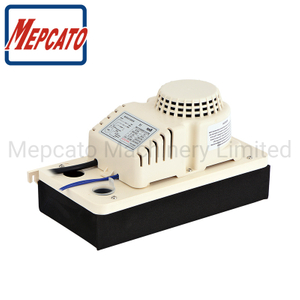

Modern models offer excellent efficiency and safety features. For example, the Mepcato MEC-20 Condensate Removal Pump includes a concealed 10mm turn check valve to prevent water from flowing backward into the tank. It also features a slim 240mm x 120mm x 55mm footprint, making it incredibly easy to fit into tight spaces. With an oil-resistant tank and an external test lever, units like the MEC-20 provide long-lasting, worry-free operation.
Homeowners and facility managers use a wide variety of water pumps to move liquids. While a condensate pump handles small, steady drips of clean water, you might need different equipment for heavy flooding, gardening, or building water pressure.
The table below breaks down how various pumps function so you can understand your options.
Pump Type | Main Function | Typical Application |
|---|---|---|
Condensate Pump | Removes moisture from HVAC units | Air conditioners, furnaces, dehumidifiers |
Utility Pump | Moves water from one place to another | Flooded basements, draining water heaters |
Drainage Pump | Clears standing or residual water | Emptying pools, construction sites |
Irrigation Pump | Supplies water to dry land | Sprinklers, agricultural fields, gardens |
Keeps water moving in a closed loop | Hydronic heating, hot water systems | |
Pressure Pump | Increases water flow force | Boosting household water pressure |
Industrial Pump | Handles massive fluid volumes | Manufacturing plants, municipal water treatment |
While condensate pumps handle your HVAC needs, heavy rainfall or plumbing leaks require equipment built for high volumes of water. If you face a flooded garage or need to empty a garden pond, you should look at a dewatering pump or a utility pump.
For rapid water transfer, a self-priming surface pump works exceptionally well. The Mepcato HPP Series Self-priming Residue Dewatering Pump is compact, lightweight, and operates quietly. This unit is highly versatile; you can use it as an irrigation pump to water your garden or as a transfer pump to discharge water from a fish tank. It handles up to 63 liters per minute, depending on the exact model, making short work of residential water movement.

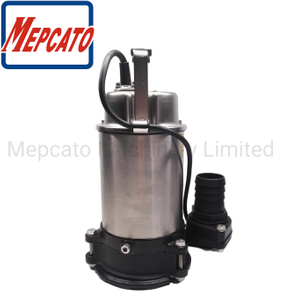

If you need to extract water down to the floor level, a submersible drainage pump is your best bet. The Mepcato MU-100 Residue Drainage Submersible Utility Pump is designed specifically for ultra-low suction. It can pump water down to a mere 3mm, effectively drying out flooded basements, sumps, and pools. Featuring a durable plastic body and a stainless steel motor shaft, this utility pump operates safely in both clean and salt water.
You only need one if your HVAC equipment cannot drain by gravity alone. If your furnace or AC sits below the main drain line of your house, a pump is mandatory to push the water upward and out.
No. Utility pumps are designed to move large volumes of water quickly and manually. A condensate system is fully automated and designed to handle the slow, continuous drip of moisture over years of service.
You should inspect and clean the reservoir tank at least once a year. Algae and debris can build up over time, which may clog the discharge tube or cause the float switch to stick.
Managing unwanted water protects the structural integrity of your home. Whether you need to clear the daily moisture from your air conditioner or drain a flooded basement after a heavy storm, selecting the right equipment makes the process effortless. Assess your specific water removal needs, review the specifications of reliable models, and ensure your home stays dry year-round.
If you are currently evaluating your water management setup, inspect your HVAC system today to ensure your drainage lines are clear and functioning correctly.
