A centrifugal pump consists of several core components—impeller, pump casing, shaft, mechanical seal, motor, and bearings—that work together to move fluid using rotational energy. Understanding each part helps you choose the right pump type, whether that's a submerged water pump, a sea water circulation pump, a basement pump, or a garden pump.
Centrifugal pumps are among the most widely used fluid-moving machines in the world. You'll find them in residential basements, aquaculture fish ponds, marine environments, garden irrigation systems, and large-scale industrial facilities. They're reliable, efficient, and available in a huge range of configurations.
But what actually makes a centrifugal pump work? Knowing the answer matters—whether you're selecting a stainless steel pump for corrosive sea water, choosing a submerged water pump for basement drainage, or setting up a garden pump for irrigation. The right component knowledge helps you match the pump to the job and avoid costly mistakes.
This guide breaks down each major component, explains what it does, and shows how these parts come together across different pump types.

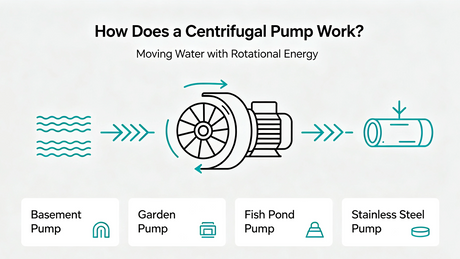

Before diving into the components, a quick overview helps. A centrifugal pump converts mechanical energy from a motor into kinetic energy in a fluid. The spinning impeller accelerates the fluid outward, and the pump casing converts that velocity into pressure, pushing fluid through the outlet.
Simple in principle. Sophisticated in engineering.
The impeller is the heart of the pump. This rotating disc—fitted with curved vanes—spins at high speed and flings fluid outward using centrifugal force. Impeller design varies significantly depending on the application.
Closed impellers are the most efficient and are commonly used in clean water applications like garden pumps and booster systems.
Open or semi-open impellers handle fluids with solids, making them suitable for sewage and wastewater pumps.
Axial flow impellers move large volumes of fluid at low head—exactly the configuration used in Mepcato's 75HPSA Series Axial Flow Sea Water Circulation Submersible Pump, which achieves a maximum capacity of 0.66 m³/min.
The material matters too. Stainless steel impellers—particularly SUS316—offer excellent corrosion resistance, a critical property for sea water and marine environments.
The pump casing surrounds the impeller and serves a precise hydraulic function. As fluid exits the impeller at high velocity, the volute-shaped casing gradually expands, converting kinetic energy into pressure energy. The outlet channel directs this pressurized fluid to the discharge pipe.
Casing material determines durability. Cast iron casings work well in general wastewater applications, while stainless steel casings handle corrosive or chemically active fluids. Mepcato's MS Series Stainless Steel Submersible Centrifugal Pump, for example, combines stainless steel and cast iron construction for sump and waste water use.
The shaft connects the motor to the impeller, transmitting rotational force. It must be strong, balanced, and precisely aligned—any misalignment creates vibration, accelerates wear, and shortens pump life.
Bearings support the shaft and absorb radial and axial loads during operation. Deep groove ball bearings are a common choice in submersible pump designs, providing smooth, low-friction support even during continuous duty.
In sea water environments, shaft material becomes critical. SUS316 stainless steel shafts—as found in Mepcato's axial flow sea water pump—resist the corrosive effects of salt water far better than standard stainless steel or carbon steel alternatives.
The mechanical seal prevents fluid from leaking along the shaft where it exits the pump casing. Two flat, precision-ground faces press together—one rotating with the shaft, one stationary—creating a near-perfect barrier.
For submersible pumps, the mechanical seal also protects the motor from water ingress. High-quality seals, such as the Italian-imported dual mechanical seals used across Mepcato's pump range, provide extended service life even under continuous operation. Some designs pair the mechanical seal with an oil seal and a dedicated oil chamber, which lubricates and cools the seal faces while adding a secondary layer of waterproofing.
The motor drives the shaft and, by extension, the entire pumping action. In submersible centrifugal pumps, the motor is sealed within the pump body and operates submerged in fluid. Motor specifications—including power output, voltage, phase, insulation class, and protection rating—determine performance range and suitability.
A thermal protector is an important built-in feature. It cuts power automatically if the motor overheats due to blockages, dry running, or electrical faults, preventing permanent damage.
Mepcato's submersible pump motors, for instance, carry IP68 protection ratings and include repeatable thermal protectors—allowing continuous 24-hour operation without risk of burnout.
In submersible applications, the power cable entry point is a potential vulnerability. Water infiltration at the cable connection can cause motor failure. Quality designs address this with epoxy-filled rubber seals at the cable entry, creating a humidity-resistant barrier. Terminal block connections inside the motor housing add further reliability over soldered joints, which can loosen under vibration.
Different applications demand different component priorities. The table below summarizes how key components vary across four common pump categories.
Component | Basement Pump (Sump) | Sea Water Circulation Pump | Garden Pump | Stainless Steel Submersible Pump |
|---|---|---|---|---|
Impeller Type | Semi-open (handles solids) | Axial flow (high volume) | Closed (efficient, clean water) | Closed or semi-open |
Casing Material | Stainless steel + cast iron | Stainless steel (SUS316) | Plastic or stainless steel | Stainless steel |
Shaft Material | Carbon steel or stainless | SUS316 stainless steel | Stainless steel | Stainless steel |
Seal Type | Mechanical seal | Dual mechanical + oil seal | Mechanical seal | Mechanical seal + oil chamber |
Max Solid Handling | Up to 10mm | Not applicable | Not applicable | Varies |
Motor Protection | Thermal protector, IP68 | Thermal protector, IP68 | Thermal protector | Thermal protector, IP68 |
Typical Application | Garage, basement drainage | Aquaculture, marine systems | Irrigation, ponds, fountains | Fish tanks, pools, drainage |
The fundamental components are the same—impeller, casing, shaft, seal, motor—but the engineering priorities diverge significantly.
A surface pump relies on the surrounding air to cool the motor and uses external seals to prevent leaks. A submerged water pump, by contrast, must function fully immersed, meaning every component must be waterproofed, corrosion-resistant, and thermally managed without air cooling. This demands higher-grade seal systems, epoxy cable sealing, and robust motor insulation.
For demanding environments like fish pond oxygen replenishment or sea water drainage, a submersible centrifugal pump with SUS316 stainless steel construction and dual mechanical seals offers the durability that surface pumps simply cannot match.
The right centrifugal pump depends on what you're pumping, how far, and under what conditions.
Choose a basement pump if you need to handle wastewater with solid particles up to 10mm—prioritize semi-open impellers and robust mechanical seals.
Choose a sea water circulation pump if you're operating in marine or aquaculture environments—SUS316 shafts and casings, axial flow impellers, and dual seal systems are non-negotiable.
Choose a garden pump for clean water irrigation, pond filtration, or fountain features—a stainless steel closed-impeller pump with IP68 motor protection handles outdoor use reliably.
Choose a stainless steel submersible pump when hygiene, corrosion resistance, and continuous operation matter—fish tanks, swimming pools, and food-grade water systems all benefit from full stainless steel construction.
Every centrifugal pump, regardless of size or application, depends on the same set of core components working in precise coordination. The impeller generates flow, the casing builds pressure, the shaft transmits power, and the mechanical seal keeps everything watertight. Material choices and engineering refinements then determine whether a pump lasts months or decades.
Mepcato designs its full range of submersible centrifugal pumps—from compact garden pumps to high-capacity sea water circulation systems—with these principles built in. Explore the full product range at mepcato.com or contact the team directly to find the right pump for your application.
The impeller is generally considered the most critical component, as it directly generates the fluid flow. However, the mechanical seal is equally important for reliability—a failed seal leads to motor damage and pump failure.
Stainless steel—particularly SUS316 grade—resists the corrosive effects of salt water far better than standard steel or plastic. Components like the motor casing, impeller, and shaft benefit most from SUS316 construction in marine and aquaculture applications.
A mechanical seal creates a leak-proof barrier between the rotating shaft and the stationary pump body. In submersible pumps, it also protects the motor from water ingress. Dual mechanical seals with oil chambers, like those used in Mepcato's pump range, offer enhanced protection during long-term continuous operation.
A standard centrifugal pump uses a radial impeller to push fluid outward and build pressure. An axial flow pump uses a propeller-style impeller to move fluid along the shaft axis—ideal for moving large volumes of water at low head, such as in fish pond aeration or sea water circulation systems.
Standard garden pumps are not designed for sea water. Sea water requires corrosion-resistant materials throughout—SUS316 stainless steel components, dual mechanical seals, and epoxy-sealed cables. Using an unsuitable pump in salt water will result in rapid corrosion and failure.
