HPP-50, HPP-100
Mepcato
on-Line
1 Year
Motor
Strong Plastic
CE
portable, light, utility
Natural water
0~40ºC(Without freezing)
water transfer, water drainage, dewatering, irrigation
HPP-50: 16.8mm; HPP-100: 25mm
40 ºC
Mechanical Seal

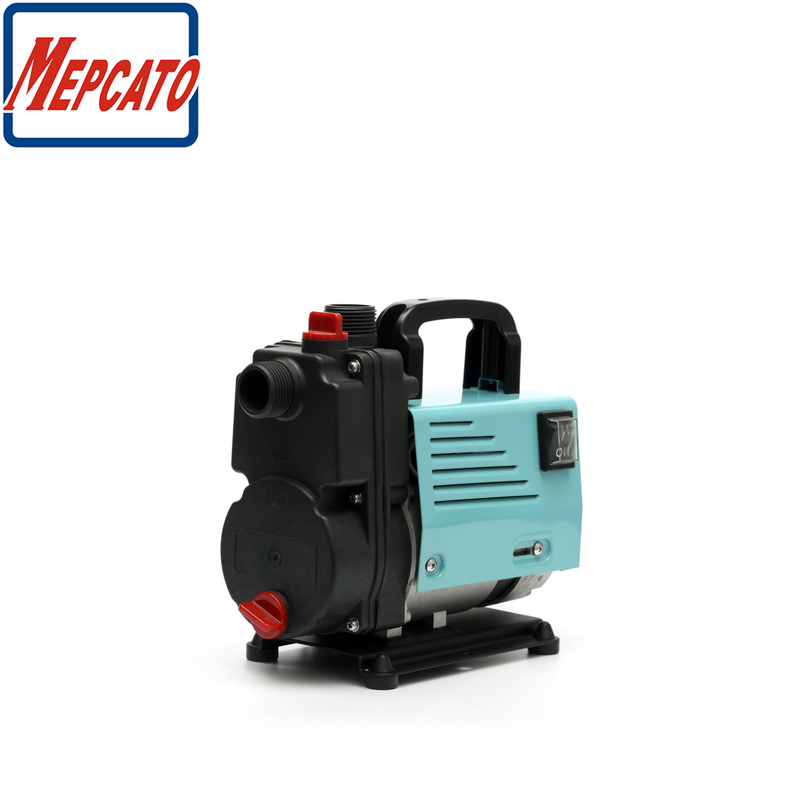

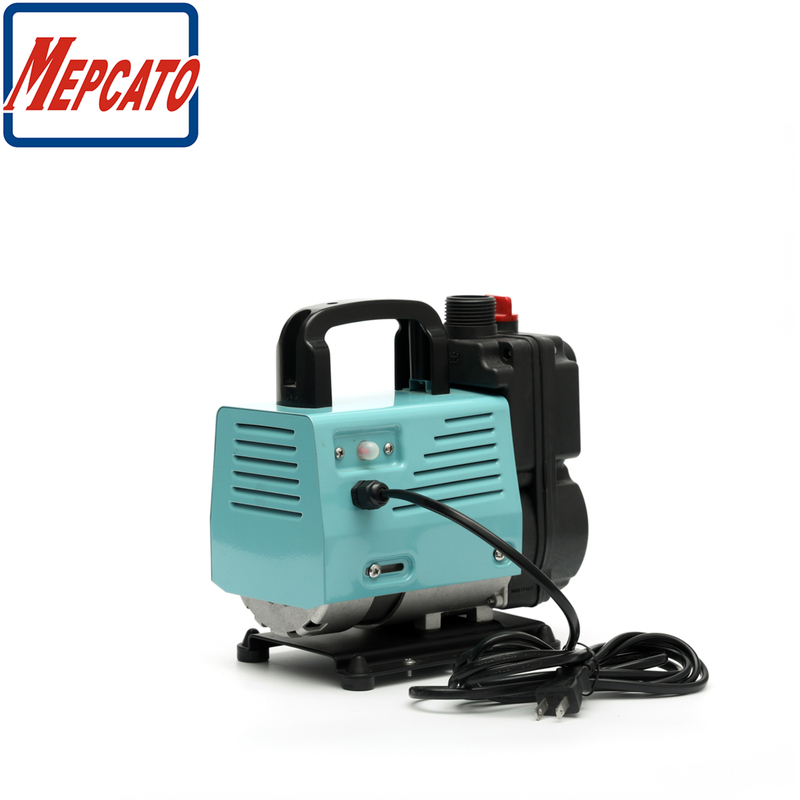

HPP Series Self-priming Residue Dewatering Pump
HPP series self-priming pump are designed for wide range of applications, come with a protector for preventing electric motor burnout (manual return type).
Maintaining excellent self-suction performance to drainage.
Easy to handle with a self-priming pump
Compact, lightweight and high performance
Low noise operating
Overload breaker can protect the motor from being burned
Reverse-flow preventation

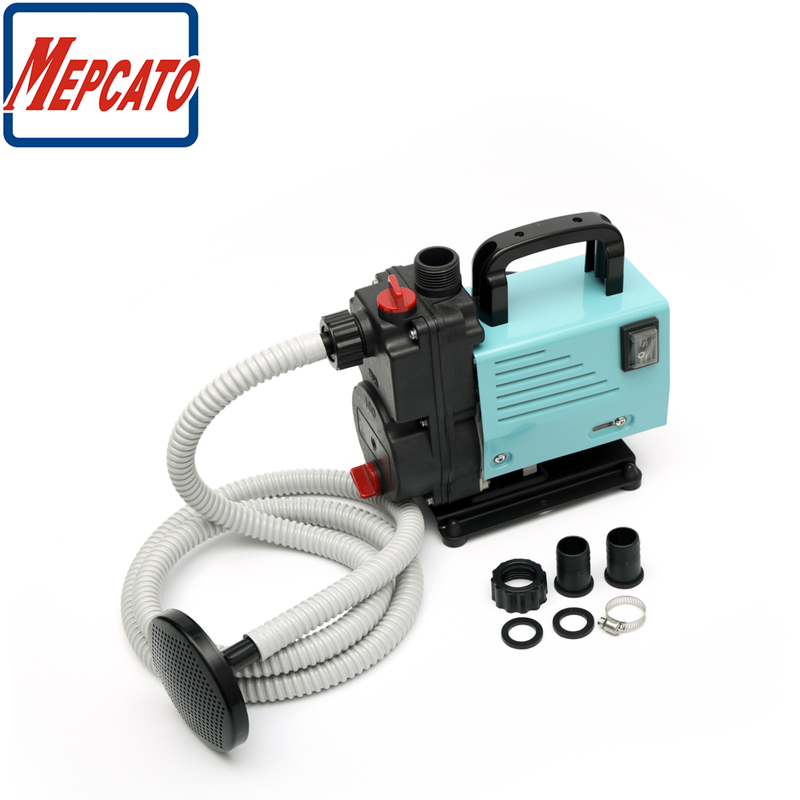

Supplied with sucker can drain residual water from the ground or pool etc.
Application
■ Sprinkling water to the garden and plants
■ Draining/pumping water of building facility etc
■ Pouring/discharge of water to pond, feed drain of fish tank
■ Transfer water wherever need
Accessories
dewatering pump
Suction pump
Residual water pump
HPP Series Self-priming Residue Dewatering Pump
HPP series self-priming pump are designed for wide range of applications, come with a protector for preventing electric motor burnout (manual return type).
Maintaining excellent self-suction performance to drainage.
Easy to handle with a self-priming pump
Compact, lightweight and high performance
Low noise operating
Overload breaker can protect the motor from being burned
Reverse-flow preventation
Supplied with sucker can drain residual water from the ground or pool etc.
Application
■ Sprinkling water to the garden and plants
■ Draining/pumping water of building facility etc
■ Pouring/discharge of water to pond, feed drain of fish tank
■ Transfer water wherever need
Accessories
dewatering pump
Suction pump
Residual water pump
</template>Model | HPP Series | |
Pumping Fluid | Type of Fluid | Natural water |
Fluid Temperature | 0~40℃ (without freezing) | |
Structure | Impeller | Semi-open |
Shaft Seal | Mechanical Seal | |
Bearing | Ball Bearing | |
Material | Casing | Plastic |
Impeller | Plastic | |
Shaft | Stainless Steel | |
Motor | Power | 1 phase-100V, 220V |
Pole | 2 Pole |
Model | Power | Outlet | Voltage | Max. Capacity | Max. Head | Max Suction | Weight | Max. Solids |
w | mm | V/Hz | L/min | m | m | kg | mm | |
HPP-50 | 100 | 16.8 | 220V/50Hz | 32 | 5.2 | 1.8 | 11.7 | 1 |
140 | 16.8 | 220V/60Hz | 35 | 7.5 | 11.7 | 1 | ||
HPP-100 | 135 | 25 | 220V/50Hz | 55 | 6 | 11.7 | 1 | |
211 | 25 | 220V/60Hz | 63 | 8.6 | 11.7 | 1 |
Model | HPP Series | |
Pumping Fluid | Type of Fluid | Natural water |
Fluid Temperature | 0~40℃ (without freezing) | |
Structure | Impeller | Semi-open |
Shaft Seal | Mechanical Seal | |
Bearing | Ball Bearing | |
Material | Casing | Plastic |
Impeller | Plastic | |
Shaft | Stainless Steel | |
Motor | Power | 1 phase-100V, 220V |
Pole | 2 Pole |
Model | Power | Outlet | Voltage | Max. Capacity | Max. Head | Max Suction | Weight | Max. Solids |
w | mm | V/Hz | L/min | m | m | kg | mm | |
HPP-50 | 100 | 16.8 | 220V/50Hz | 32 | 5.2 | 1.8 | 11.7 | 1 |
140 | 16.8 | 220V/60Hz | 35 | 7.5 | 11.7 | 1 | ||
HPP-100 | 135 | 25 | 220V/50Hz | 55 | 6 | 11.7 | 1 | |
211 | 25 | 220V/60Hz | 63 | 8.6 | 11.7 | 1 |
