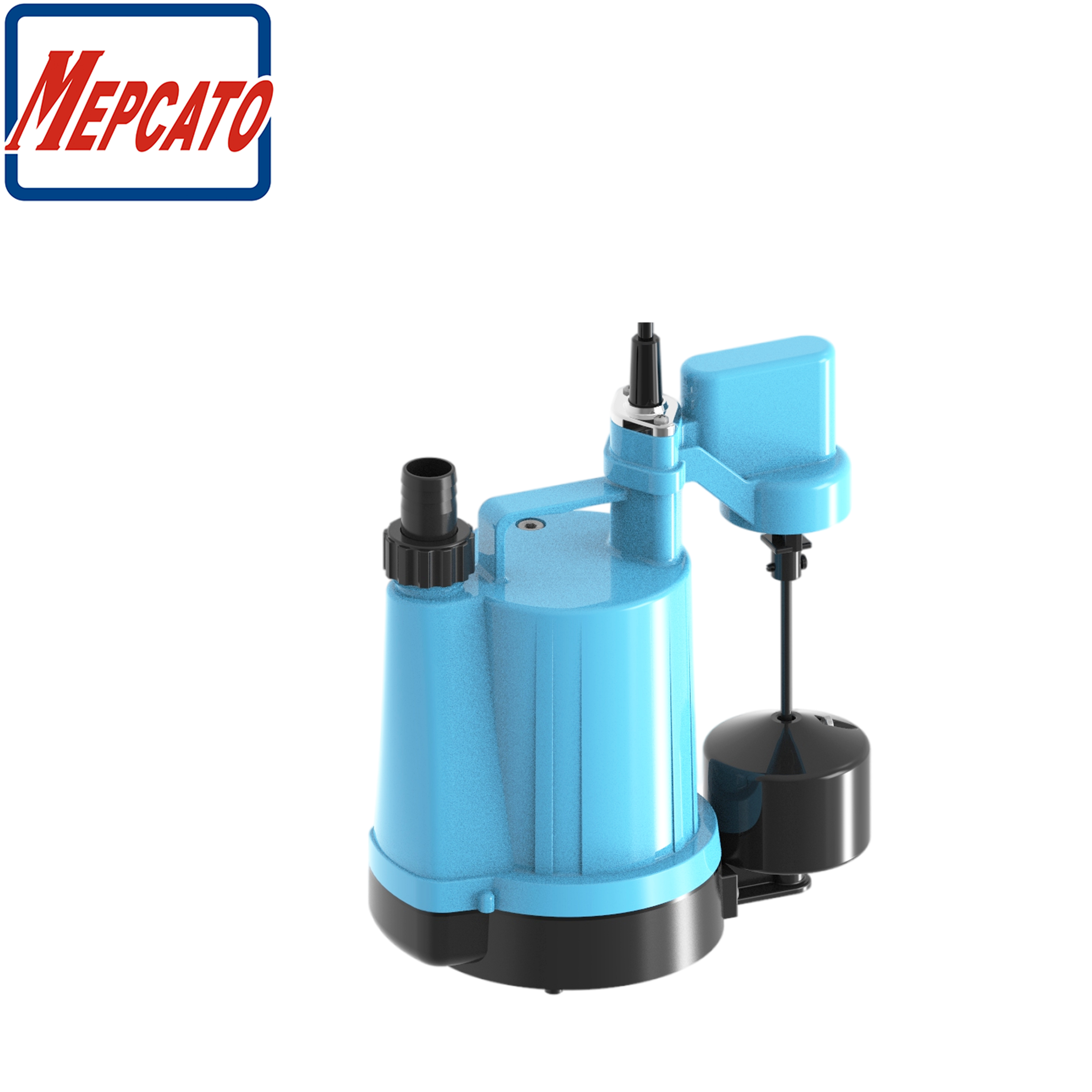

MO-100B
Mepcato
on-Line
1 Year
6.5m
95L/Min
Motor
PP+Fiberglass
CE
Input: 130W Output: 100W
Plastic
3m
blue
4 pc in a brown carton
Oil cooling motor
Residual water drainage, dewatering
Mepcato
95L/min
clean water and slight dirty water
0~40ºC
motor
available
Build-in repeatable thermal protector
water transfer, water drainage, dewatering, irrigation
95L/min
China
3/4inch, 1inch
100W
Mechanical Seal and Oil Seal

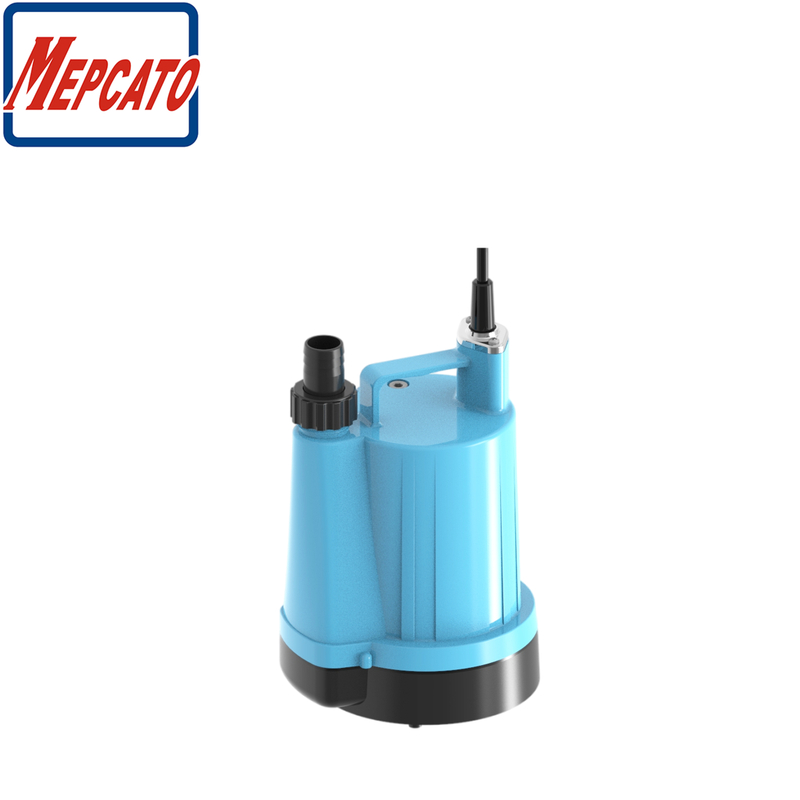

MO-100 Series Low Level Submersible Utility Pump
Manual operation can drain residue water down to 2mm
Motor casing is filled with oil to make excellent cooling of the motor in the condition of low water level, and it has thermal safety protection for overheated motor.
In a state of being no water, the motor will automatically cut off power after about an hour of dry-running. While the motor temperature drops and cool down sufficiently, the pump will automatically power on and resume running.
Robust housing is made of super tough glass fiber reinforced plastic, it has good performances of weather-proof, aging-resistant.
Adopts Italy mechanical seal for waterproof protection.
Oil chamber lubrication achieves the cooling effect and service life extension purpose to the mechanical seal.
Suitable for clean water and slight dirty water.
Storm water drainage
Construction site, cellar, rooftops, garages, or basement etc wherever need continuous low water level drainage
Fish breeding/ aquaculture
Tank/ pool/ pond pump out or circulation
Emergency pump drains water to the lowest level possible
MO-100 Series Low Level Submersible Utility Pump
Manual operation can drain residue water down to 2mm
Motor casing is filled with oil to make excellent cooling of the motor in the condition of low water level, and it has thermal safety protection for overheated motor.
In a state of being no water, the motor will automatically cut off power after about an hour of dry-running. While the motor temperature drops and cool down sufficiently, the pump will automatically power on and resume running.
Robust housing is made of super tough glass fiber reinforced plastic, it has good performances of weather-proof, aging-resistant.
Adopts Italy mechanical seal for waterproof protection.
Oil chamber lubrication achieves the cooling effect and service life extension purpose to the mechanical seal.
Suitable for clean water and slight dirty water.
Storm water drainage
Construction site, cellar, rooftops, garages, or basement etc wherever need continuous low water level drainage
Fish breeding/ aquaculture
Tank/ pool/ pond pump out or circulation
Emergency pump drains water to the lowest level possible
Model | MO-100 Series | |
Pumping Fluid | Type of Fluid | Clean Water, Slight Dirty Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, PPO |
Shaft Seal | Mechanical Seal+Oil Seal | |
Casing | PP+Fiber Glass | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 3m with Plug |
Model | Input Power | Output Power | Outlet | Voltage | Max Flow | Max Head | L x W x H | ||
Watt | Inch | V/Hz | L/min | m | cm | cm | cm | ||
MO-100 (Manual) | 130 | 100 | 3/4;1 | 220V/50Hz | 95 | 6.5 | 16 | 13.9 | 27 |
MO-100B (Auto) | 23.4 | 13.9 | 28.6 |
Model | MO-100 Series | |
Pumping Fluid | Type of Fluid | Clean Water, Slight Dirty Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, PPO |
Shaft Seal | Mechanical Seal+Oil Seal | |
Casing | PP+Fiber Glass | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 3m with Plug |
Model | Input Power | Output Power | Outlet | Voltage | Max Flow | Max Head | L x W x H | ||
Watt | Inch | V/Hz | L/min | m | cm | cm | cm | ||
MO-100 (Manual) | 130 | 100 | 3/4;1 | 220V/50Hz | 95 | 6.5 | 16 | 13.9 | 27 |
MO-100B (Auto) | 23.4 | 13.9 | 28.6 |
