CL-2.4SA
Mepcato
on-Line
1 Year
11m
150L/Min
Motor
Stainless Steel+Cast Iron
CE
Input: 620W Output: 400W
5m rubber
150L/min
clean water
0~40ºC
2 inch
400W
Italy Double Face Mechanical Seal

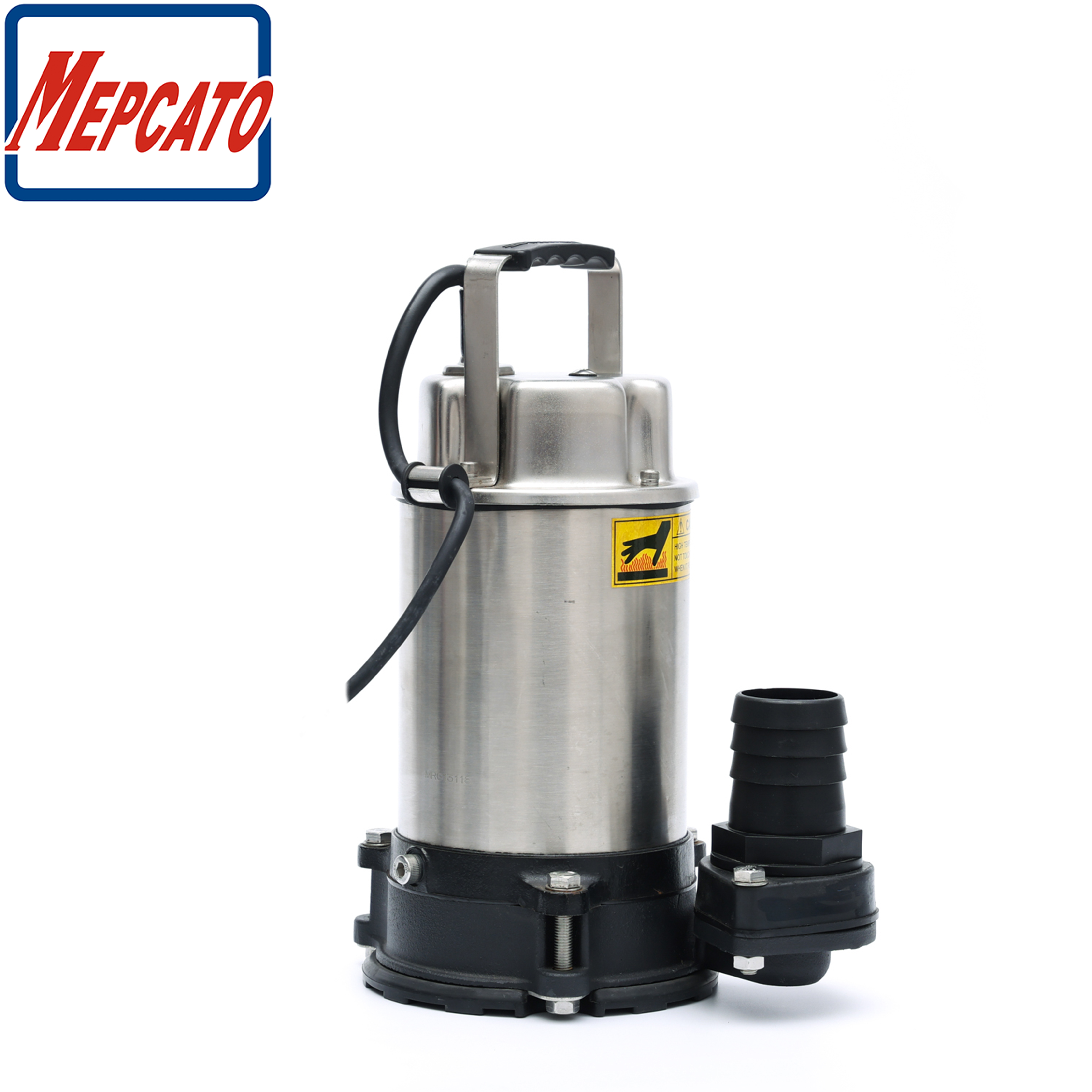

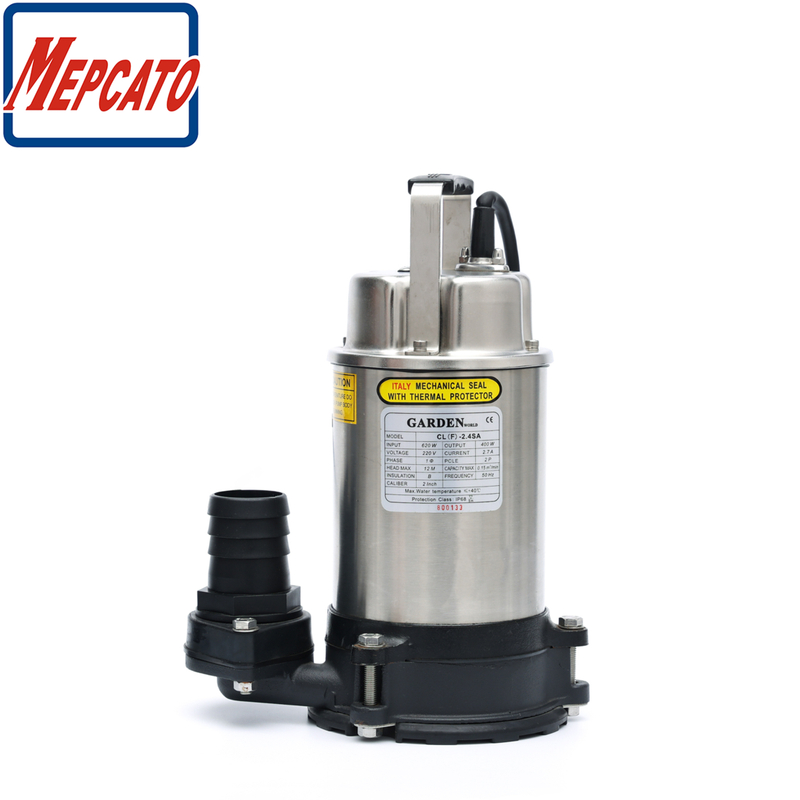

CL -2.4SA Low Level Drainage Pump
Features
Capable of pumping water down to minimum level 1mm
Can start pump with water level of 5mm or more
The motor housing with oil filled to dissipate heat
Motor with thermal protector to avoid motor from overheat
Adopt Italy import double face mechanical seal to ensure pump seal performance
Superior design to easily disassemble motor and pump housing for maintenance
Optional float switch for model CLF-2.4SA
Suitable for clean water
Drainage from basement, storm water, groundwater and parking lot
dewatering pump
drainage pump
residual water pump
CL -2.4SA Low Level Drainage Pump
Features
Capable of pumping water down to minimum level 1mm
Can start pump with water level of 5mm or more
The motor housing with oil filled to dissipate heat
Motor with thermal protector to avoid motor from overheat
Adopt Italy import double face mechanical seal to ensure pump seal performance
Superior design to easily disassemble motor and pump housing for maintenance
Optional float switch for model CLF-2.4SA
Suitable for clean water
Drainage from basement, storm water, groundwater and parking lot
dewatering pump
drainage pump
residual water pump
</template>Model | CL(F)-2.4SA | |
Pumping Fluid | Type of Fluid | Clean Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex |
PA+Fiberglass | ||
Shaft Seal | Italy Double Face Mechanical Seal | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 5m Rubber |
Model | Input | Output | Outlet | Voltage | Max Flow | Max Head | L x W x H | Weight | Max | ||
watt | Inch | V/Hz | L/min | m | cm | cm | cm | kg | mm | ||
CL-2.4SA | 620 | 400 | 2 | 220V/50Hz | 150 | 12 | 24 | 15 | 35 | 11.9 | 1 |
CLF-2.4SA | 620 | 400 | 2 | 150 | 12 | 24 | 15 | 35 | 11.9 | 1 |
Model | CL(F)-2.4SA | |
Pumping Fluid | Type of Fluid | Clean Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex |
PA+Fiberglass | ||
Shaft Seal | Italy Double Face Mechanical Seal | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 5m Rubber |
Model | Input | Output | Outlet | Voltage | Max Flow | Max Head | L x W x H | Weight | Max | ||
watt | Inch | V/Hz | L/min | m | cm | cm | cm | kg | mm | ||
CL-2.4SA | 620 | 400 | 2 | 220V/50Hz | 150 | 12 | 24 | 15 | 35 | 11.9 | 1 |
CLF-2.4SA | 620 | 400 | 2 | 150 | 12 | 24 | 15 | 35 | 11.9 | 1 |
