M-100C
Mepcato
on-Line
1 Year
6.5m
95L/Min
Motor
PP+Fiberglass
CE
Input: 130W Output: 100W
Plastic
3.5m
blue
4 pc in a brown carton
portable, light, utility
Residual water drainage, dewatering
Mepcato
95L/min
clean water and slight dirty water
0~40ºC
motor
available
Build-in repeatable thermal protector
water transfer, water drainage, dewatering
23.2x13.9x28.5cm
95L/min
China
3/4inch, 1inch
40 ºC
100W
Mechanical Seal and Oil Seal

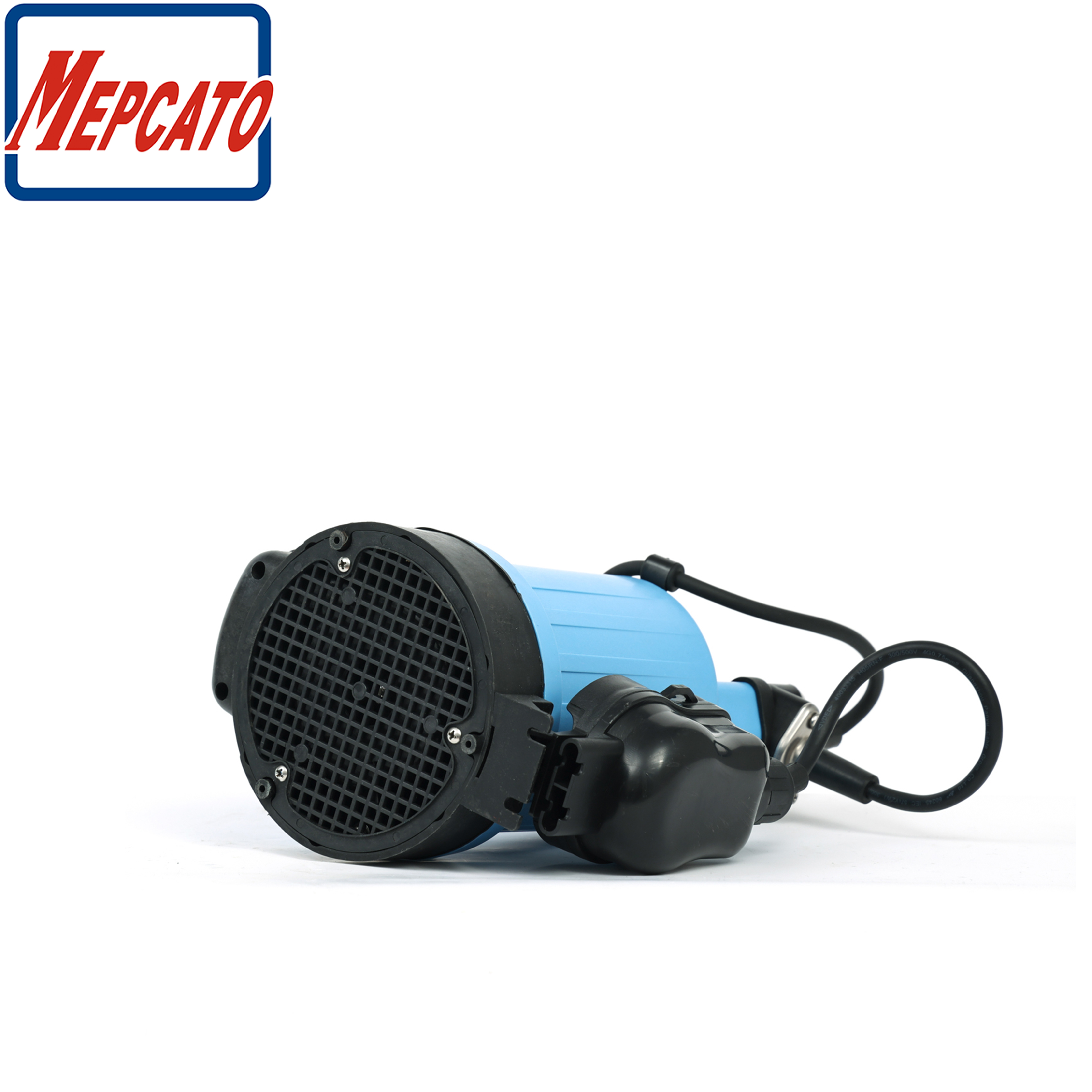

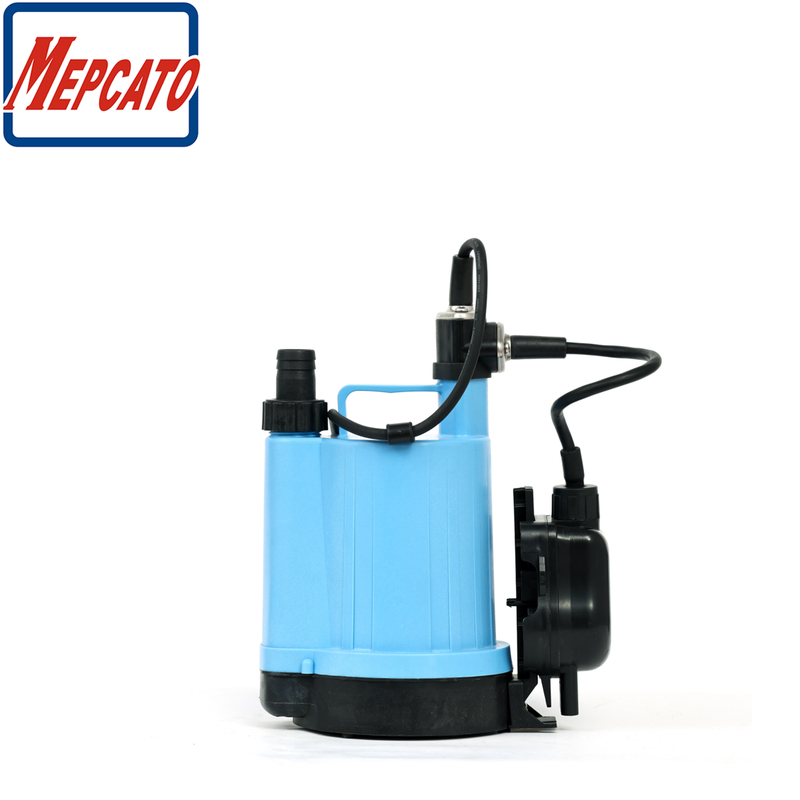

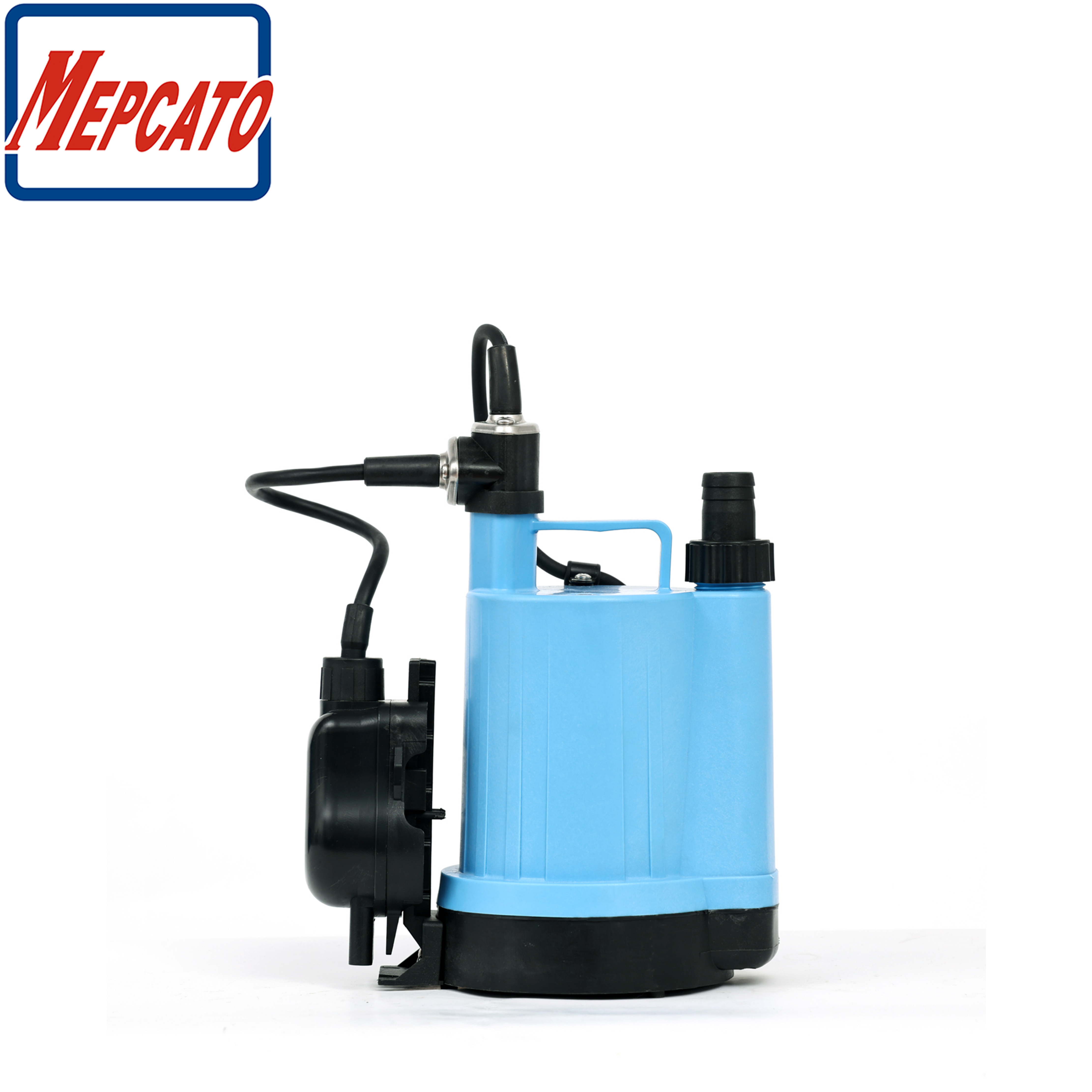

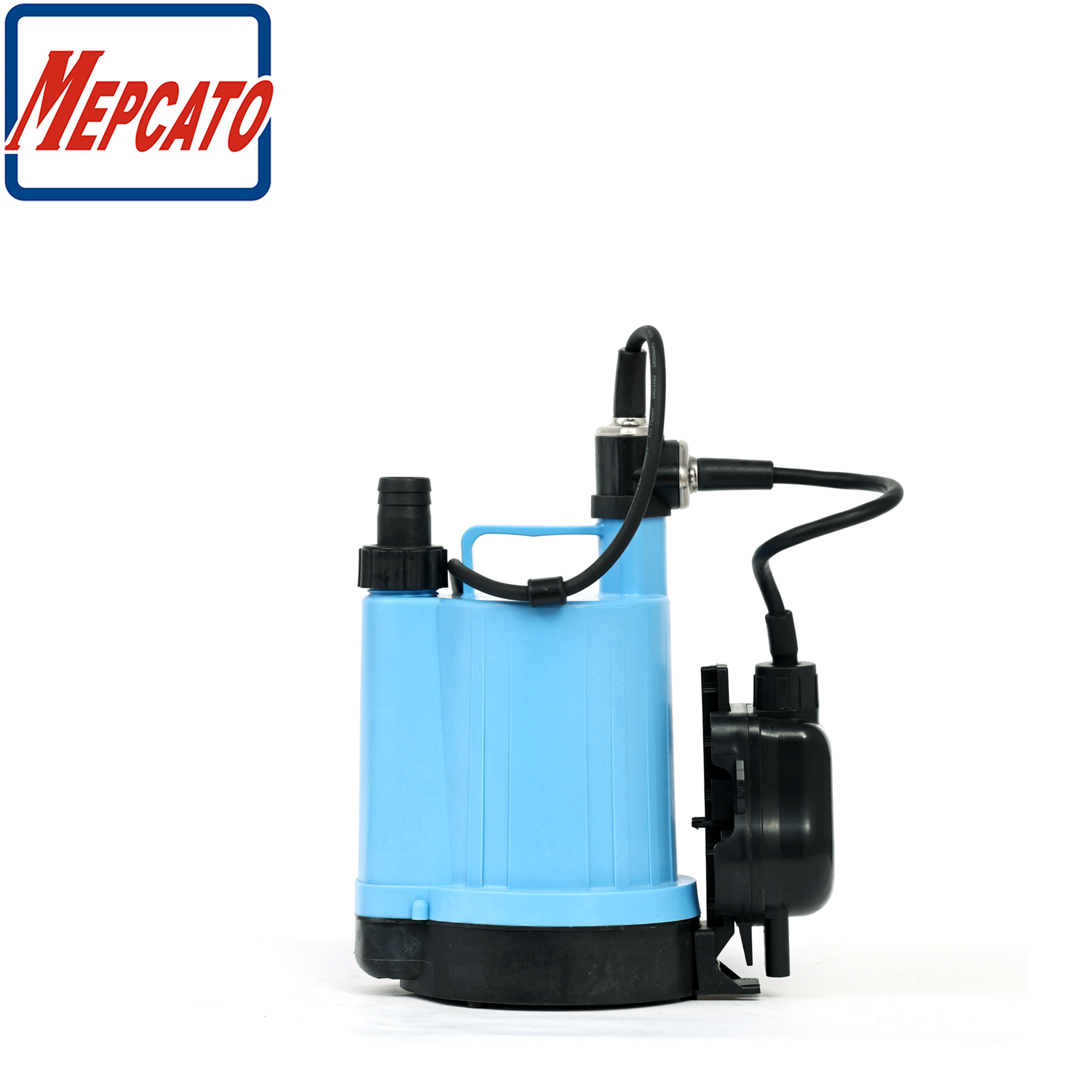

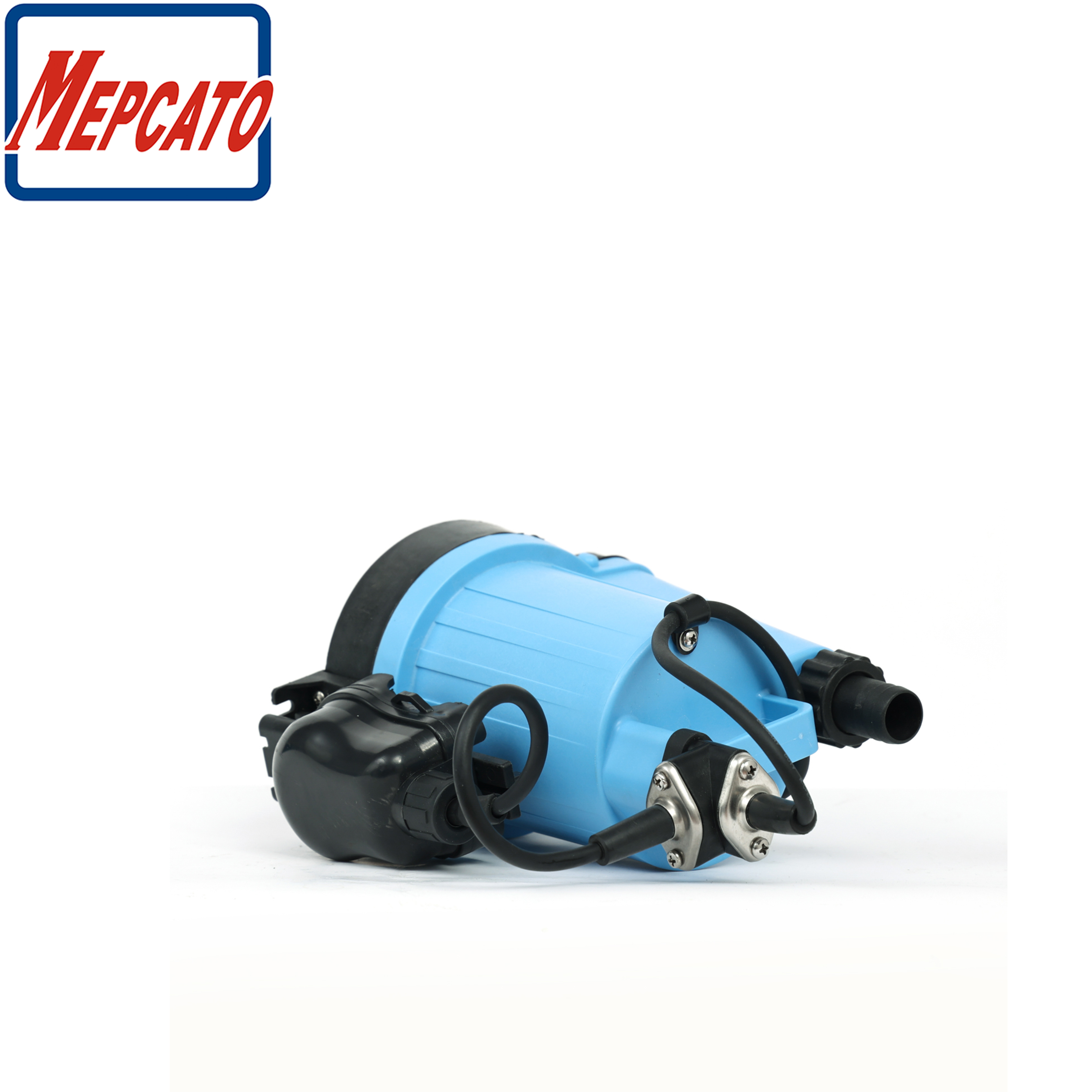

M-100C Residue Dewatering Submersible Pump

Suitable for clean water and dirty water
For domestic emergencies where a small area must be drained to the lowest level possible
Ideal for complete drainage of flat surfaces: basement, cellar, rooftops, garages, pools
Assembled with new type-C level regulator for low level drainage
Can detect the presence of water at 25.5mm from the floor
Optional bracket for fixing the floater
M-100C Residue Dewatering Submersible Pump

Suitable for clean water and dirty water
For domestic emergencies where a small area must be drained to the lowest level possible
Ideal for complete drainage of flat surfaces: basement, cellar, rooftops, garages, pools
Assembled with new type-C level regulator for low level drainage
Can detect the presence of water at 25.5mm from the floor
Optional bracket for fixing the floater
| Model | M-100C | |
Pumping Fluid | Type of Fluid | Clean water, dirty water |
| Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, PPO |
| Shaft Seal | Mechanical Seal+Oil Seal | |
| Casing | PP+Fiber Glass | |
| Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
| Insulation | Class B | |
| Phase/Voltage | Single or three phase/110V,220-240V | |
| Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
| Lubricant | Turbine Oil VG32 | |
| Shaft | Stainless Steel | |
| Cable | 3m with Plug | |
Model | Input Power | Output Power | Outlet | Voltage | Max Flow | Max Head | L x W x H | ||
| Watt | Inch | V/Hz | L/min | m | cm | cm | cm | ||
| M-100C | 130 | 100 | 3/4;1 | 220V/50Hz | 95 | 6.5 | 23.2 | 13.9 | 28.5 |
| Model | M-100C | |
Pumping Fluid | Type of Fluid | Clean water, dirty water |
| Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, PPO |
| Shaft Seal | Mechanical Seal+Oil Seal | |
| Casing | PP+Fiber Glass | |
| Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
| Insulation | Class B | |
| Phase/Voltage | Single or three phase/110V,220-240V | |
| Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
| Lubricant | Turbine Oil VG32 | |
| Shaft | Stainless Steel | |
| Cable | 3m with Plug | |
Model | Input Power | Output Power | Outlet | Voltage | Max Flow | Max Head | L x W x H | ||
| Watt | Inch | V/Hz | L/min | m | cm | cm | cm | ||
| M-100C | 130 | 100 | 3/4;1 | 220V/50Hz | 95 | 6.5 | 23.2 | 13.9 | 28.5 |
