CP-2.4SA/2.75SA
Mepcato
on-Line
1 Year
12/16m
217L/min, 300 L/min
Motor
Stainless Steel+plastic
CE
5m rubber
clean water, sewage water and sand carring water
2 or 3 inch
Double Face Mechanical Seal

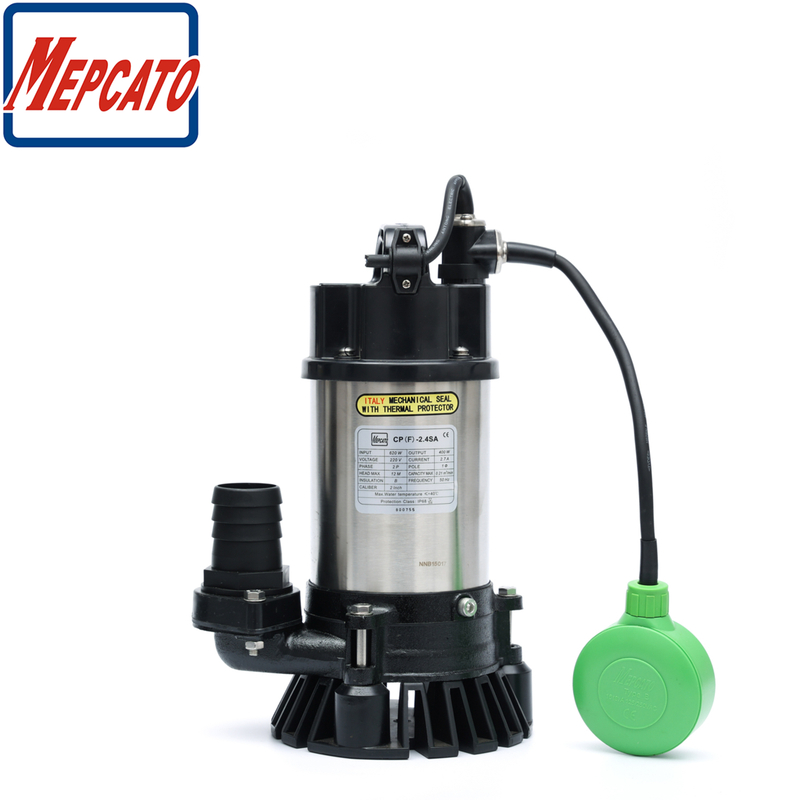

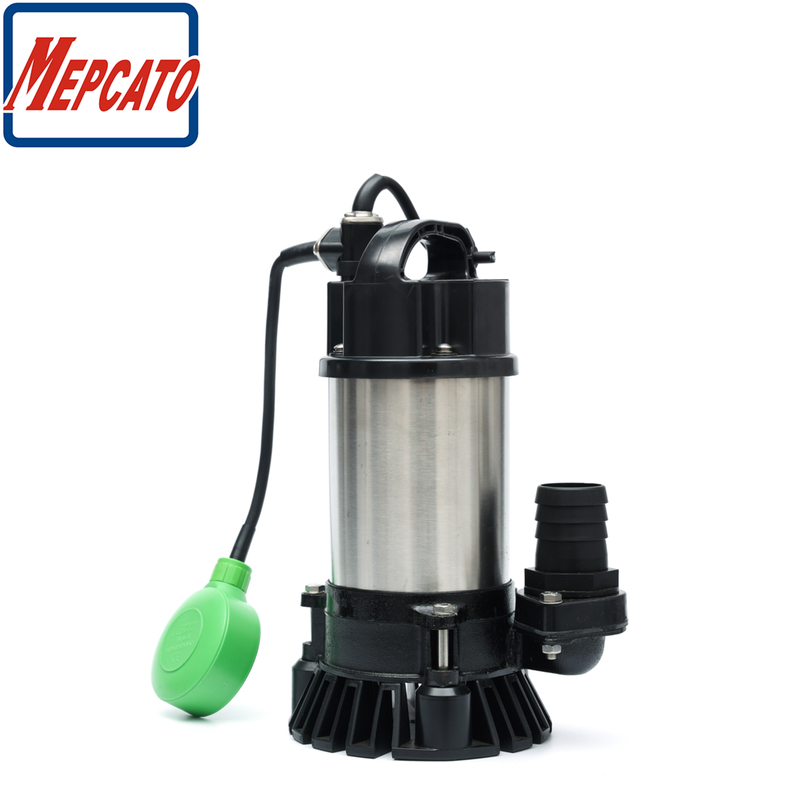

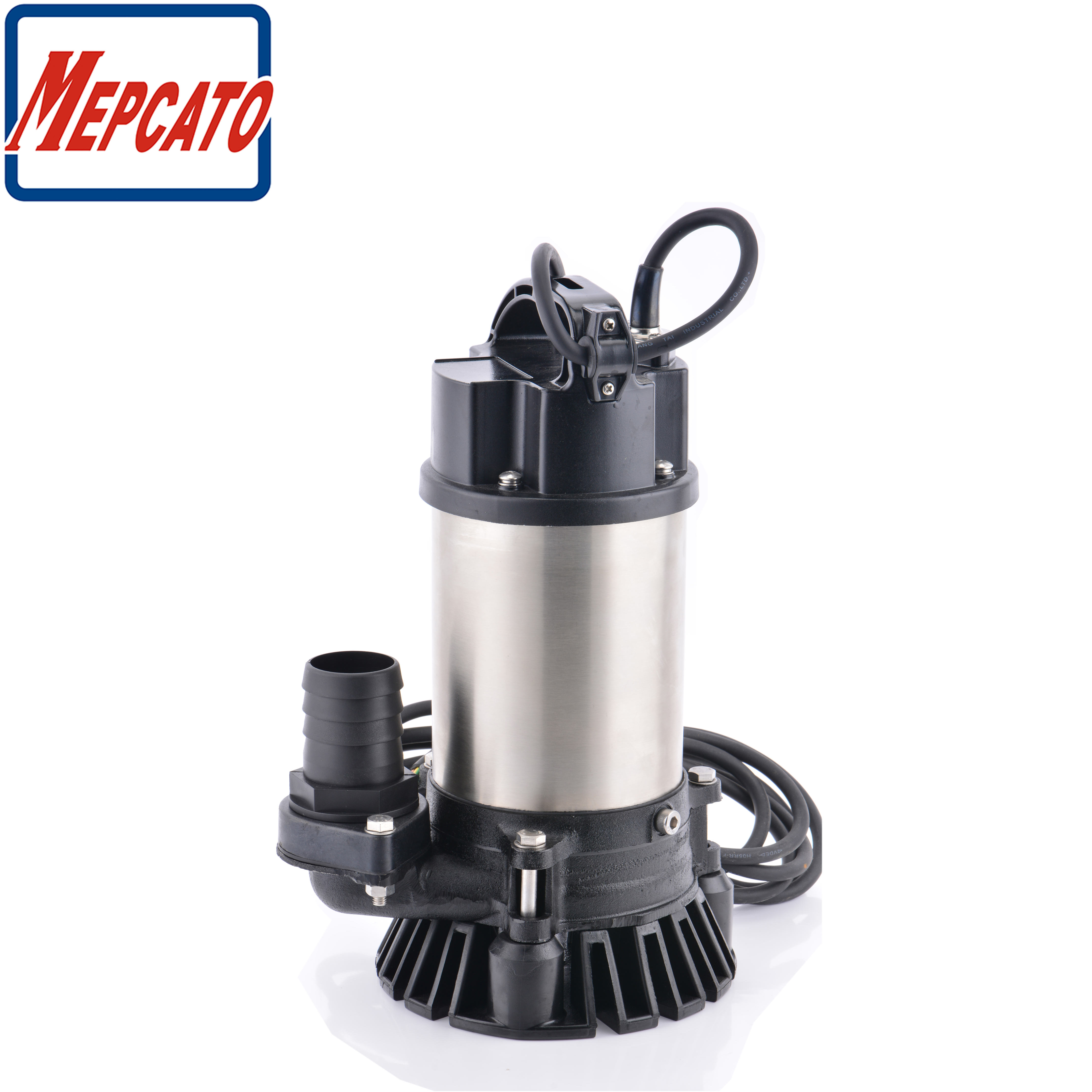

CCS/CP Series Sewage Submersible Pump
● Solid stainless steel body and cast iron pump casing
● An impact resistant PVC strainer base for durability during robust handling
● The vortex impeller offers excellent abrasion resistance in site applications where water contains sand and silt in suspension
● Italy mechanical seal in oil chamber to ensure the pump seal performance
● Special stirring device help to reduce blockages
● Cable wires are upgraded by filling expoxy to raise humidity-resistance
● CCS series for stainless pump head, CP for plastic pump head
● "A" type (vertical float switch) and normal float switch (model with"F") for option
■ Suitable for clean water, salt water and industrial water
■ An ideal small and robust submersible contractor's pump with a wide range of
applications where-ever water has to be moved.
CCS/CP Series Sewage Submersible Pump
● Solid stainless steel body and cast iron pump casing
● An impact resistant PVC strainer base for durability during robust handling
● The vortex impeller offers excellent abrasion resistance in site applications where water contains sand and silt in suspension
● Italy mechanical seal in oil chamber to ensure the pump seal performance
● Special stirring device help to reduce blockages
● Cable wires are upgraded by filling expoxy to raise humidity-resistance
● CCS series for stainless pump head, CP for plastic pump head
● "A" type (vertical float switch) and normal float switch (model with"F") for option
■ Suitable for clean water, salt water and industrial water
■ An ideal small and robust submersible contractor's pump with a wide range of
applications where-ever water has to be moved.
Model | CCS Series | |
Pumping Fluid | Type of Fluid | Clean Water, Sewage Water, Sand Carrying Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex with stirring device |
PA and Fiberglass, PA and Fiberglass with Steel Plate | ||
TPU with Steel Plate | ||
Shaft Seal | Italy Double Face Mechanical Seal+Oil Seal | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 5m with Plug |
Model | Input | Output | Outlet | Voltage | Max Flow | Max Head | L x W x H | Weight | Max | ||
Watt | Inch | V/Hz | L/min | m | cm | cm | cm | kg | mm | ||
CCS-2.4SA | 620 | 400 | 2 | 220V/50Hz | 217 | 12 | 24 | 20 | 40 | 12.7 | 7 |
CP-2.4SA | 620 | 400 | 2 | 217 | 12 | 24 | 20 | 43 | 12.4 | ||
CCS-2.75SA | 1000 | 750 | 2 | 300 | 16 | 24 | 20 | 411 | 13.7 | ||
CP-2.75SA | 1000 | 750 | 2 | 300 | 16 | 24 | 20 | 44 | 13.3 | ||
CCB-2.75SA | 1000 | 750 | 2 | 420 | 12 | 24 | 20 | 41 | 13.7 | ||
CPB-2.75SA | 1000 | 750 | 2 | 420 | 12 | 24 | 20 | 44 | 13.3 | ||
CCS-2.75SA/3G | 1000 | 750 | 3 | 300 | 16 | 24 | 20 | 41 | 14.5 | ||
CPB-2.75SA/3G | 1000 | 750 | 3 | 300 | 16 | 24 | 20 | 44 | 14 |
