RS-2.4SA
Mepcato
on-Line
1 Year
11m
250 L/min
Motor
Stainless Steel+plastic
CE
5m pvc or rubber
clean water, sewage water, industrial water
2 inch
Italy Double Face Mechanical Seal

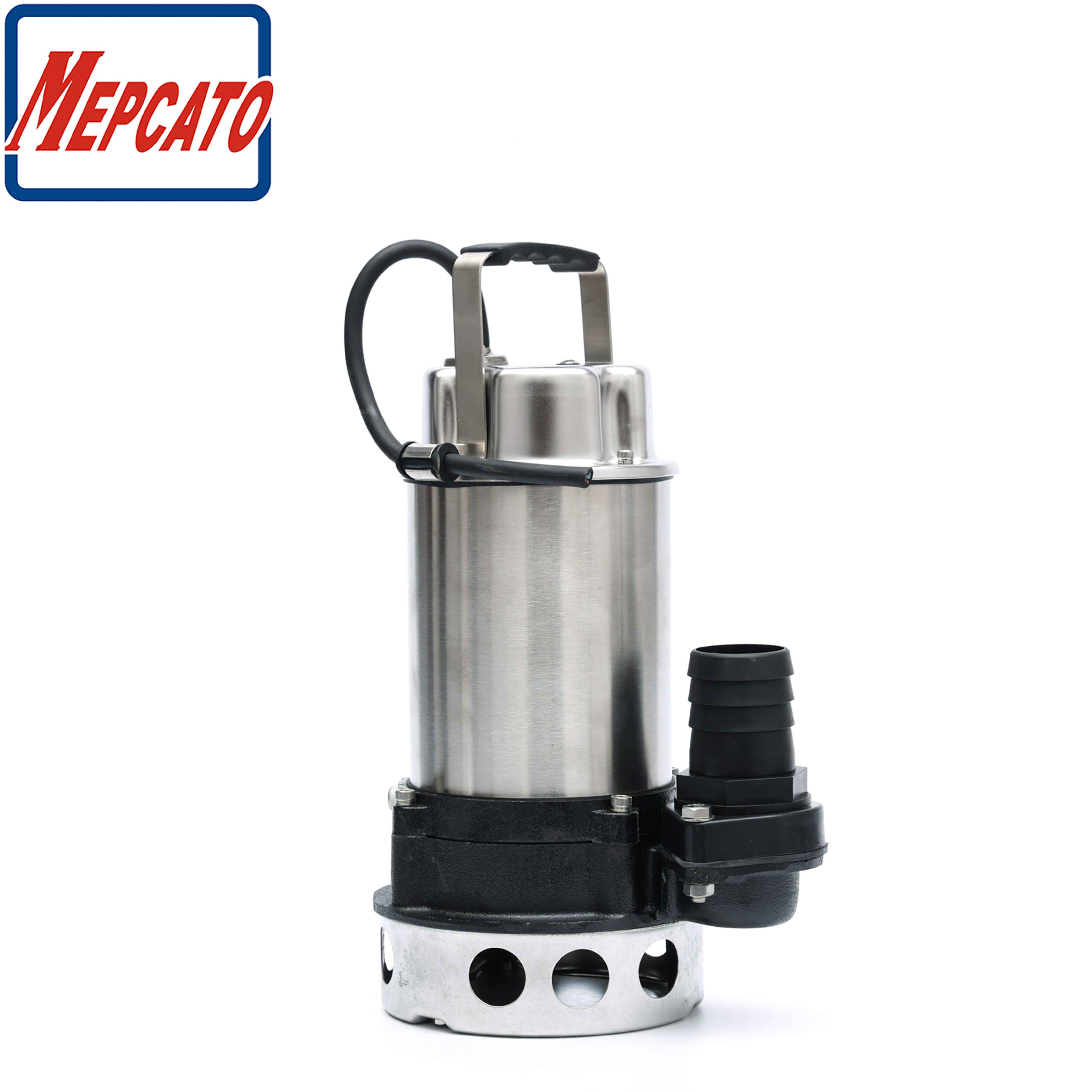

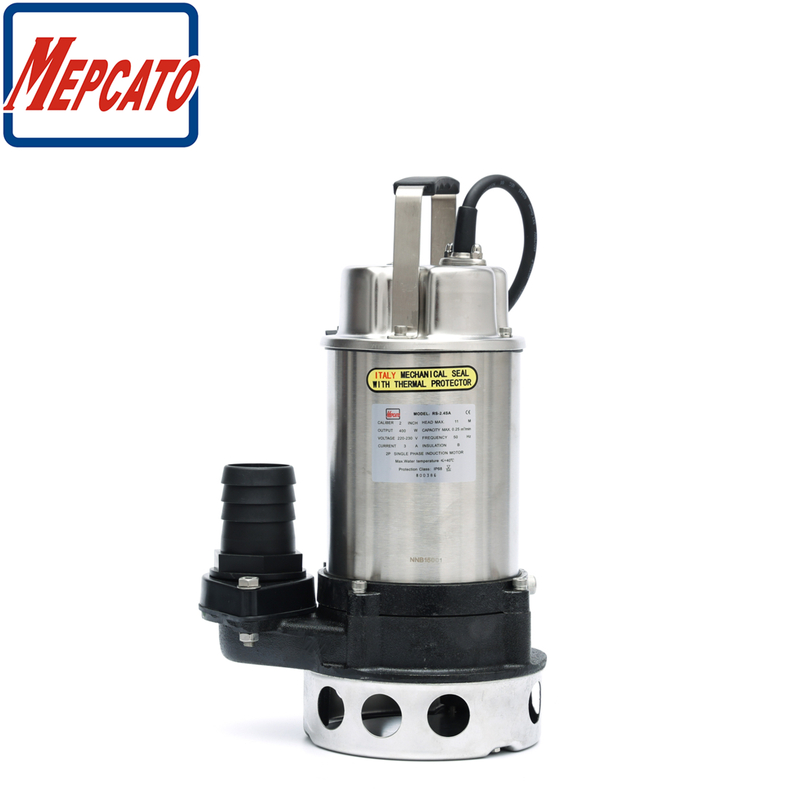

RS Series Sewage Submersible Pump
Pump housing, motor frame, shaft, screws are made of stainless steel to make long service life and attractive appearance

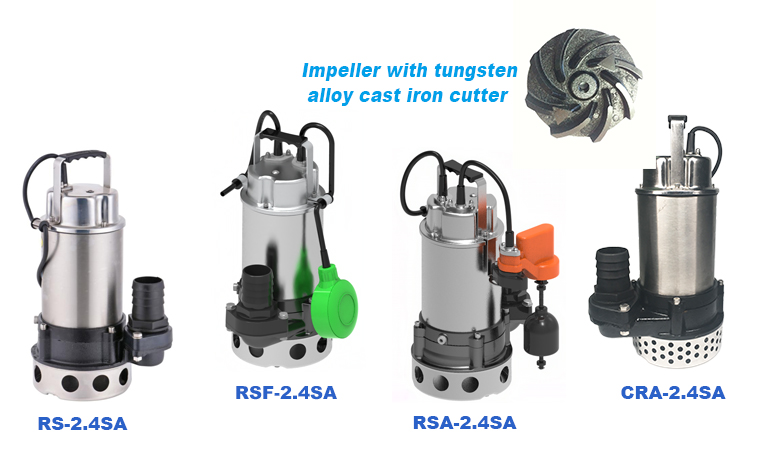

The tungsten alloy impeller with cutter knife offers excellent wear resistance in applications where water contains sand and silt in suspension
Motor with thermal protector to avoid motor from overheat
Adopt Italy import double face mechanical seal to ensure pump seal performance
Impeller is designed to special water flow, muddy liquid and other various wastewater can be efficiently drained
Cable wires are upgraded by filling epoxy to raise humidity-resistance

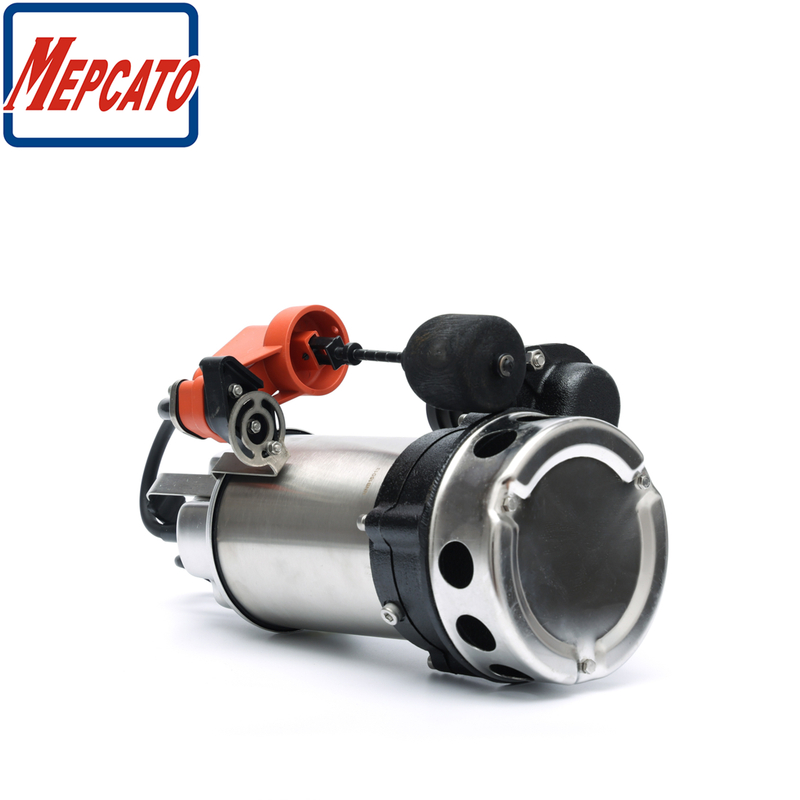

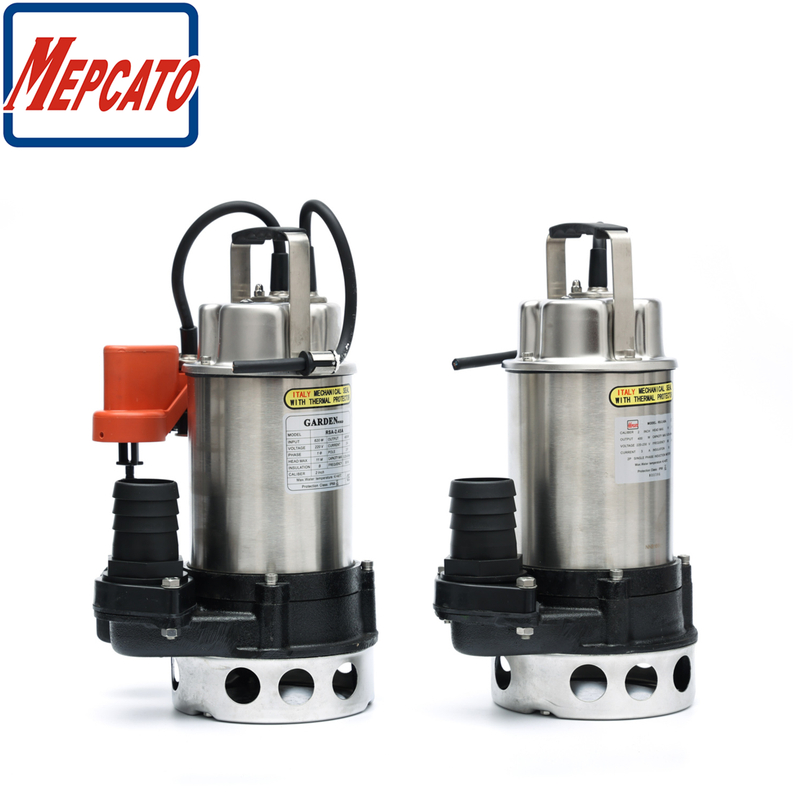

Optional float switch for model RSF-2.4SA/CRSF-2.4SA/RSA-2.4SA/CRSA-2.4SA
Suitable for clean water, salt water and sewage water

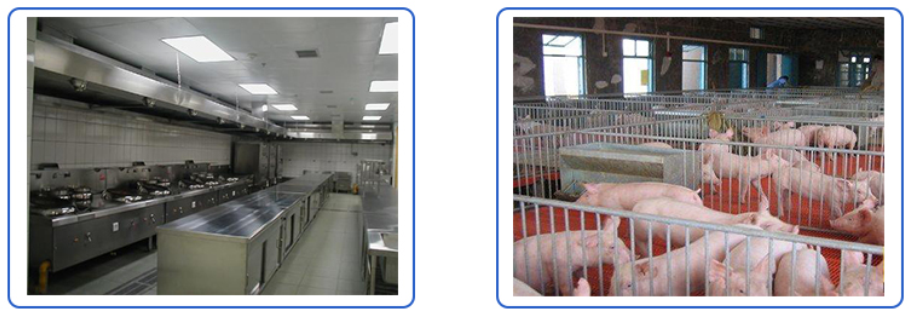

Drainage of kitchen tank, basement, food market and animal husbandry, commercial building, hotels
Water treatment of waste water plant, drainage of water refining tank and drainage of various industrial waste water, etc.
RS Series Sewage Submersible Pump
Pump housing, motor frame, shaft, screws are made of stainless steel to make long service life and attractive appearance
The tungsten alloy impeller with cutter knife offers excellent wear resistance in applications where water contains sand and silt in suspension
Motor with thermal protector to avoid motor from overheat
Adopt Italy import double face mechanical seal to ensure pump seal performance
Impeller is designed to special water flow, muddy liquid and other various wastewater can be efficiently drained
Cable wires are upgraded by filling epoxy to raise humidity-resistance
Optional float switch for model RSF-2.4SA/CRSF-2.4SA/RSA-2.4SA/CRSA-2.4SA
Suitable for clean water, salt water and sewage water
Drainage of kitchen tank, basement, food market and animal husbandry, commercial building, hotels
Water treatment of waste water plant, drainage of water refining tank and drainage of various industrial waste water, etc.
Model | RS Series | |
Pumping Fluid | Type of Fluid | Clean Water and Sewage Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, Tungsten alloy cast iron |
Shaft Seal | Italy Double Face Mechanical Seal, Silicon Carbide | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 5m PVC or Rubber |
Model | Input | Output | Outlet | Voltage | Max Flow | Max Head | L x W x H | Weight | Max | ||
watt | Inch | V/Hz | L/min | m | cm | cm | cm | kg | mm | ||
RS(F/A)-2.4SA | 620 | 400 | 2 | 220V/50Hz | 250 | 11 | 24 | 19 | 39 | 11.7 | 10 |
CRS(F/A)-2.4SA | 620 | 400 | 2 | 250 | 11 | 24 | 19 | 39 | 11.7 | 10 |
Model | RS Series | |
Pumping Fluid | Type of Fluid | Clean Water and Sewage Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, Tungsten alloy cast iron |
Shaft Seal | Italy Double Face Mechanical Seal, Silicon Carbide | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 5m PVC or Rubber |
Model | Input | Output | Outlet | Voltage | Max Flow | Max Head | L x W x H | Weight | Max | ||
watt | Inch | V/Hz | L/min | m | cm | cm | cm | kg | mm | ||
RS(F/A)-2.4SA | 620 | 400 | 2 | 220V/50Hz | 250 | 11 | 24 | 19 | 39 | 11.7 | 10 |
CRS(F/A)-2.4SA | 620 | 400 | 2 | 250 | 11 | 24 | 19 | 39 | 11.7 | 10 |
