MS-2.4SA
Mepcato
on-Line
1 Year
11m
250 L/min
Motor
Stainless Steel+plastic
CE
5m pvc or rubber
clean water, salt water and sewage water
2 inch
Italy Double Face Mechanical Seal

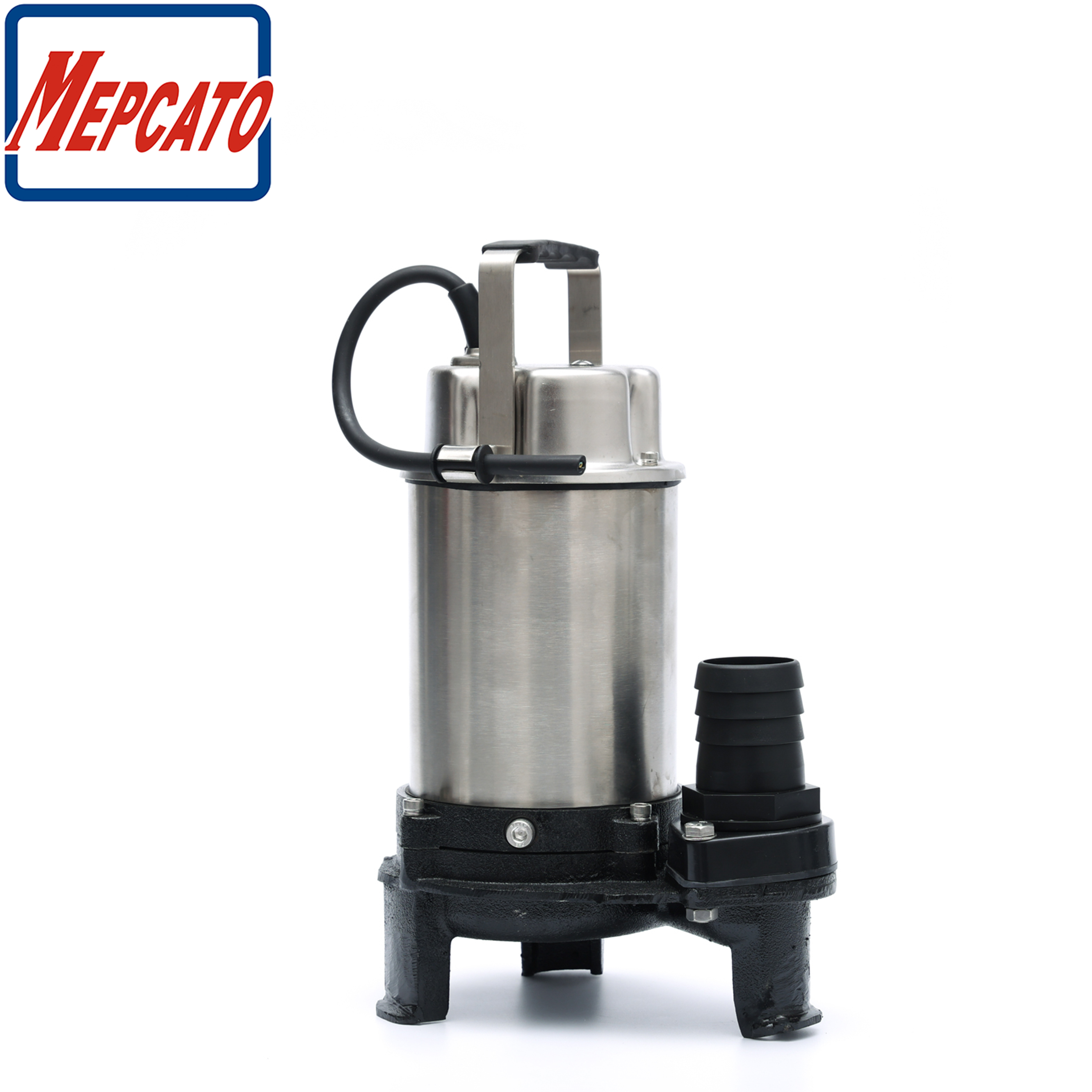

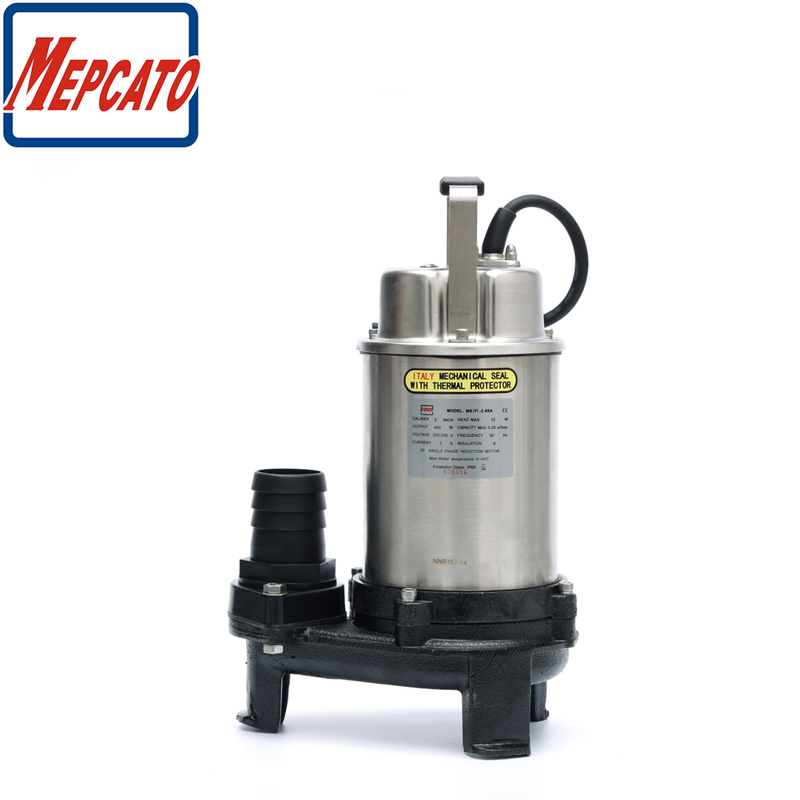

MS Series Sewage Submersible Pump
Large-capacity pump features durable cast iron solid three feet and dependable motor ensure a long, low-maintenance life
Continuous-duty motor with thermal protector, thermal sensors in the motor switch off the pump in the case of overheating
Adopt Italy import double face mechanical seal to ensure pump seal performance
Non-clogging Vortex impeller is designed to special water flow, muddy liquid and other various wastewater can be efficiently drained
Cable wires are upgraded by filling epoxy to raise humidity-resistance
Optional float switch for model MSF-2.4SA
Suitable for clean water, salt water and sewage water
Drainage of household wastewater, accumulated water of basement
Plant and general sewage pumping and sucking
Water treatment of waste water plant, drainage of water refining tank and drainage of various industrial waste water, etc.
MS Series Sewage Submersible Pump
Large-capacity pump features durable cast iron solid three feet and dependable motor ensure a long, low-maintenance life
Continuous-duty motor with thermal protector, thermal sensors in the motor switch off the pump in the case of overheating
Adopt Italy import double face mechanical seal to ensure pump seal performance
Non-clogging Vortex impeller is designed to special water flow, muddy liquid and other various wastewater can be efficiently drained
Cable wires are upgraded by filling epoxy to raise humidity-resistance
Optional float switch for model MSF-2.4SA
Suitable for clean water, salt water and sewage water
Drainage of household wastewater, accumulated water of basement
Plant and general sewage pumping and sucking
Water treatment of waste water plant, drainage of water refining tank and drainage of various industrial waste water, etc.
Model | MS Series | |
Pumping Fluid | Type of Fluid | Clean Water, Sewage Water, Industrial Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, Tungsten alloy cast iron |
Shaft Seal | Italy Double Face Mechanical Seal, Silicon Carbide | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 5m PVC or Rubber |
Model | Input | Output | Outlet | Voltage | Max Flow | Max Head | L x W x H | Weight | Max | ||
watt | Inch | V/Hz | L/min | m | cm | cm | cm | kg | mm | ||
MS(F/A)-2.4SA | 620 | 400 | 2 | 220V/50Hz | 250 | 11 | 24 | 19 | 39 | 11.7 | 10 |
Model | MS Series | |
Pumping Fluid | Type of Fluid | Clean Water, Sewage Water, Industrial Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, Tungsten alloy cast iron |
Shaft Seal | Italy Double Face Mechanical Seal, Silicon Carbide | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 5m PVC or Rubber |
Model | Input | Output | Outlet | Voltage | Max Flow | Max Head | L x W x H | Weight | Max | ||
watt | Inch | V/Hz | L/min | m | cm | cm | cm | kg | mm | ||
MS(F/A)-2.4SA | 620 | 400 | 2 | 220V/50Hz | 250 | 11 | 24 | 19 | 39 | 11.7 | 10 |
