A centrifugal pump operates by transferring rotational energy from a motor to a fluid using an impeller. As the impeller spins, centrifugal force pushes the liquid outward, increasing its pressure and velocity to move it efficiently through a piping system.
Moving liquids from one place to another efficiently is a fundamental requirement for many residential, commercial, and industrial operations. From managing wastewater to boosting hot water pressure in a residential building, reliable fluid transfer relies heavily on well-engineered mechanical systems. The most common technology used for this task is the centrifugal pump.
Understanding the mechanics behind this equipment is essential for facility managers, engineers, and homeowners alike. Knowing how the internal components work together allows you to make informed decisions about maintenance, system design, and equipment upgrades. It also helps you troubleshoot potential issues before they cause costly system failures.
This guide explains the step-by-step operation of these systems, outlines the critical internal components, and highlights the different types of equipment available for specific applications. You will learn exactly what to look for when selecting a water pump and how to match specific pump designs to your unique operational requirements.
The operation of a centrifugal water pump relies on a few core principles of fluid dynamics. The process begins when the motor activates and begins to rotate the pump shaft. Attached to this shaft is the impeller, a critical component featuring a series of curved blades.
Fluid enters the pump through the suction nozzle and flows directly into the center of the spinning impeller, an area known as the eye. The rotational movement of the impeller blades imparts kinetic energy to the fluid. This rotational energy creates a strong centrifugal force that flings the water outward toward the edges of the impeller at high speeds.
As the liquid exits the outer edges of the impeller, it enters the volute casing. The casing is specially designed with a gradually expanding area. This design slows the fluid down, effectively converting the high-velocity kinetic energy into pressure energy. The pressurized fluid is then forced out through the discharge valve and into the piping system.
A standard centrifugal pump consists of several essential parts that must work in perfect harmony.
The impeller is the central rotating component responsible for moving the liquid. Impellers can be open, semi-open, or enclosed, depending on the type of fluid being processed.
The volute casing surrounds the impeller and acts as a pressure containment vessel. It captures the fast-moving liquid and directs it toward the discharge port.
The motor provides the mechanical power needed to spin the shaft and the impeller.
Mechanical seals prevent the fluid from leaking out of the pump casing along the rotating shaft. High-quality systems often utilize imported components, such as Italian double face mechanical seals, to ensure long-lasting, leak-free operation.
Different environments require different pumping solutions. Selecting the right equipment involves matching the fluid properties with the correct pump design.
Handling wastewater requires robust equipment designed to prevent clogs. A Sewage Water Pump is specifically built to transport dirty water, silt, and solid waste. For example, the MS Series Wastewater Submersible Pump with Cutter utilizes a semi-vortex tungsten alloy cast iron impeller and a cutter mechanism. This allows it to handle solids up to 10mm in size, making it ideal for household wastewater drainage and industrial sewage applications. Another excellent option is the CP Series Sewage Submersible Pump with Stirring Device. It features an impact-resistant PVC strainer base and a stirring device that reduces blockages when moving sand-carrying water. These robust units often serve as a highly effective sump pump or residual water pump in demanding construction site environments.

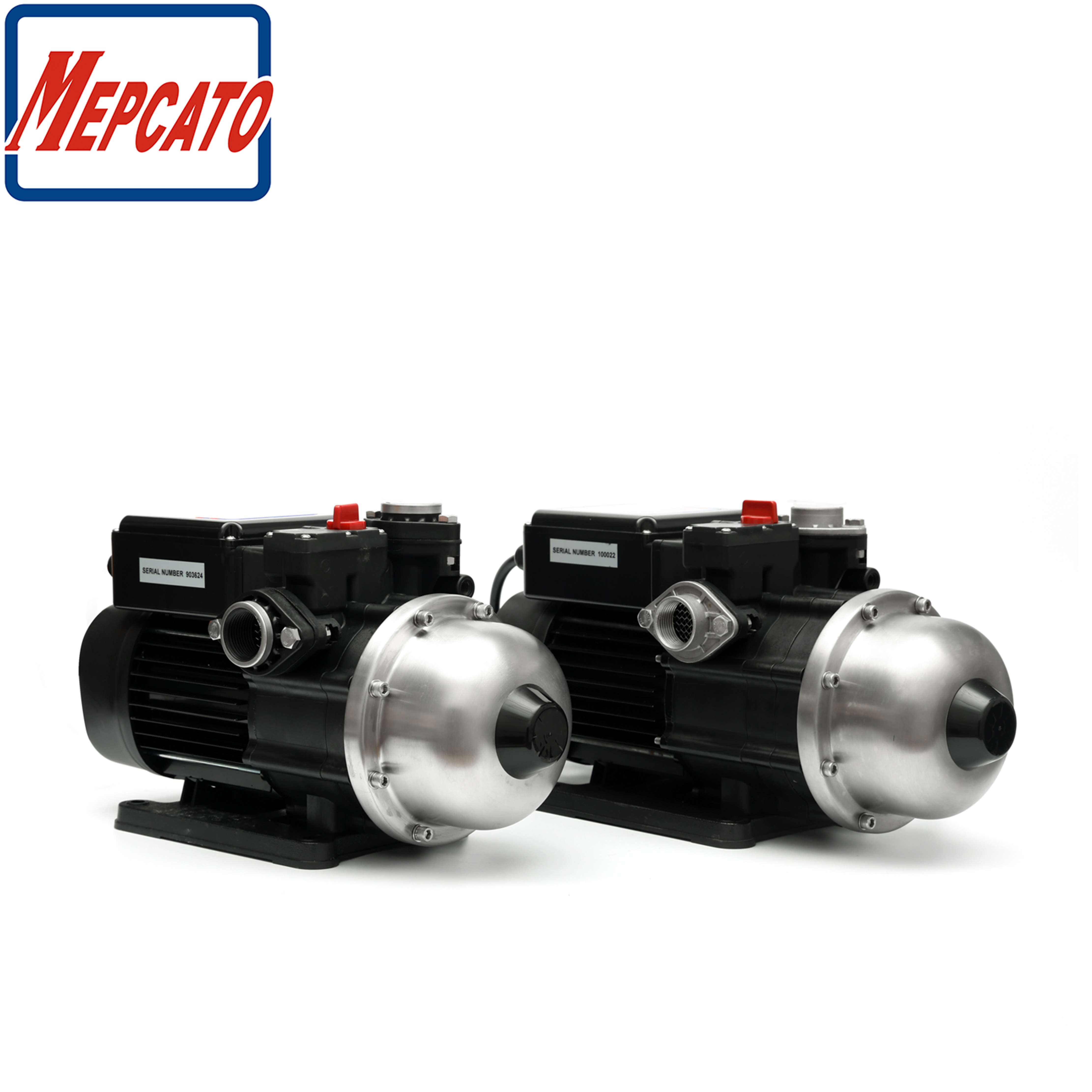

For clean water applications, a Horizontal Pump design offers easy access for maintenance and stable operation. Models like the MJD800 All-in-One Electronic Control Hot Water Booster Pump provide constant pressure for residential systems. The MJD800 features a built-in electronic controller, pressure tank, and a repeatable thermal protector. This compact unit operates effectively with fluid temperatures ranging from 4 to 90 degrees Celsius. In scenarios where the pump is located above the fluid source, a Self-Priming Pump is highly beneficial because it can automatically evacuate air from the suction line, ensuring a smooth and continuous flow without manual intervention.
Corrosion resistance is a major factor when dealing with harsh environments or continuous submersion. A Stainless Steel Pump offers superior durability against rust and degradation. Many premium submersible pumps use stainless steel casings and shafts to protect the internal motor and electronics, significantly extending the lifespan of the equipment even in saltwater or highly demanding industrial settings.
To better understand the capabilities of modern pumping equipment, review the specifications of these industry-standard models.
Model | Application Type | Power (W) | Max Capacity (L/min) | Max Head (m) | Max Solid Handling (mm) |
|---|---|---|---|---|---|
MJD800 | Clean Hot Water Booster | 750 | 84 | 31 | N/A (Clean water only) |
MS-2.4SA | Wastewater with Cutter | 620 | 250 | 11 | 10 |
CP-2.4SA | Sewage with Stirring Device | 620 | 217 | 12 | 7 |
Finding the right equipment means partnering with a trustworthy supplier. When evaluating a centrifugal pump manufacturer, look for comprehensive product testing, clear performance curves, and robust warranty terms. Sourcing from a reputable China centrifugal pump manufacturer can provide access to high-quality, CE-certified equipment at competitive prices. Companies that offer a diverse product catalog, including everything from clean water booster pumps to heavy-duty sewage submersible pumps, demonstrate a deep engineering expertise that you can rely on for your critical infrastructure.
Selecting the right water pump requires a clear understanding of your flow rate requirements, total head pressure, and the specific nature of the fluid you need to move. Assess your current system to identify any bottlenecks or areas where older equipment may be failing. If you frequently deal with clogged pipes, upgrading to a sewage submersible pump with a built-in cutter or stirring device will immediately improve reliability. For residential low-pressure issues, an all-in-one electronic booster pump provides a seamless fix. Contact a qualified pump specialist to discuss your specifications and ensure your next installation delivers maximum efficiency and longevity.
The main function of a centrifugal pump is to transfer fluids by converting rotational kinetic energy from a motor into hydrodynamic energy. This forces the liquid outward and through a discharge pipe at a higher pressure.
Yes, but only if it is specifically designed for it. A standard clean water pump will clog if exposed to debris. You must use a specialized sewage water pump equipped with a vortex impeller, a cutter mechanism, or a stirring device to safely process solids, mud, and sand.
Pressure loss typically occurs due to air trapped in the suction line, a blocked impeller, or a worn-out mechanical seal. Using a self-priming pump or ensuring your electronic controller has anti-cycling features can help prevent pressure drops and continuous start-stop issues.
