CSSF-250
Mepcato
on-Line
1 Year
7m
95L/Min
Motor
Stainless Steel
CE
1.5 inch
Mechanical Seal and Oil Seal

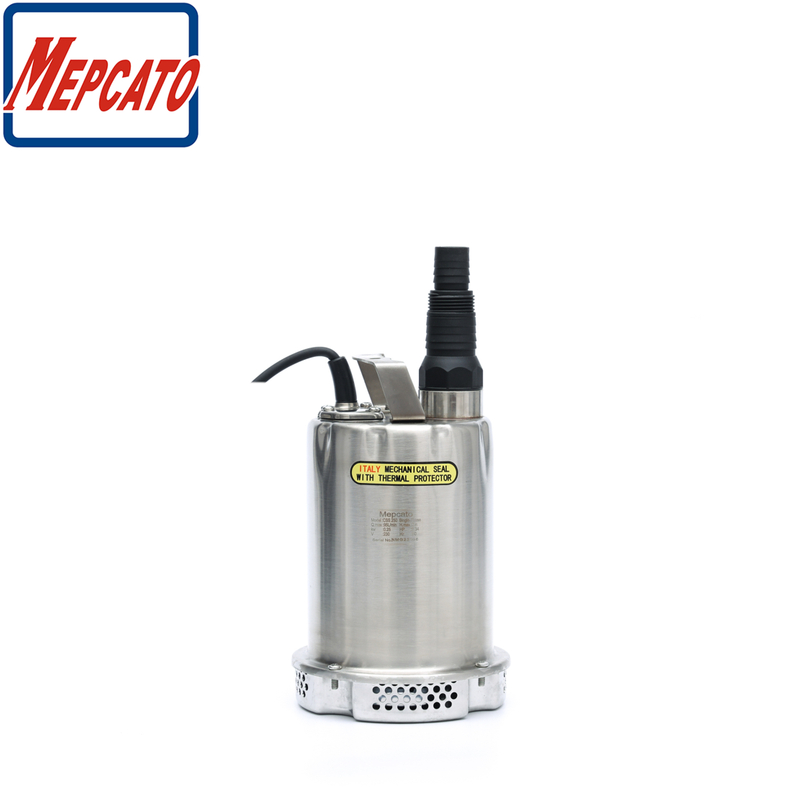

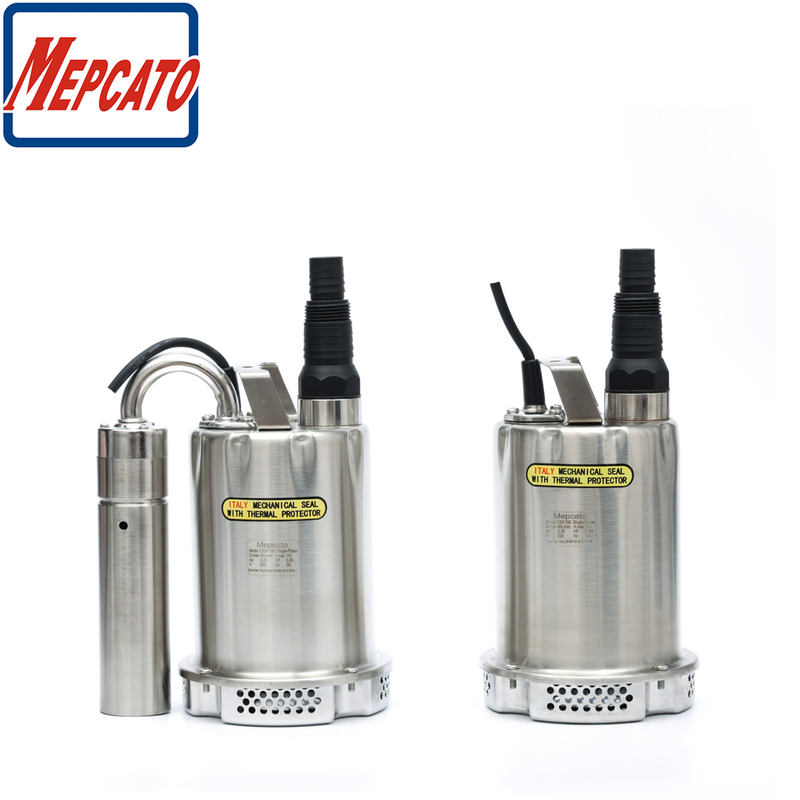

CSS-250 Submersible Pump
Light and compact design
All stainless steel pump body
Adopt Italy mechanical seal and oil seal to make double waterproof protection
Ideal for pits in confined spaces where floats do not work

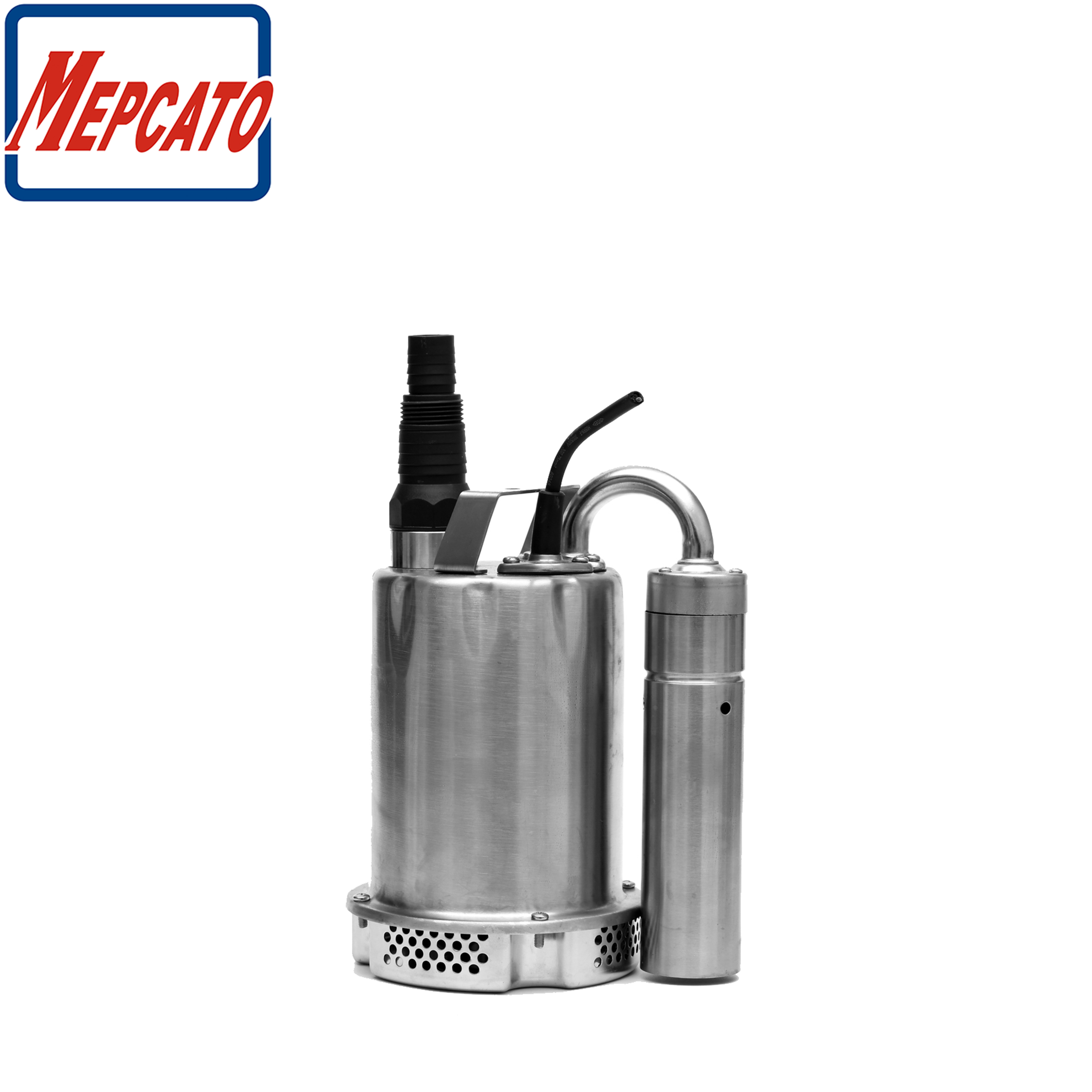

Vertical switch for models CSSF and FSSF
■ Suitable for clean water and salt wate
■ Water supply and disposal, water circulation and water change for crop farming, forestry and fishery use
■ To drain the accumulated water for basement of residence
■ To drain accumulated water for civil and architecture engineering
CSS-250 Submersible Pump
Light and compact design
All stainless steel pump body
Adopt Italy mechanical seal and oil seal to make double waterproof protection
Ideal for pits in confined spaces where floats do not work
Vertical switch for models CSSF and FSSF
■ Suitable for clean water and salt wate
■ Water supply and disposal, water circulation and water change for crop farming, forestry and fishery use
■ To drain the accumulated water for basement of residence
■ To drain accumulated water for civil and architecture engineering
Model | CSS-250 Series | |
Pumping Fluid | Type of Fluid | Clean Water and Slight Salt Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, PPO+Fiberglass |
Shaft Seal | Italy Mechanical Seal+Oil Seal, Silicon Carbide | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V, 380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Frame | Stainless Steel | |
Shaft | Stainless Steel | |
Cable | 3.5m PVC or Rubber |
Model | Input | Output | Caliber | Phase | Polarty | Voltage | Max Flow | Max Head | L x W x H | Weight | ||
Watt | Inch | Φ | P | V/Hz | L/min | m | cm | cm | cm | kg | ||
CSS-250 | 230 | 120 | 1.5 | 1 | 2 | 220V/50Hz | 95 | 7 | 15 | 15 | 25.5 | 4.7 |
CSSF-250 | 230 | 120 | 20.5 | 15 | 26 | 5.1 |
Model | CSS-250 Series | |
Pumping Fluid | Type of Fluid | Clean Water and Slight Salt Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, PPO+Fiberglass |
Shaft Seal | Italy Mechanical Seal+Oil Seal, Silicon Carbide | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V, 380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Frame | Stainless Steel | |
Shaft | Stainless Steel | |
Cable | 3.5m PVC or Rubber |
Model | Input | Output | Caliber | Phase | Polarty | Voltage | Max Flow | Max Head | L x W x H | Weight | ||
Watt | Inch | Φ | P | V/Hz | L/min | m | cm | cm | cm | kg | ||
CSS-250 | 230 | 120 | 1.5 | 1 | 2 | 220V/50Hz | 95 | 7 | 15 | 15 | 25.5 | 4.7 |
CSSF-250 | 230 | 120 | 20.5 | 15 | 26 | 5.1 |
