HOME-9A
Mepcato
on-Line
1 Year
7m
78L/Min
Motor
ABS Plastic
CE
Input: 120W Output: 90W
Submersible Pump
Plastic
3.5m
yellow
4 pc in a brown carton
portable, light, utility
water drainage, dewatering, water supply and disposal, water circulation
Mepcato
78L/min
clean water
0~40ºC
available
Build-in repeatable thermal protector
water transfer, water drainage, dewatering, irrigation
16x16x28cm
ABS plastic
95L/min
China
3/4inch, 1inch
90W
Mechanical Seal and Oil Seal

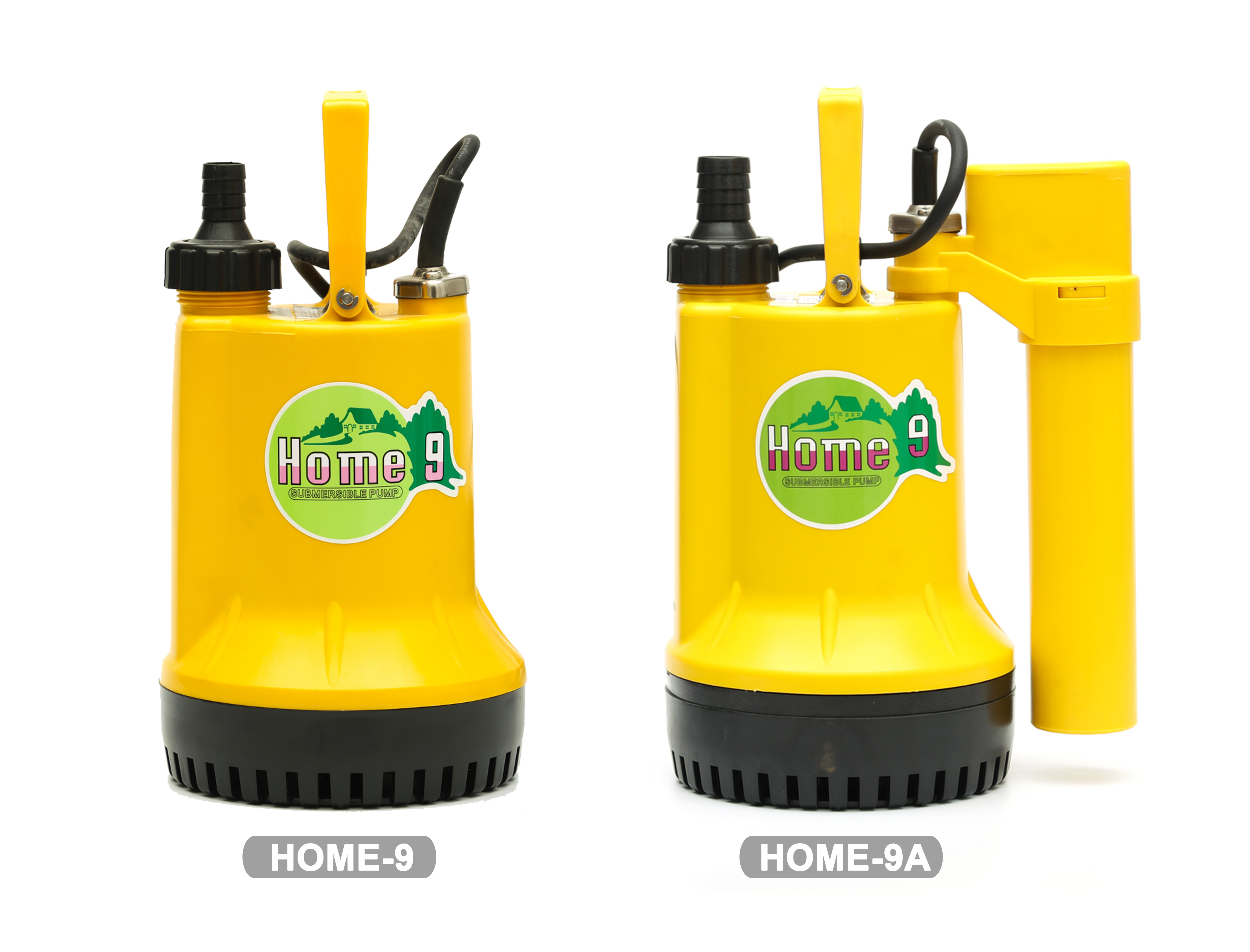

HOME-9/9A Plastic Submersible Pump
The application of special weather-proof pp mix fiberglass resin for housing ensures long lasting durability and glossy color, exhibits excellent durability under sunlight and prevents from corrosion.
Adopt professional control switch utilizing silicon controlled rectifier (SCR)
Adopt Italy imported mechanical seal and oil seal to make double waterproof protection
Large carrying handle gets your hold easily

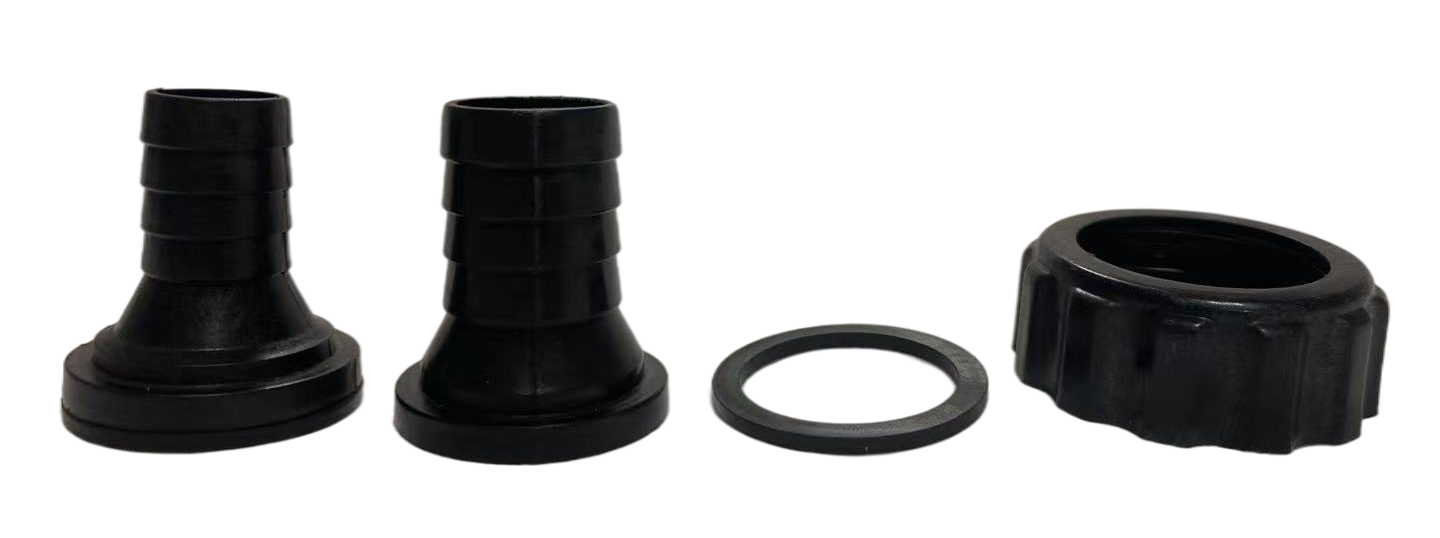

20mm and 25mm (3/4inch and 1inch) total 2 couplings as standard accessories, which will help to accept different kinds of water hose standing.
Vertical switch for model HOME-9A, HOME-11A, HOME-13A
■ Suitable for clean water
■ Household use as watering in the garden landscape, washing car, draining water from basement, maintenance of ponds and pools, cleaning boats and marine equipment.
■ Water supply and disposal, water circulation and water change for crop farming, forestry and fishery use.
■ Flooding in the basement, laundry room, office building toilet water basin tank drainage, other drain water of transfer water, etc.
HOME-9/9A Plastic Submersible Pump
The application of special weather-proof pp mix fiberglass resin for housing ensures long lasting durability and glossy color, exhibits excellent durability under sunlight and prevents from corrosion.
Adopt professional control switch utilizing silicon controlled rectifier (SCR)
Adopt Italy imported mechanical seal and oil seal to make double waterproof protection
Large carrying handle gets your hold easily
20mm and 25mm (3/4inch and 1inch) total 2 couplings as standard accessories, which will help to accept different kinds of water hose standing.
Vertical switch for model HOME-9A, HOME-11A, HOME-13A
■ Suitable for clean water
■ Household use as watering in the garden landscape, washing car, draining water from basement, maintenance of ponds and pools, cleaning boats and marine equipment.
■ Water supply and disposal, water circulation and water change for crop farming, forestry and fishery use.
■ Flooding in the basement, laundry room, office building toilet water basin tank drainage, other drain water of transfer water, etc.
Model | HOME-9/9A | |
Pumping Fluid | Type of Fluid | Clean Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, Nylon+Fiberglass |
Shaft Seal | Italy Mechanical Seal+Oil Seal, Silicon Carbide | |
Casing | PP+Fiberglass | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 3.5m PVC or Rubber with Plug |
Model | Input Power | Output Power | Outlet | Voltage | Max Flow | Max Head | L x W x H | Weight | ||
Watt | Inch | V/Hz | L/min | m | cm | cm | cm | cm | ||
HOME-9 | 180 | 90 | 3/4;1 | 220V/50Hz | 78 | 7 | 16 | 16 | 28 | 4 |
HOME-9A | 16 | 20 | 28 | 4.2 |
Model | HOME-9/9A | |
Pumping Fluid | Type of Fluid | Clean Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, Nylon+Fiberglass |
Shaft Seal | Italy Mechanical Seal+Oil Seal, Silicon Carbide | |
Casing | PP+Fiberglass | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 3.5m PVC or Rubber with Plug |
Model | Input Power | Output Power | Outlet | Voltage | Max Flow | Max Head | L x W x H | Weight | ||
Watt | Inch | V/Hz | L/min | m | cm | cm | cm | cm | ||
HOME-9 | 180 | 90 | 3/4;1 | 220V/50Hz | 78 | 7 | 16 | 16 | 28 | 4 |
HOME-9A | 16 | 20 | 28 | 4.2 |
