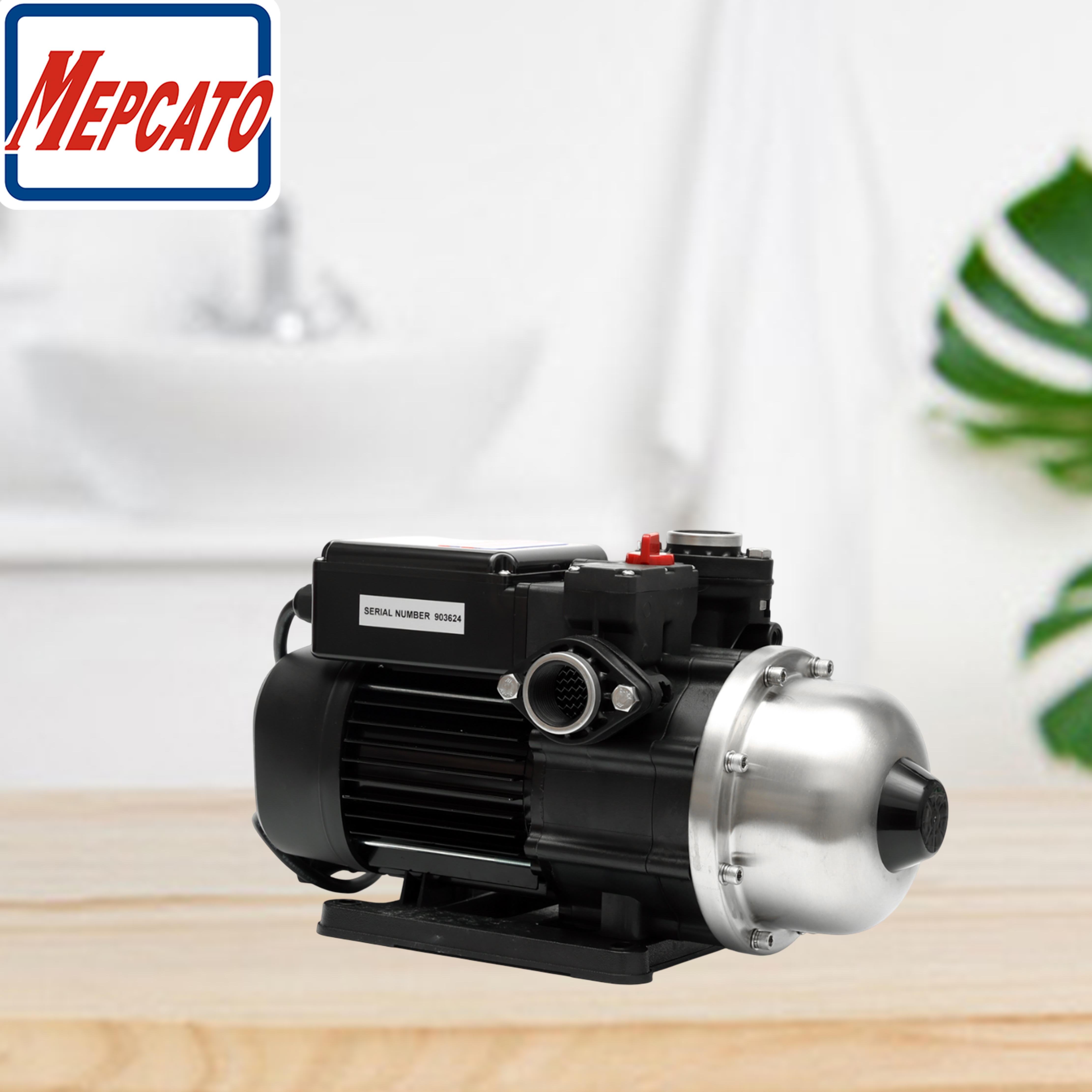

The MD/MJD series pumps are innovative solutions designed to address the issue of low or inadequate water pressure in various settings. They are engineered to provide efficient water supply and pressure boosting, making them highly versatile in residential, commercial, and light industrial applications.
2. Working Principle
2.1 Component Integration

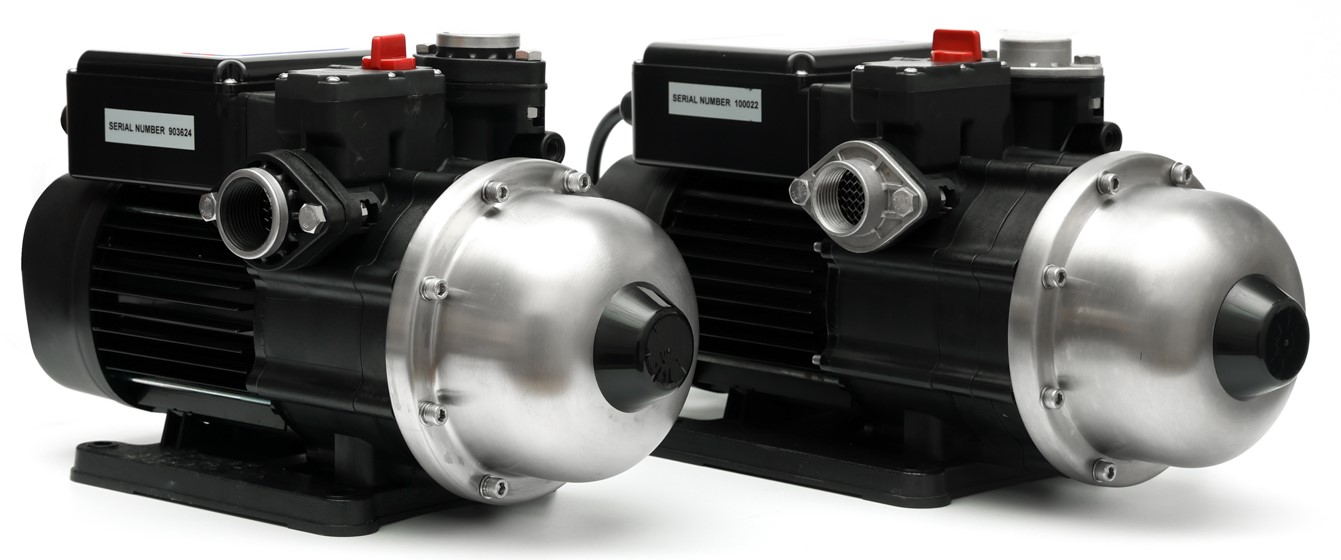

The MD/MJD series is a comprehensive all - in - one unit. It consists of a pump, motor, pressure tank, and an electronic controller. This integration allows for seamless operation and efficient performance.
The pump, which is the heart of the system, is responsible for moving the water. It is designed to handle clean, thin, non - abrasive, and non - aggressive liquids, such as potable water. The choice of materials for the pump is crucial, and in the MD/MJD series, top - quality corrosion - resistant materials are used. This ensures durability and long - term reliable operation, even in environments where the water might have a slightly corrosive nature.
The motor powers the pump. In single - phase motor models, it is equipped with a built - in thermal overload protection. This feature safeguards the motor from damage due to high operating temperatures and over - current situations. When the motor detects an abnormal increase in temperature or current, the thermal overload protection kicks in, cutting off the power supply to the motor. Once the conditions return to normal, the motor can resume operation.
The pressure tank plays a vital role in maintaining a stable water pressure. It stores a certain volume of water under pressure. When water is consumed in the system, the pressure in the tank drops. This drop in pressure is detected by the electronic controller.
2.2 Electronic Controller Function
The built - in electronic controller is the brain of the MD/MJD series pump system. It is designed to provide constant pressure. When water is being used in the connected system (e.g., faucets are opened, appliances that use water are operating), the water flow is detected. As soon as the flow rate reaches a certain threshold (usually around 0.75 gpm), the electronic controller signals the pump to start. The pump then begins to draw water from the source (either underground or surface water supplies) and pumps it into the system, replenishing the water in the pressure tank and maintaining the desired pressure.
The controller ensures that the pump operates continuously until there is no longer a demand for water. When all water - using devices are turned off, the water flow stops, and the pressure in the pressure tank gradually builds up. Once the pressure reaches the preset cut - off value, the electronic controller sends a signal to stop the pump. This automatic start - stop mechanism based on water consumption is highly efficient and convenient, eliminating the need for manual intervention.
Moreover, the MD/MJD series has an anti - cycling feature. This is particularly useful in situations where there might be a dripping tap or a minor leak in the system. Without this feature, a small but continuous water flow due to a leak could cause the pump to start and stop repeatedly, which not only wears out the pump components but also consumes unnecessary energy. The anti - cycling feature prevents such continuous starting and stopping by ignoring small, insignificant water flows that do not represent a real demand for water in the system.
In addition, the pump has a built - in dry - run shut - off with an automatic reset function. If the pump runs dry (i.e., there is no water in the suction line), it will automatically shut off to prevent damage to the pump's components, such as the impeller and the mechanical seal. After a certain period (usually 10 minutes), the pump will attempt to restart. If it fails to restart due to continued dry - run conditions after three attempts, it will shut down until liquid is detected. This protection sequence continues until water is available in the system again.
3. Applications
3.1 Residential Applications

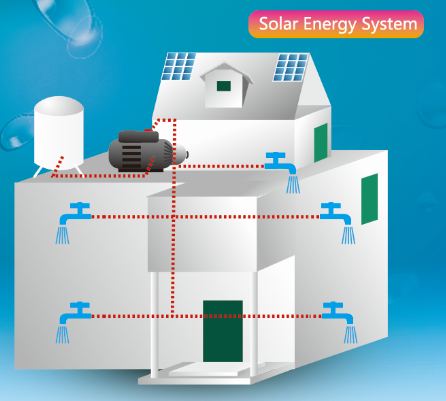

Apartment and House Water Supply: In many residential buildings, especially those in areas with low water pressure or in multi - story buildings, the MD/MJD series pumps can significantly improve the water supply situation. They can boost the pressure of the incoming water, ensuring that faucets, showers, and other water - using appliances function properly. For example, in an old apartment building where the water pressure on the upper floors is often weak, a MD/MJD series pump can be installed to provide a consistent and strong water flow, making daily activities such as showering and washing dishes more convenient.
Car Washing: For homeowners who prefer to wash their cars at home, a weak water pressure can make the task time - consuming and inefficient. The MD/MJD series pumps can boost the water pressure, allowing for a more powerful jet of water to clean the car more effectively. This not only saves time but also ensures a better - quality wash.
Sprinkling Water for Plants in the Garden: Gardeners often face challenges when watering plants, especially if the water pressure from the main supply is low. The MD/MJD series pumps can be used to increase the water pressure for garden sprinklers. This enables even distribution of water over a larger area, ensuring that all plants receive an adequate amount of water for healthy growth.
3.2 Commercial Applications
Hotels and Resorts: Hotels and resorts need to provide their guests with a comfortable experience, which includes a good water supply. The MD/MJD series pumps can be used to boost the water pressure in guest rooms, ensuring that showers and faucets have a strong and consistent water flow.
Office Buildings: Office buildings often have multiple floors and a large number of water - using fixtures, such as bathrooms and water coolers. The MD/MJD series pumps can be installed to ensure that the water pressure is sufficient throughout the building. This helps in preventing issues such as slow - running faucets or weak flush in toilets, which can be a nuisance for employees and visitors.
3.3 Light Industrial Applications
Small Manufacturing Plants: In small manufacturing plants that use water in their production processes, such as those involved in food and beverage production, textile manufacturing, or woodworking, a stable water pressure is crucial. The MD/MJD series pumps can be used to boost the water pressure for processes such as cleaning equipment, cooling machinery, or supplying water for specific manufacturing operations. For example, in a small food processing plant, the pumps can ensure that there is enough water pressure to clean food - handling equipment thoroughly, meeting hygiene standards.
Workshops: Workshops that require water for tasks such as metal cleaning, painting, or equipment maintenance can benefit from the MD/MJD series pumps. The increased water pressure can make these tasks more efficient. For instance, when cleaning metal parts in a workshop, a higher water pressure can remove dirt and grease more effectively, reducing the time and effort required.
Greenhouses: In greenhouse operations, proper irrigation is essential for plant growth. The MD/MJD series pumps can be used to boost the water pressure for greenhouse irrigation systems. This allows for more precise and efficient watering of plants, ensuring that they receive the right amount of water at the right time. The pumps can also be integrated with automated irrigation systems, further improving the efficiency of the watering process.
In conclusion, MEPCATO MD/MJD series automatic boosting pumps, with their unique principle of operation and wide range of applications, offer a reliable and efficient solution for water pressure - related problems in residential, commercial, and light industrial settings. Their design features, such as component integration, electronic control, and various protective functions, make them a popular choice for users seeking to improve their water supply systems.
