MD500T-4
Mepcato
on-Line
1 Year
31m
84L/min
Motor
CE
1.7m PVC Cable with Plug
clean water
4~40ºC
1 inch

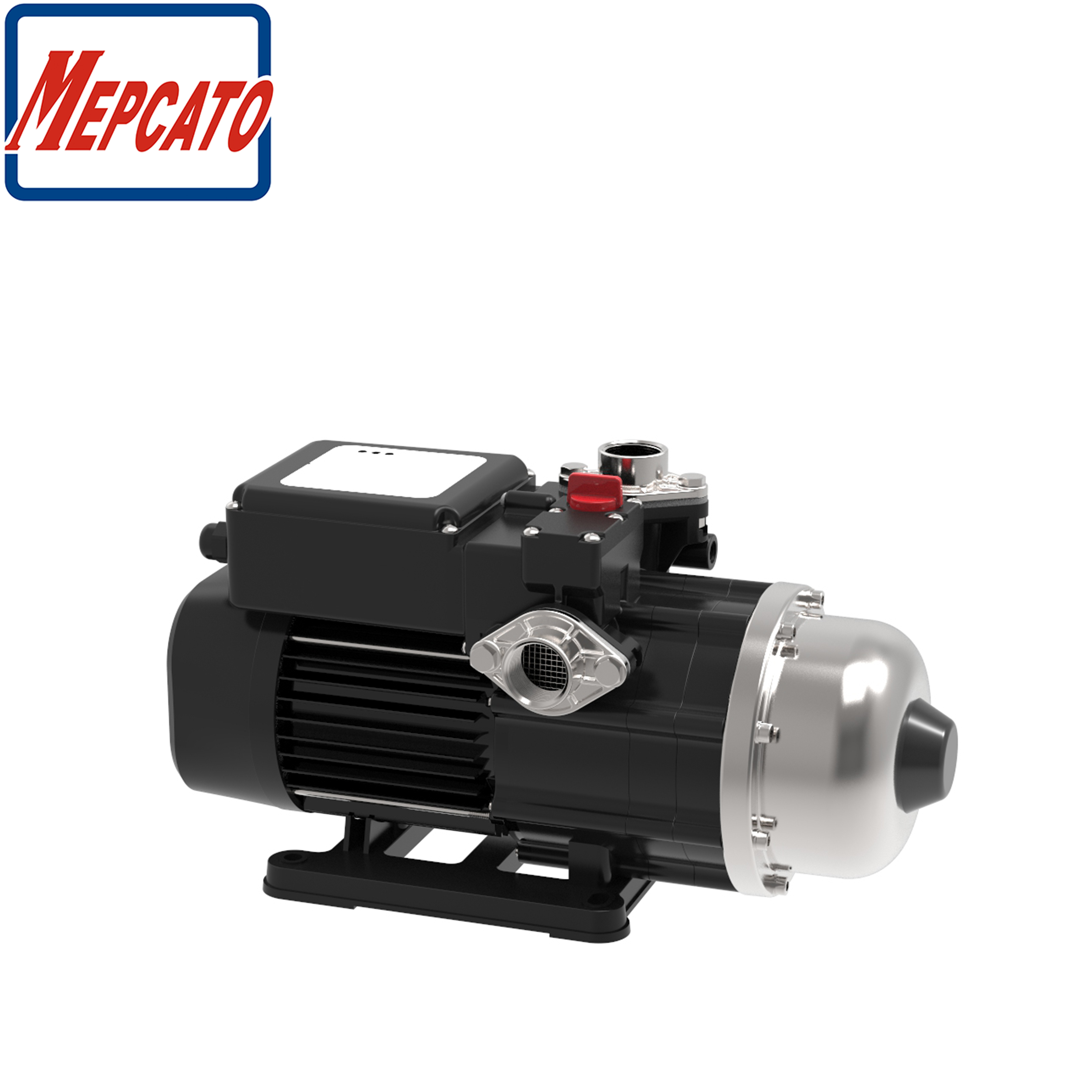

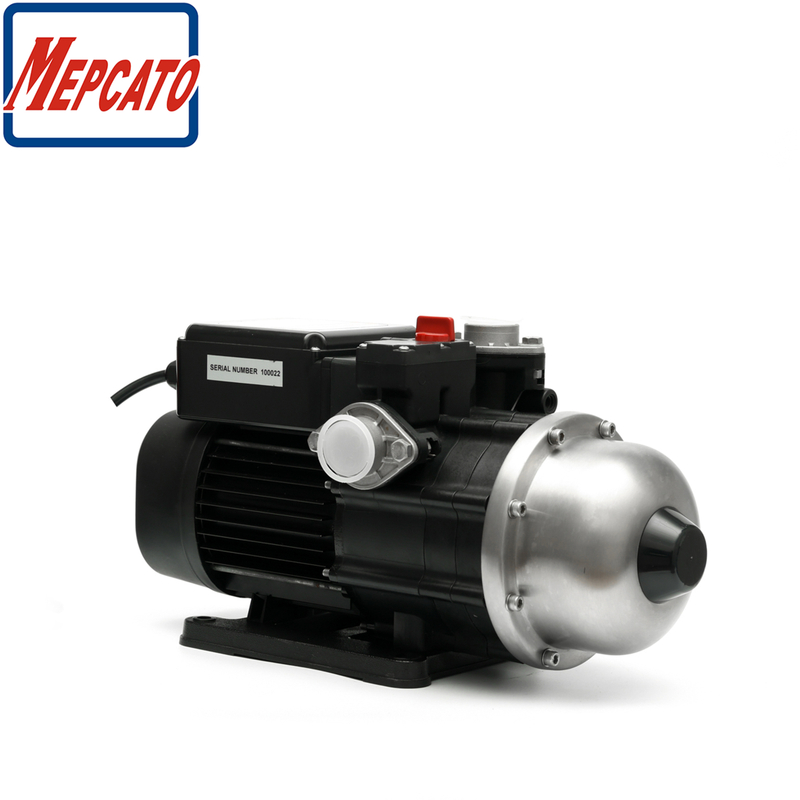

MD Electronic Control Booster Pump
■ The MD water pump is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller.
■ The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.
Operation Conditions
Suitable liquid: potable water or other clean or non-corrosive liquids.
Ambient temperature: Max. +40°C
Liquid temperature: +4°C ~ +40°C
Relative humidity: Max. 85% (RH)
This MD Series are designed for pressure boosting in residential and commercial applications.
Adopt strong multistage plastic impellers, suitable for cold water (up to +40℃).
Compact design and quiet operation.
The motor has built-in thermal overload to protect against high operating temperatures.
It has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.
Indicator light can easy to check the pump status
■ Boosting from mains: Increases the water pressure delivered by city mains
■ Boosting from tanks: Increases water pressure from roof tanks and ground tanks, including rainwater tanks
■ Boosting from wells: Pumps water from a depth of 6 meters, with foot valve and pump suction piping filled with water.
MD Electronic Control Booster Pump
■ The MD water pump is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller.
■ The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.
Operation Conditions
Suitable liquid: potable water or other clean or non-corrosive liquids.
Ambient temperature: Max. +40°C
Liquid temperature: +4°C ~ +40°C
Relative humidity: Max. 85% (RH)
This MD Series are designed for pressure boosting in residential and commercial applications.
Adopt strong multistage plastic impellers, suitable for cold water (up to +40℃).
Compact design and quiet operation.
The motor has built-in thermal overload to protect against high operating temperatures.
It has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.
Indicator light can easy to check the pump status
■ Boosting from mains: Increases the water pressure delivered by city mains
■ Boosting from tanks: Increases water pressure from roof tanks and ground tanks, including rainwater tanks
■ Boosting from wells: Pumps water from a depth of 6 meters, with foot valve and pump suction piping filled with water.
Model | MD Series | |
Inlet/Outlet Coupling | Stainless Steel | |
Pumping Fluid | Type of Fluid | Clean Water free from solids or abrasive substances and non aggressive |
Fluid Temperature | 4~40℃ | |
Pump | Impeller | PPO plastic Stainless Steel |
Shaft Seal | Italy Mechanical Seal | |
Casing | PPO | |
Bearing | Deep Groove Ball Bearings | |
Control method | PCB control with Indicator Light | |
Pressure switch | USA Mirco Switch | |
Valve (build-in) | Non-return valve | |
Thermal protector | Build-in for water temperature check | |
Pressure tank | Stainless Steel | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Protection Device | Repeatable Thermal Protector | |
Frame | Aluminum Alloy Die-casing | |
Shaft | Stainless Steel | |
Cable | 1.7m PVC Cable with Plug |
Model | Input | Output Power | Outlet/Inlet | Voltage | Max Suction | Max Head | Max Capacity | L x W x H | Weight | |||
watt | watt | Inch | V/Hz | m | m | L/min | m³/h | cm | cm | cm | kg | |
MD300 | 300 | 200 | 1 | 220-240V/ 50Hz | 6 | 26 | 65 | 3.8 | 40 | 18 | 23.5 | 8.5 |
MD300T-4 | 430 | 300 | 35 | 60 | 3.6 | 42.5 | 18.5 | 23.5 | 9.2 | |||
MD500 | 680 | 500 | 31 | 84 | 5 | 40 | 18 | 23.5 | 9.8 | |||
MD500T-4 | 680 | 500 | 38 | 82 | 4.9 | 42.5 | 18.5 | 23.5 | 10.3 | |||
MD900 | 950 | 800 | 35 | 100 | 6 | 40 | 18 | 23.5 | 11.1 | |||
MD1100 | 1100 | 950 | 47 | 105 | 6.3 | 42.5 | 18.5 | 23.5 | 12.8 |
