| Quantity: | |
|---|---|
PB30-L
Mepcato
on-Line
1 Year

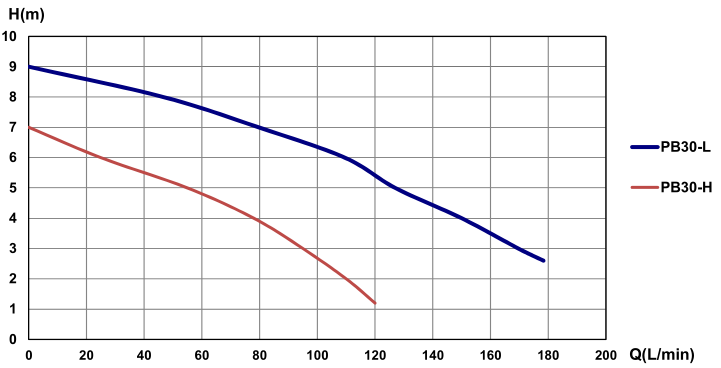

9m
180L/min
Motor
Plastic+Stainless Steel
CE
5m pvc or rubber
clean water, salt water and sewage water
China
40mm
50mm
180L/MIN
250W
Italy Double Face Mechanical Seal

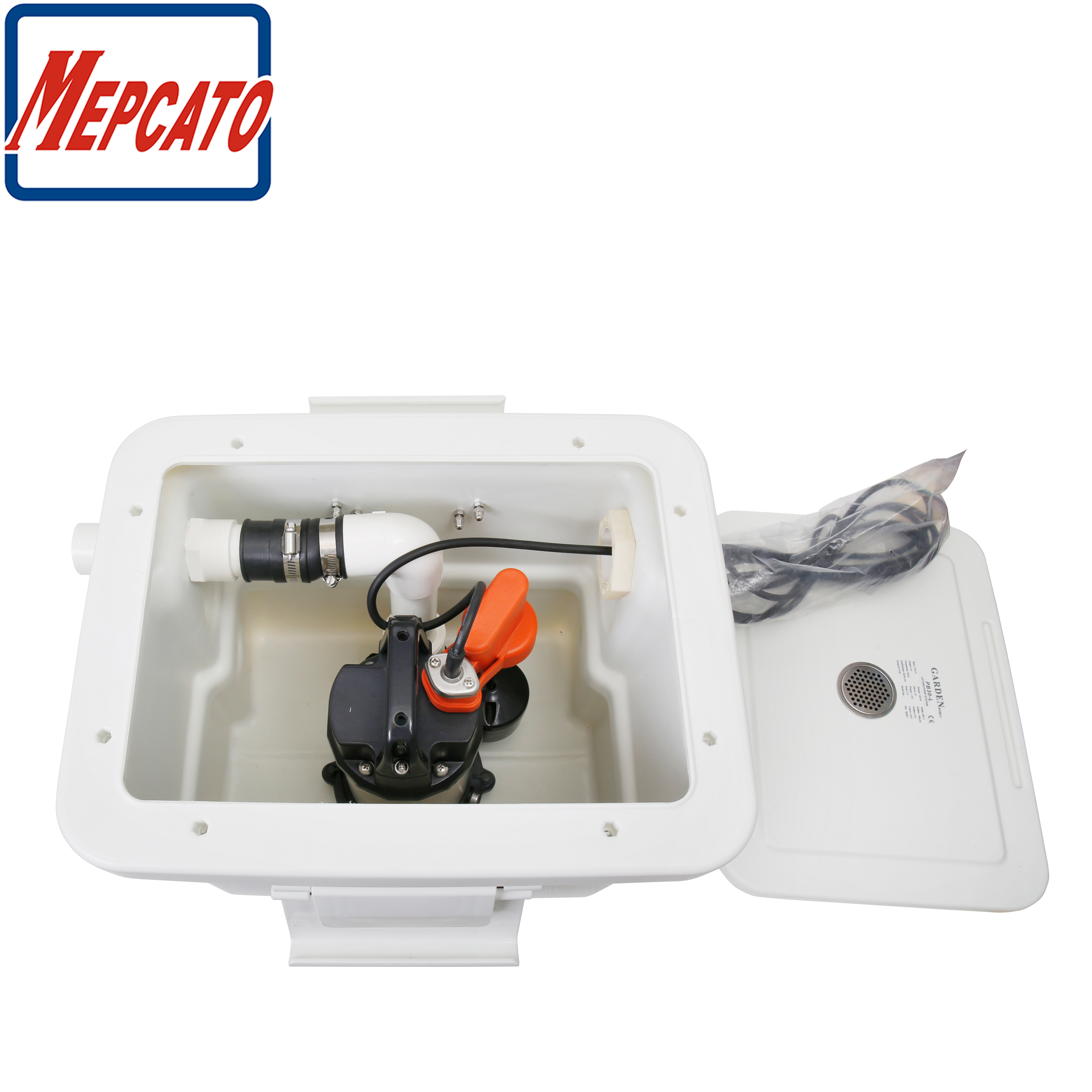

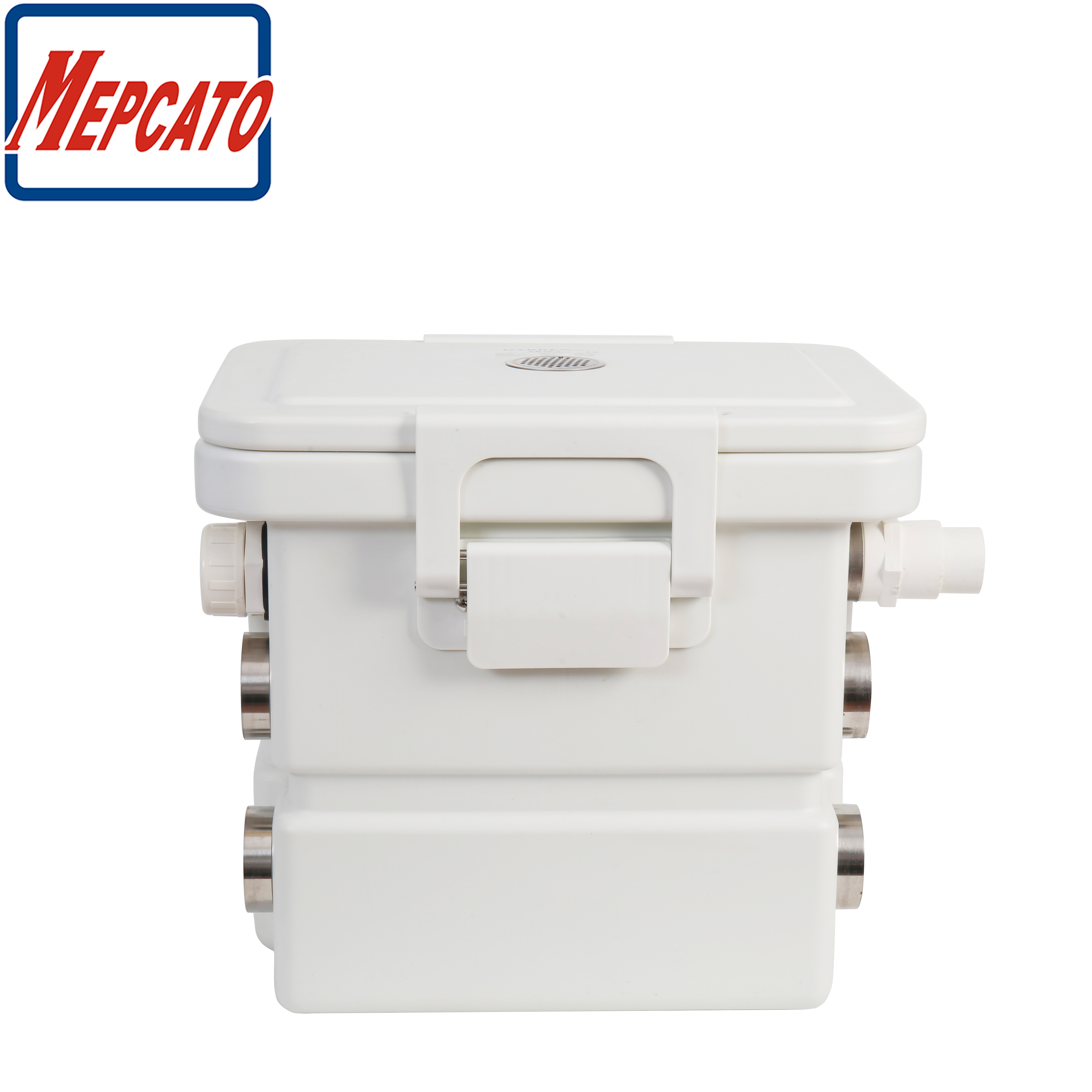

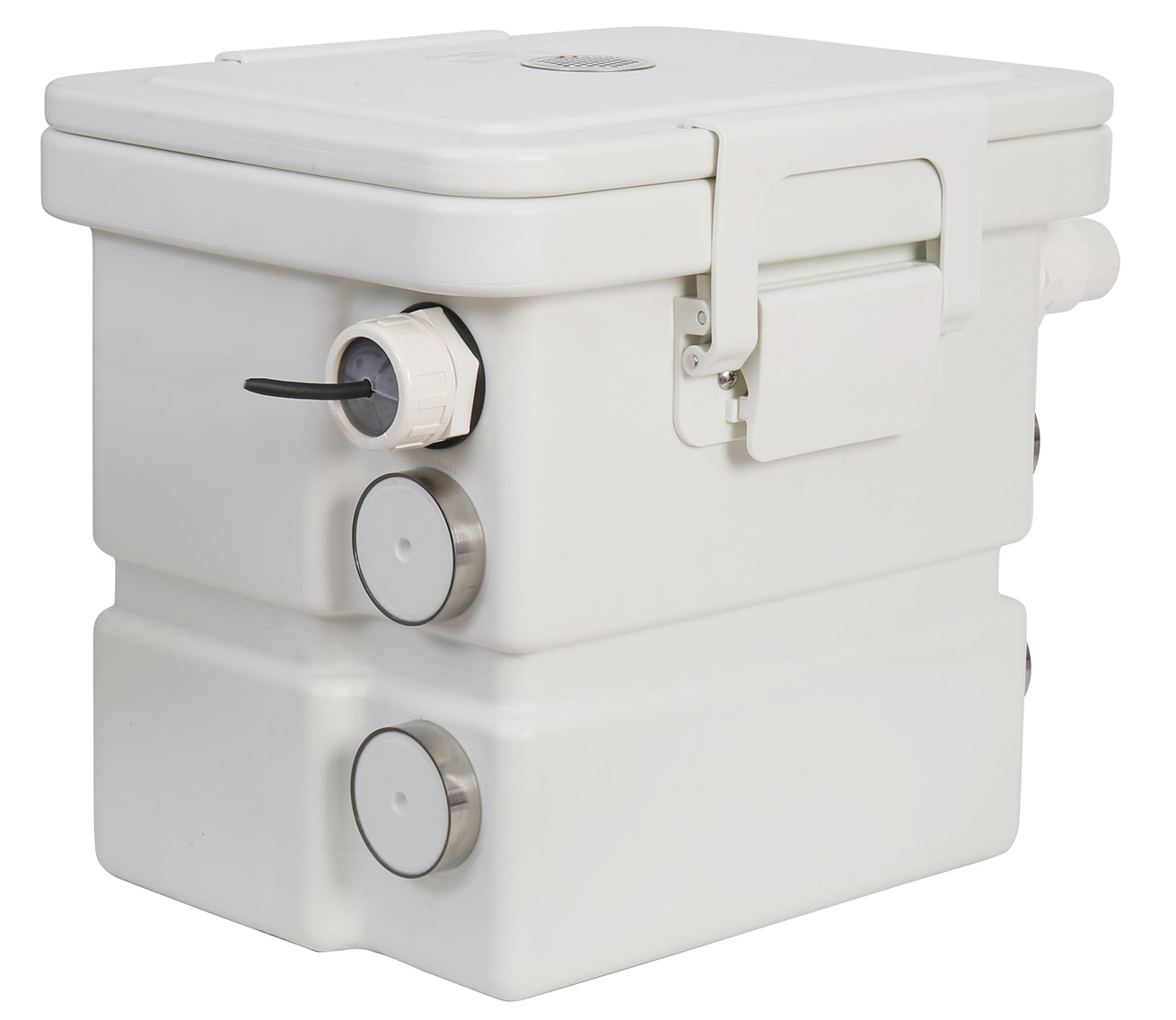

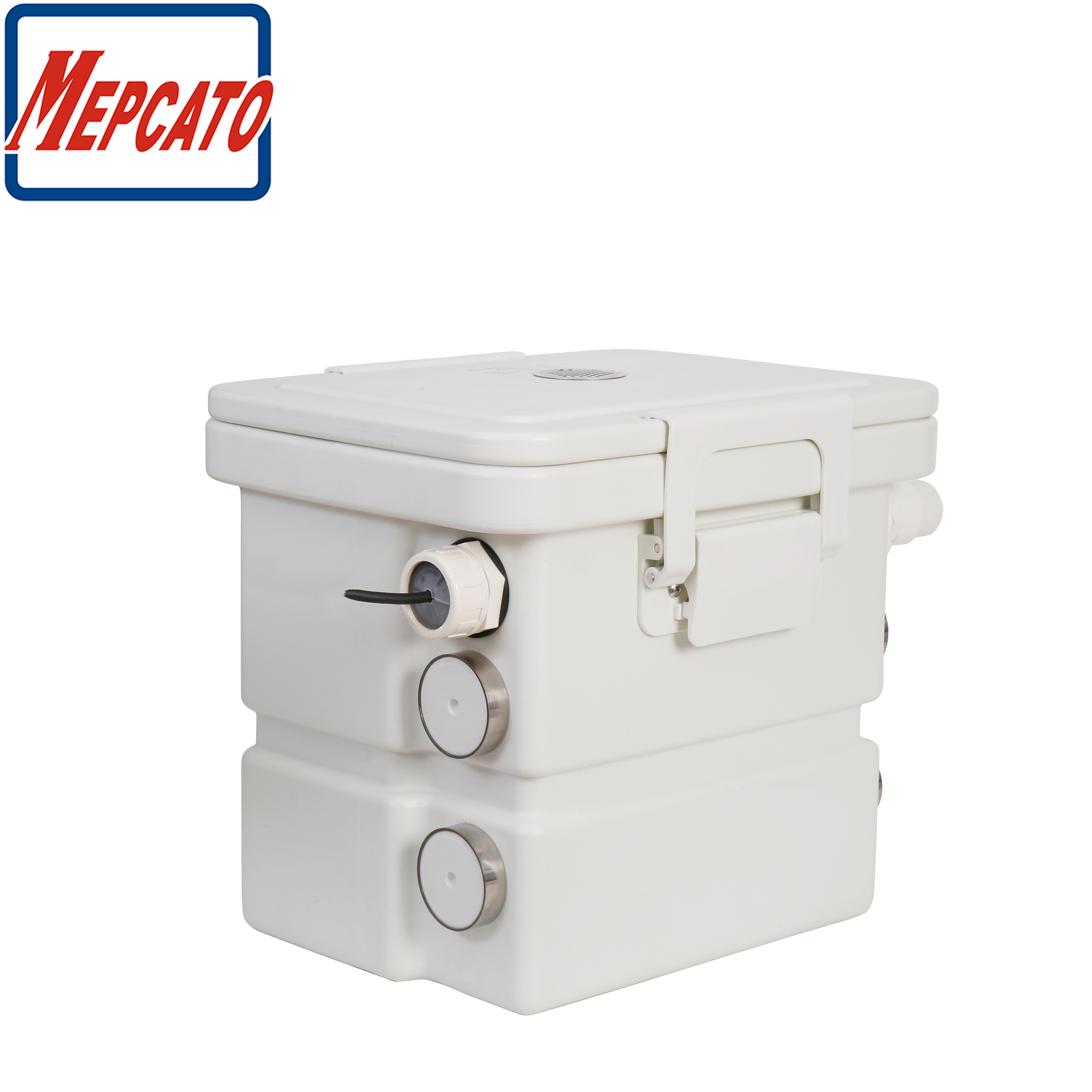

PB30 LIFTING PUMP
The PB-30 Lifting Pump is designed to remove clean water or wastewater from lower to higher elevations when gravity-based drainage is impractical. It can lift low-level sewage to high-level sewer pipes or centralized sewage treatment systems, effectively solving the problem of insufficient natural drainage slope.

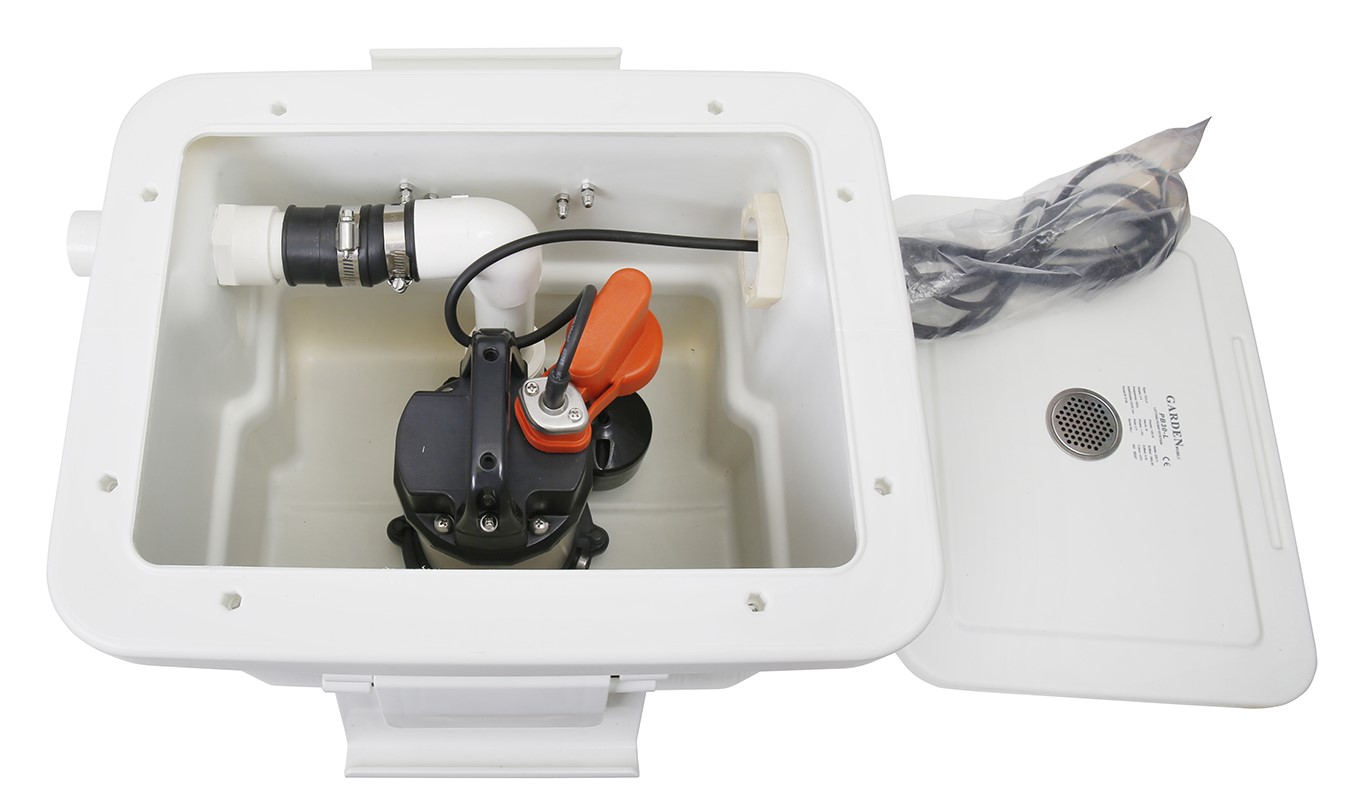

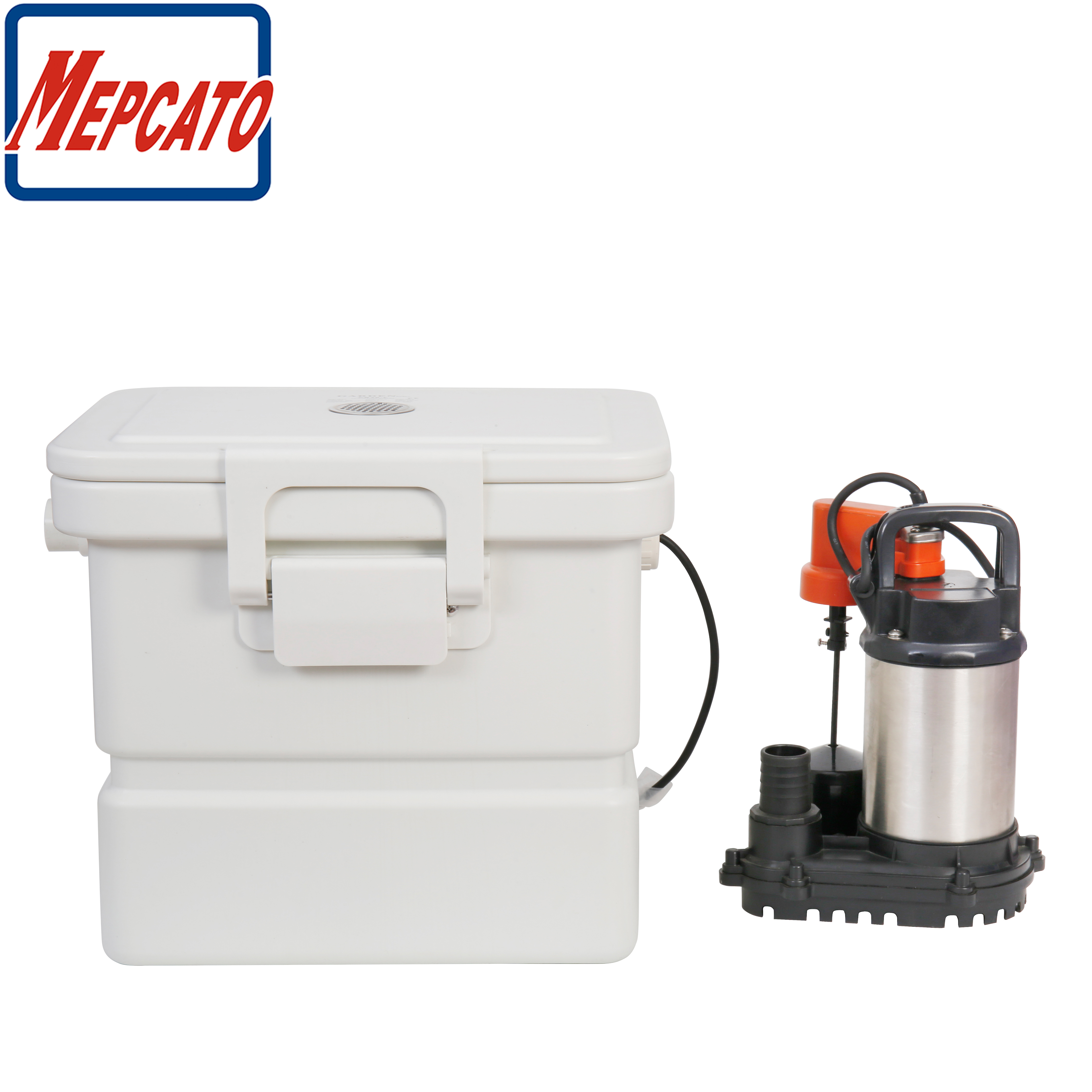

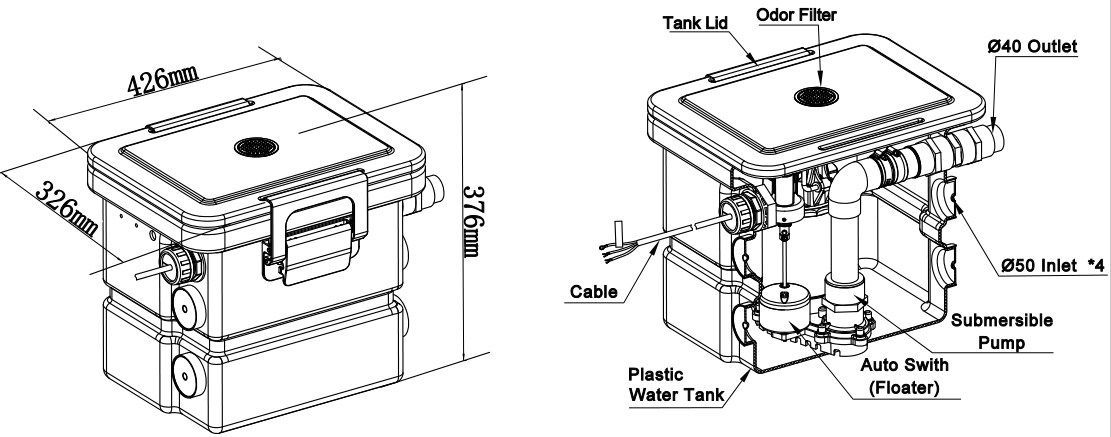

It is mainly composed of an automatic submersible pump, plastic sealed water tank and control system.

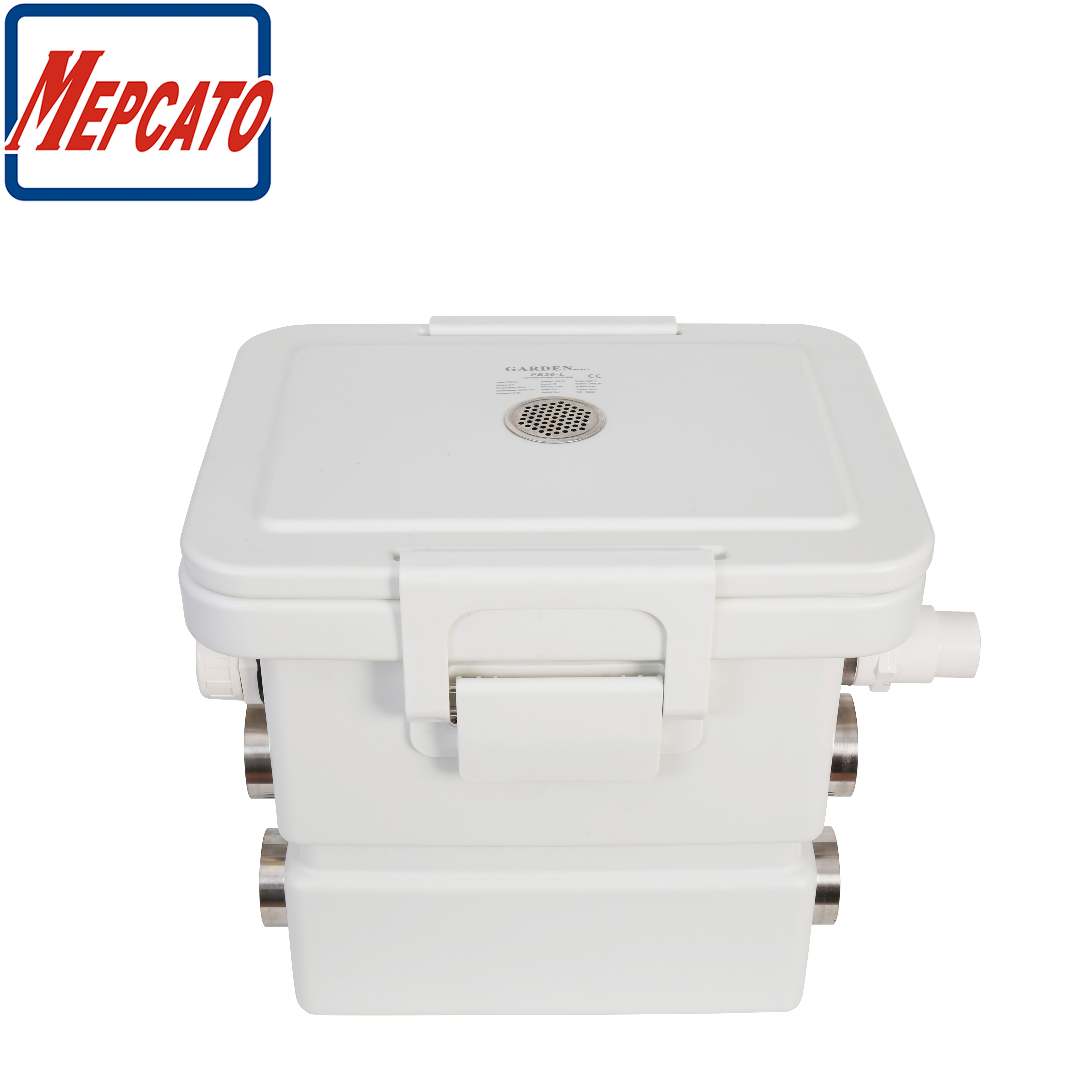

27L full PE corrosion resistant water tank.
Optional low-water-start submersible pumps 230W and 440W of different power are used with the wastewater treatment. Compact design in small dimension with flexibility & efficient pumping provide a neat and elegant private space.
The four water inlets can be connected to the water transport pipes of multiple sanitation equipment at the same time to achieve one machine pumping.
Odor Filter with activated carbon can reduce the smelly and keep the air clean.

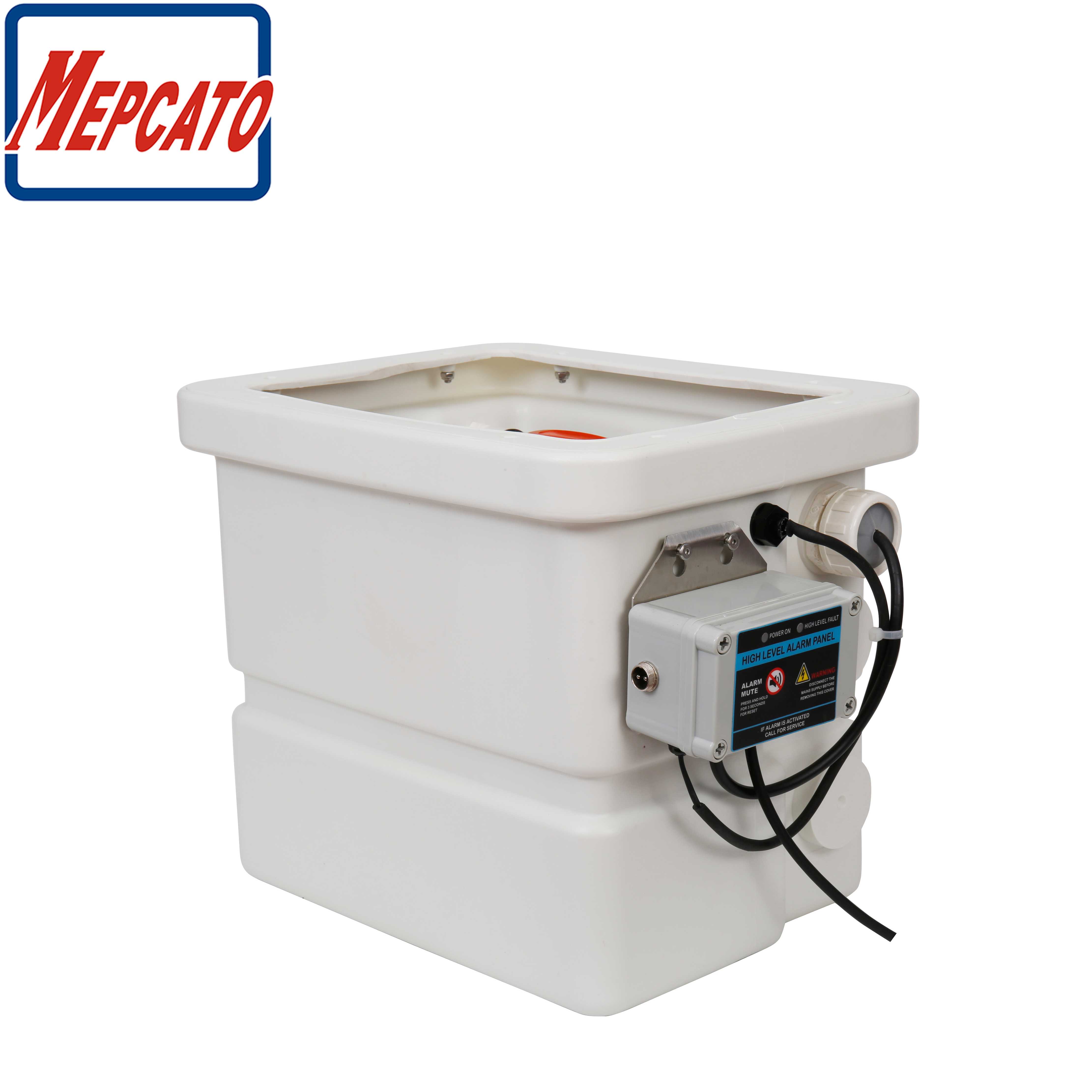

Optional anti-overflow alarm device. When the dirt is not cleaned up in time and the pump is not working properly, it will remind the user to deal with it by flashing lights or buzzing.
Applicable Fluid：Clean water, sewage and dirty water containing soft solids.
Fluid Temperature：0~40℃

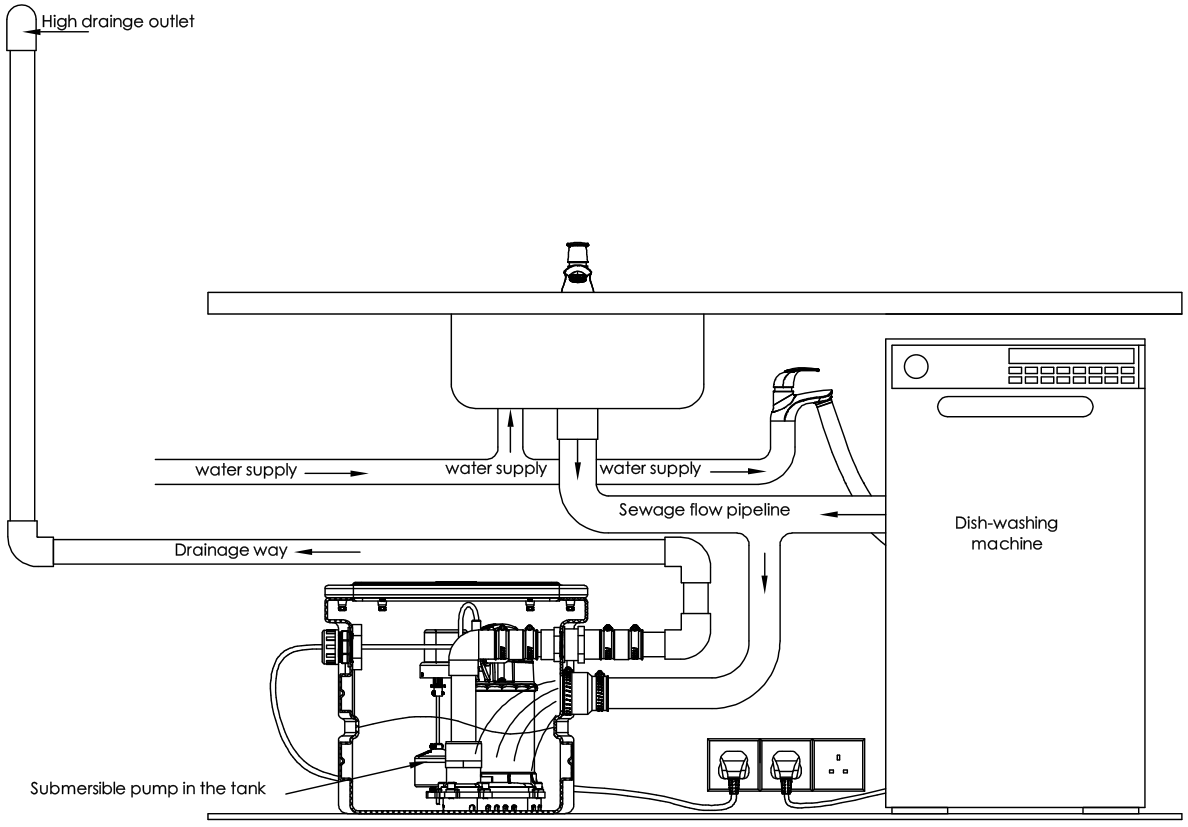

New or old building drainage projects with basement sewage pumped to the ground. PB30-H is suitable for domestic water pumping and drainage of toilet, kitchen, hotel, theater, commercial and residential, school, hospital and other health facilities.
Sewage discharge device for indoor sewage pumping to outdoor. PB30-L sewage submersible pump is suitable for micro-sewage plant, feedlot farm and other multi-pipe wastewater pumping system.
How does the PB30 sewage lift pump work?
Sewage flows into the sealed collecting tank automatically.
When the water level rises to the preset height, the float switch activates the pump.
Strong hydraulic pressure pushes sewage upwards and forwards to the main drainage pipe.
As the water level drops to the low level, the pump shuts down automatically.
It repeats the cycle to realize continuous automatic sewage lifting and discharging.
Applications of PB30 Sewage Lift Pump
Household indoor use
Drain sewage from basement, kitchens, laundry rooms and underground garages.
Commercial Buildings
Shopping malls, office buildings, hotels, restaurants, KTVs and other public places for domestic wastewater discharge.
Catering & Kitchen Use
Drain oil-contained kitchen wastewater in canteens, restaurants and food processing sites.
Construction & Engineering Sites
Discharge construction sewage, muddy water and accumulated rainwater on construction sites.
Rural & Remote Areas
Household sewage discharge in villages, villas and areas without complete municipal sewer pipelines.
Industrial Production
Discharge light industrial wastewater, workshop cleaning wastewater and production domestic sewage.
Public Facilities
Subways, underground comprehensive pipe corridors, scenic spot restrooms and community public toilets
Advantages of PB30 Sewage Lift Pump
Lightweight & easy installation
No need for traditional gravity drainage slope, can be installed anywhere indoors or underground.
Fully automatic operation
Controlled by float switch, auto start and stop, no manual supervision needed.
Space-saving & quiet
Compact design, low running noise, suitable for narrow hidden installation places.
Wide applicability
Can discharge domestic sewage, kitchen wastewater, rainwater and construction muddy water.
Excellent sealing & anti-odor
Integrated plastic tank has tight connection, effectively prevents sewer odor leakage.
Low maintenance cost
Durable materials, stable performance, long service life and easy daily maintenance.
Save construction cost
Avoid large-scale pipeline reconstruction and ground excavation work.
