75HPSA-2.15S/2.25S
Mepcato
on-Line
1 Year
3.2m
0.66m³/min
Motor
Stainless Steel
CE
150/250W
Submersible Pump
Stainless steel
5m rubber
clean water and sea water
0~40ºC
China
75mm
Mechanical Seal and Oil Seal

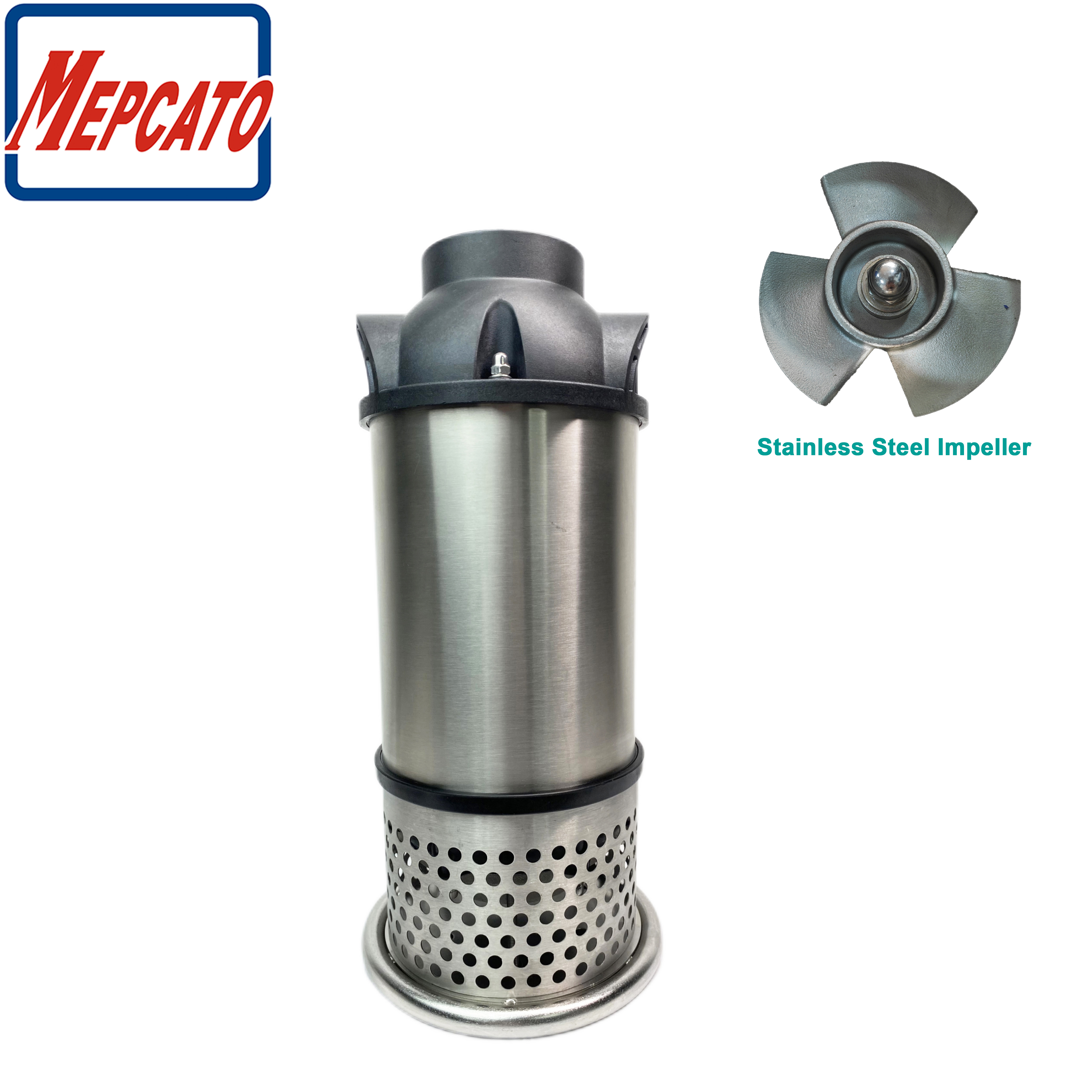

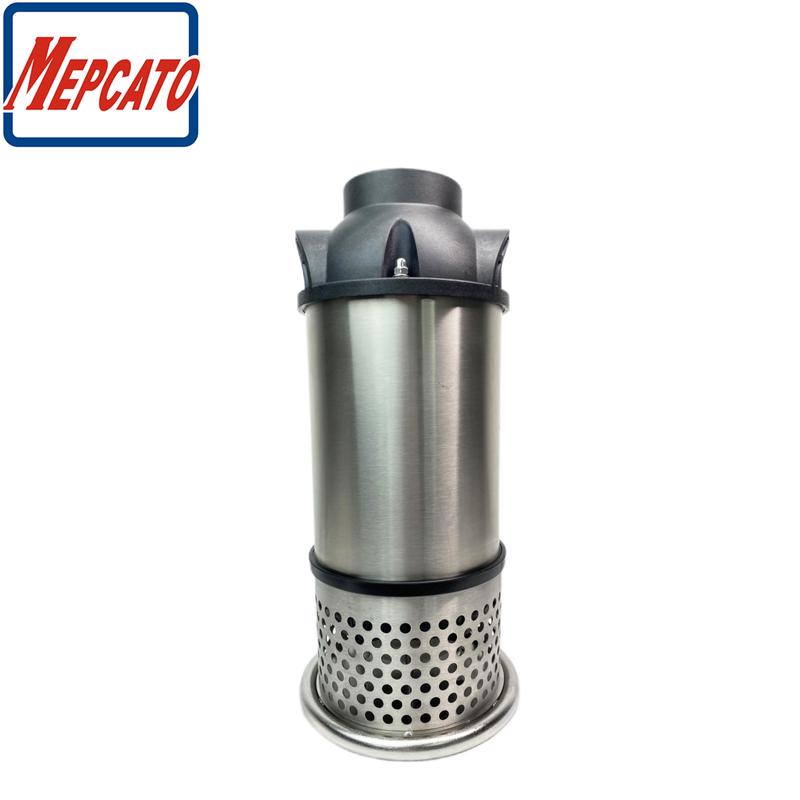

75HPSA Series Submersible Axial Flow Pump
■ Axial Flow Design
Adopt axial flow impeller to meet low pump head and large water volume capacity
■ SUS316 Motor Casing and Motor Shaft
Ensure excellent anti-corrosion and wear-resistance performance in sea water
■ Italy Imported Dual Mechanical Seal
Provide better protection for pump motor in long-term operation
■ Special Sand Protective Cover Design
Prevent sand particles being brought into mechanical seal form motor shaft, so as to better protect the mechanical seal and prolong the service life of the pump
■ Quality Filling Epoxy Cable Wires
Raise humidity-resistance
■ Robust Construction and Compact Cylindrical Design
Durable and offer flexibility in confined space
■ Suitable for clean water, sea water, river water and agricultural water
■ Water Circulation for oxygen replenishing, water supply and drainage in fish pond
■ Agriculture Irrigation, water circulation in gardening
■ Water supply and reconstruction of water pipelines and bypass water pipelines, and other large water volume discharge project
Aquaculture pump
Sea Water Pump
Fishpond Pump
75HPSA Series Submersible Axial Flow Pump
■ Axial Flow Design
Adopt axial flow impeller to meet low pump head and large water volume capacity
■ SUS316 Motor Casing and Motor Shaft
Ensure excellent anti-corrosion and wear-resistance performance in sea water
■ Italy Imported Dual Mechanical Seal
Provide better protection for pump motor in long-term operation
■ Special Sand Protective Cover Design
Prevent sand particles being brought into mechanical seal form motor shaft, so as to better protect the mechanical seal and prolong the service life of the pump
■ Quality Filling Epoxy Cable Wires
Raise humidity-resistance
■ Robust Construction and Compact Cylindrical Design
Durable and offer flexibility in confined space
■ Suitable for clean water, sea water, river water and agricultural water
■ Water Circulation for oxygen replenishing, water supply and drainage in fish pond
■ Agriculture Irrigation, water circulation in gardening
■ Water supply and reconstruction of water pipelines and bypass water pipelines, and other large water volume discharge project
Aquaculture pump
Sea Water Pump
Fishpond Pump
Model | HPSA Series | |
Pumping Fluid | Type of Fluid | Clean Water and Sea Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Stainless Steel |
Shaft Seal | Mechanical Seal+Oil Seal | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Head and Frame | Stainless Steel | |
Shaft | Stainless Steel | |
Cable | 5m with Plug |
Model | Dishcarge | Input Power | Output Power | Voltage/ | Max Head | Max | Net | L x W x H | C.W.I | ||
mm | Watt | V/Hz | m | m³/min | kg | cm | cm | cm | mm | ||
75HPSA-2.15S | 75 | 270 | 150 | 220V/50Hz | 3.2 | 0.47 | 10.7 | 19 | 13.9 | 39.6 | 200 |
75HPSA-2.25S | 75 | 400 | 250 | 0.66 | 11.2 | 20 | 19 | 39.6 | 200 |
Model | HPSA Series | |
Pumping Fluid | Type of Fluid | Clean Water and Sea Water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Stainless Steel |
Shaft Seal | Mechanical Seal+Oil Seal | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Head and Frame | Stainless Steel | |
Shaft | Stainless Steel | |
Cable | 5m with Plug |
Model | Dishcarge | Input Power | Output Power | Voltage/ | Max Head | Max | Net | L x W x H | C.W.I | ||
mm | Watt | V/Hz | m | m³/min | kg | cm | cm | cm | mm | ||
75HPSA-2.15S | 75 | 270 | 150 | 220V/50Hz | 3.2 | 0.47 | 10.7 | 19 | 13.9 | 39.6 | 200 |
75HPSA-2.25S | 75 | 400 | 250 | 0.66 | 11.2 | 20 | 19 | 39.6 | 200 |
