| Quantity: | |
|---|---|
on Line
1 Year
30-50m
50-100 L/min
Motor
Stainless Steel
MD300/500/900/1100
Multistage Pump
Booster Pump
Electric
Electric Pump
Booster Pump
Pressure Boosting
-
Water
Automatic Pump
Centrifugal Pump
1"
6m
Pressure Switch
Clean Water
Single Brown Box Packing
40x18x23.5/42.5x18.5x23.5
Mepcato
China
8413709990
20000PCS/Month
Available | Customized Request
Operation Conditions

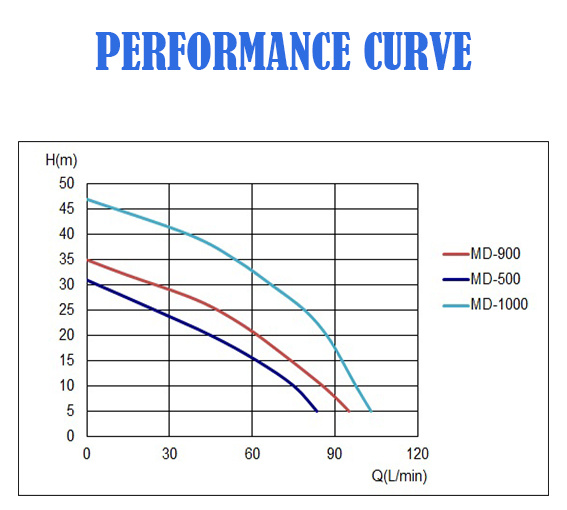

| Model | Input Power | Output Power | Voltage/ Frequency | Outlet/ Inlet | Max Suction | Max Head | Max Capacity | L x W x H | |
| Watt | Watt | V/Hz | inch | m | m | L/min | m3/h | cm | |
| MD300 /MDH300 | 300 | 200 | 220-240V/ 50Hz | 1" | 6 | 26 | 65 | 3.8 | 40x18x23.5 |
| MD500/ MDH500 | 680 | 500 | 31 | 84 | 5 | ||||
| MD900/ MDH900 | 950 | 800 | 35 | 105 | 6.3 | ||||
| MD1100/ MDH1100 | 1100 | 950 | 47 | 105 | 6.3 | 42.5x18.5x23.5 | |||
* Voltage and frequency available upon request.
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
FAQ
Q. Are you a manufacturer or a trading company?
A. We are manufacturer.
Q. What about the payment?
A. We accept TT 30% deposit, 70% balance paid before shipment; or 100% irrevocable L/C at sight.
Q. What about the delivery time?
A. Usually 60 days after order confirmed.
Q. What is your MOQ?
A. Usually 100 pieces.
Q. How can we get the price and more details?
A. You can send us inquiry in detail or chat with us online, we will get back to you within 24 hours.
Q. Can you accept customized products?
A. Yes, of course.
Operation Conditions
| Model | Input Power | Output Power | Voltage/ Frequency | Outlet/ Inlet | Max Suction | Max Head | Max Capacity | L x W x H | |
| Watt | Watt | V/Hz | inch | m | m | L/min | m3/h | cm | |
| MD300 /MDH300 | 300 | 200 | 220-240V/ 50Hz | 1" | 6 | 26 | 65 | 3.8 | 40x18x23.5 |
| MD500/ MDH500 | 680 | 500 | 31 | 84 | 5 | ||||
| MD900/ MDH900 | 950 | 800 | 35 | 105 | 6.3 | ||||
| MD1100/ MDH1100 | 1100 | 950 | 47 | 105 | 6.3 | 42.5x18.5x23.5 | |||
* Voltage and frequency available upon request.
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
FAQ
Q. Are you a manufacturer or a trading company?
A. We are manufacturer.
Q. What about the payment?
A. We accept TT 30% deposit, 70% balance paid before shipment; or 100% irrevocable L/C at sight.
Q. What about the delivery time?
A. Usually 60 days after order confirmed.
Q. What is your MOQ?
A. Usually 100 pieces.
Q. How can we get the price and more details?
A. You can send us inquiry in detail or chat with us online, we will get back to you within 24 hours.
Q. Can you accept customized products?
A. Yes, of course.
