50PSF-2.15S/2.4S
Mepcato
on-Line
1 Year
Motor
Stainless Steel
CE
clean water, slight salt water and sewage water
0~40ºC
2 inch

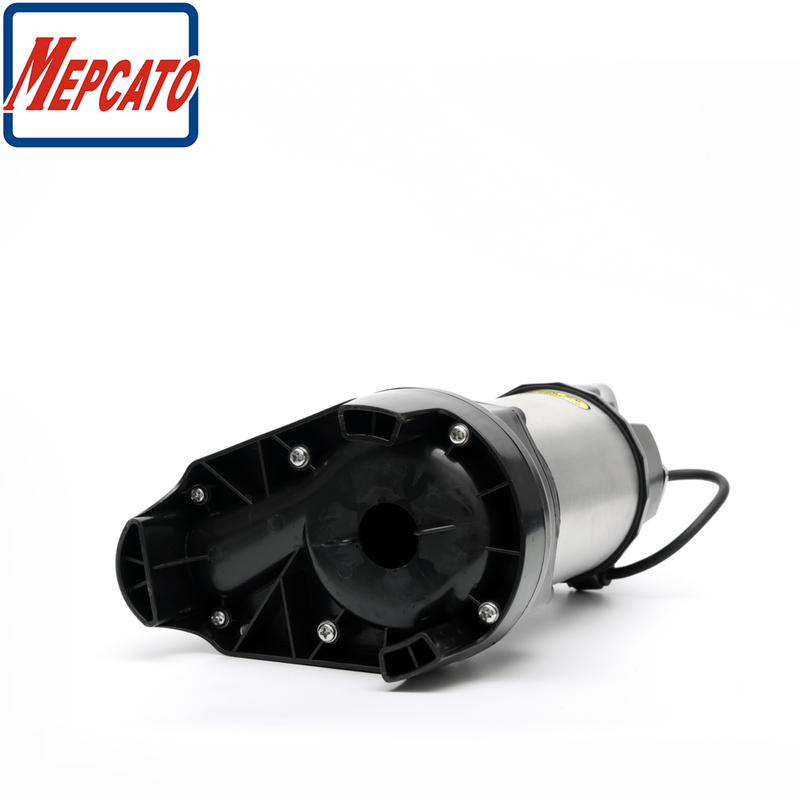

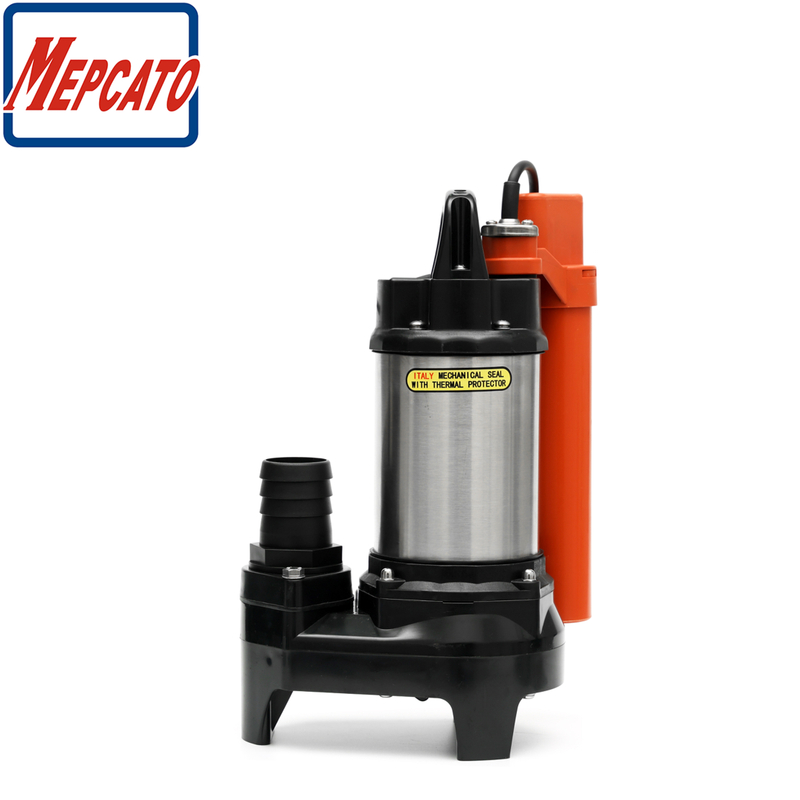

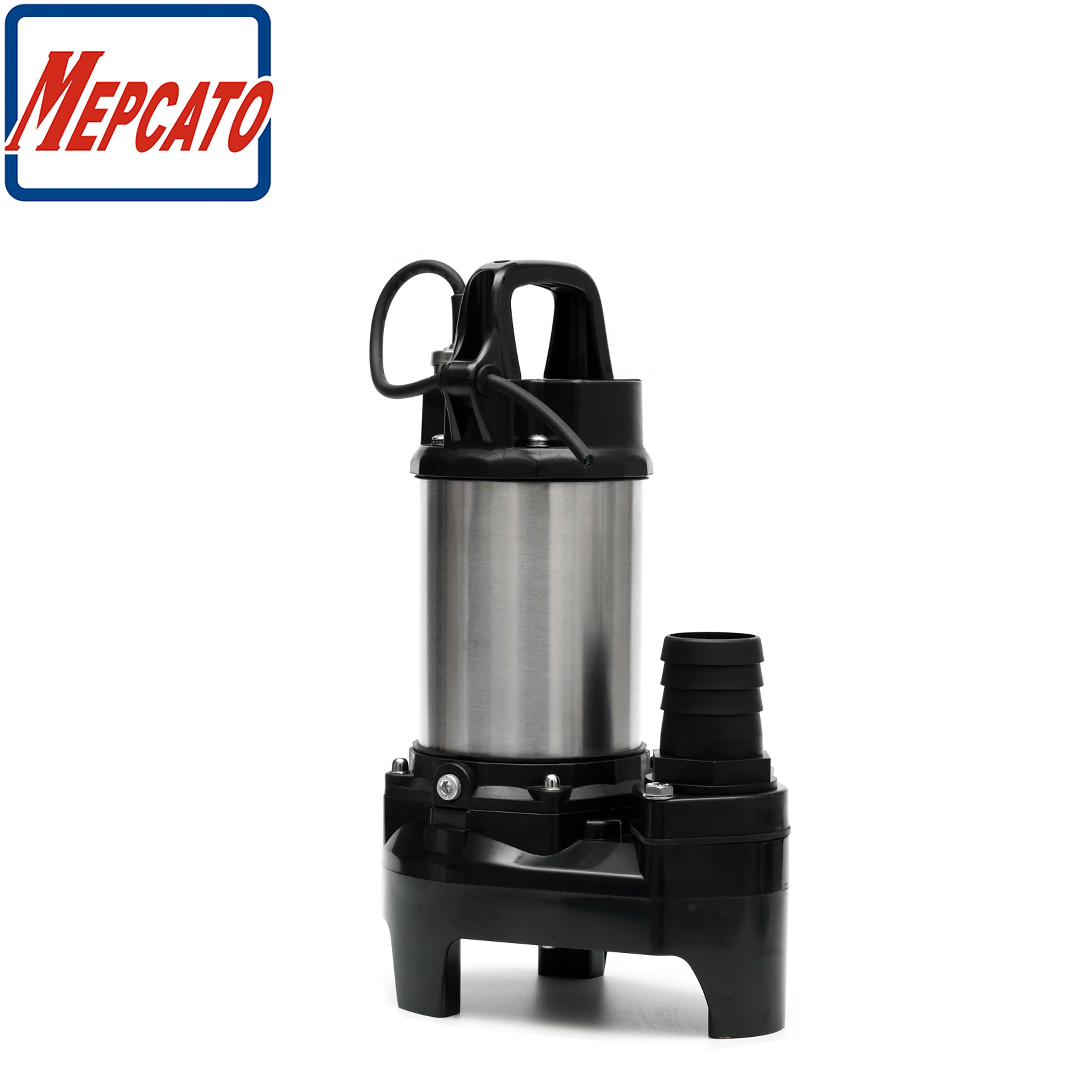

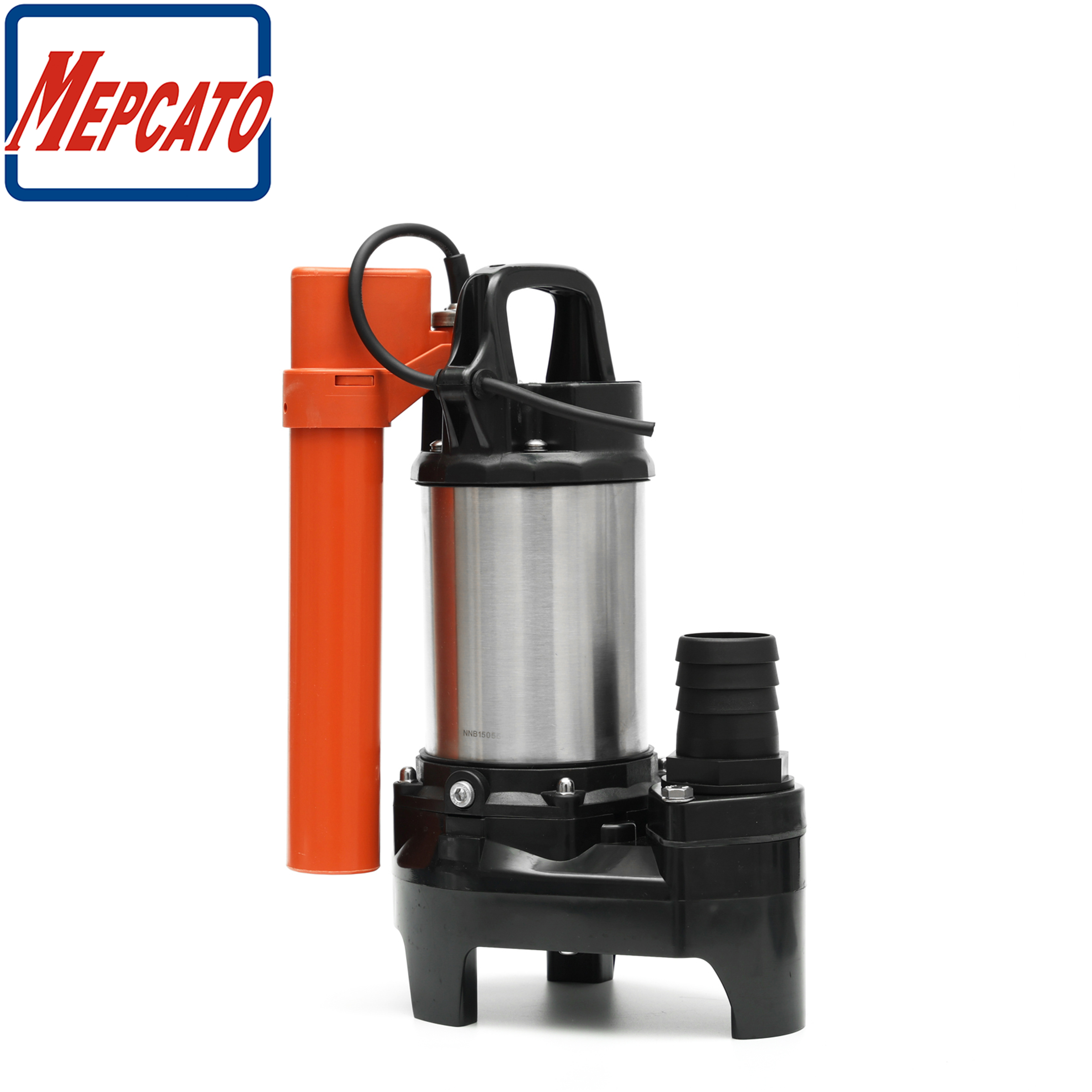

50PS Series Submersible Pump
Features
Portable, Powerful and High-performance
Auto-suction pump with cylindrical floater, easy to install in the confined spaces
Italy imported double-faced mechanical seal to ensure the pump seal performance
SUS304 stainless steel for motor housing, motor shaft and screws
Vertical switch for 50PSF models
Suitable for clean water, salt water, factory sewage
Water supply and disposal, water circulation and water change for crop farming, forestry and fishery use
Equipment use for garden, aquarium, landscape waterfall, water drainage and filltration
50PS Series Submersible Pump
Features
Portable, Powerful and High-performance
Auto-suction pump with cylindrical floater, easy to install in the confined spaces
Italy imported double-faced mechanical seal to ensure the pump seal performance
SUS304 stainless steel for motor housing, motor shaft and screws
Vertical switch for 50PSF models
Suitable for clean water, salt water, factory sewage
Water supply and disposal, water circulation and water change for crop farming, forestry and fishery use
Equipment use for garden, aquarium, landscape waterfall, water drainage and filltration
Model | 50PS Series | |
Pumping Fluid | Type of Fluid | Clean Water and slight salt water |
Fluid Temperature | 0~40℃ | |
Pump | Impeller | Semi-vortex, Nylon+Glass Fiber |
Shaft Seal | Italy Double Face Mechanical Seal, Silicon Carbide | |
Casing | Stainless Steel | |
Bearing | Deep Groove Ball Bearings | |
Motor | Type, Pole | Dry Type Submersible Induction Motor, 2-Pole |
Insulation | Class B | |
Phase/Voltage | Single or three phase/110V,220-240V,380V | |
Starting Method | Capacitor Run | |
Protection Device | Repeatable Thermal Protector | |
Lubricant | Turbine Oil VG32 | |
Shaft | Stainless Steel | |
Cable | 3.5m PVC or Rubber |
Model | Input | Output | Outlet | Voltage | Max Flow | Max Head | L x W x H | Weight | Max | ||
watt | Inch | V/Hz | L/min | m | cm | cm | cm | kg | mm | ||
50PS-2.15S | 280 | 150 | 2 | 220V/50Hz | 250 | 5.5 | 25 | 15 | 38 | 7.1 | 2.5 |
50PSF-2.15S | 280 | 150 | 2 | 250 | 5.5 | 25 | 18 | 38 | 7.3 | 2.5 | |
50PS-2.4S | 590 | 400 | 2 | 310 | 9.6 | 25 | 15 | 40 | 8.5 | 2 | |
50PSF-2.4S | 590 | 400 | 2 | 310 | 9.6 | 25 | 18 | 40 | 8.7 | 2 |
