| Quantity: | |
|---|---|
Float
Contact
Switching Type
Integration
IP68
Polypropylene
Vinflo-06, Vinflo-13, Vinflo-20
IP68
CE
Non-Customized
0-60ºC
6/13/20m
Color Box Packing
150x160x115mm
Mepcato
China
8536500090
20000PCS/Month
Available | Customized Request
Material
○ Body: polypropylene
○ Cable: Rubber CE
○ Liquid temperature: min. 0ºC (32ºF)
max. 60ºC (140ºF)
○ Liquid density: min. 0.95g/cm3
max. 1.10g/cm3
○ Degree of protection: IP68

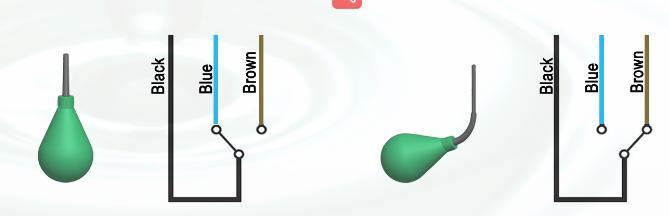

○ Micro switch data
Interrupting capacity of USA micro switch:
AC, resistive load, 250V 10A
AC, inductive load, 250V 3A
With ENEC / VDE Certification
Installation
Typically four regulators are used in a two pump station.
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
Material
○ Body: polypropylene
○ Cable: Rubber CE
○ Liquid temperature: min. 0ºC (32ºF)
max. 60ºC (140ºF)
○ Liquid density: min. 0.95g/cm3
max. 1.10g/cm3
○ Degree of protection: IP68
○ Micro switch data
Interrupting capacity of USA micro switch:
AC, resistive load, 250V 10A
AC, inductive load, 250V 3A
With ENEC / VDE Certification
Installation
Typically four regulators are used in a two pump station.
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
