| Quantity: | |
|---|---|
on-Line
1 Year
30-50m
50-100 L/min
Motor
Multistage Pump
MD300/500/900/1100
High Pressure Pump
Single Suction Pump
Horizontal Pump
Horizontal Split Pumps
Suction Centrifugal
Semi-Open
Pump, Pumps, Booster Pump
1"
6m
Automatically
Mechanical Seal
Single Brown Box Packing
40x18x23.5/42.5x18.5x23.5
Mepcato
China
8413709990
20000PCS/Month
Available | Customized Request
Description
Features
Operation Conditions

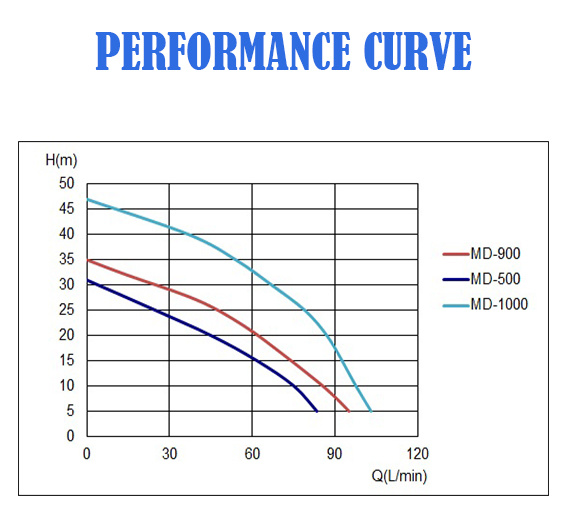

Performance
| Model | Input Power | Output Power | Voltage/ Frequency | Outlet/ Inlet | Max Suction | Max Head | Max Capacity | L x W x H | |
| Watt | Watt | V/Hz | inch | m | m | L/min | m3/h | cm | |
| MD300 /MDH300 | 300 | 200 | 220-240V/ 50Hz | 1" | 6 | 26 | 65 | 3.8 | 40x18x23.5 |
| MD500/ MDH500 | 680 | 500 | 31 | 84 | 5 | ||||
| MD900/ MDH900 | 950 | 800 | 35 | 105 | 6.3 | ||||
| MD1100/ MDH1100 | 1100 | 950 | 47 | 105 | 6.3 | 42.5x18.5x23.5 | |||
* Voltage and frequency available upon request.
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
Description
Features
Operation Conditions
Performance
| Model | Input Power | Output Power | Voltage/ Frequency | Outlet/ Inlet | Max Suction | Max Head | Max Capacity | L x W x H | |
| Watt | Watt | V/Hz | inch | m | m | L/min | m3/h | cm | |
| MD300 /MDH300 | 300 | 200 | 220-240V/ 50Hz | 1" | 6 | 26 | 65 | 3.8 | 40x18x23.5 |
| MD500/ MDH500 | 680 | 500 | 31 | 84 | 5 | ||||
| MD900/ MDH900 | 950 | 800 | 35 | 105 | 6.3 | ||||
| MD1100/ MDH1100 | 1100 | 950 | 47 | 105 | 6.3 | 42.5x18.5x23.5 | |||
* Voltage and frequency available upon request.
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
