| Quantity: | |
|---|---|
on-Line
1 Year
9m
105L/Min
Motor
ABS Plastic
HOME-10
Single-stage Pump
Liquid Pumps
Electric
Electric Pump
Positive-Displacement Pump
Submersible Pump, Clean Water Pump
Fisheries Pump
Sea Water Pump
Submersible Pump
Centrifugal Pump
Clean Water and Sea Water
Italy Import Mechanical Seal
PP+Fiberglass
3.5m with Plug

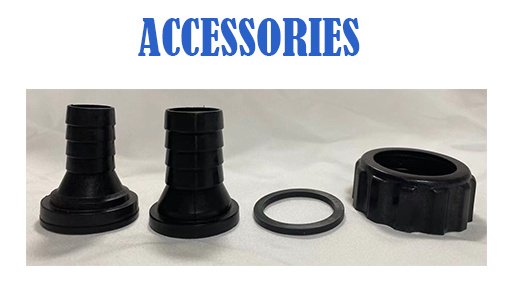

3 Couplings and 3 Hose Clamp
Individual Brown Carton, 4 Cartons/Outer Carton
CE
MEPCATO
China
8413709190
20000PCS/Month
Available | Customized Request
Features
| Model | Power | Caliber | Phase | Voltage | Capacity | Head | Length | Width | Height | Weight | Mini Submerged depth | |
| HP | KW | Inch | φ | V | L/min | m | cm | cm | cm | kg | mm | |
| HOME-10 | 0.16 | 0.12 | 1/2 " ; 3/4 " ; 1 " | 1 | 110V/ 230V | 105 | 9 | 16 | 16 | 28 | 5.8 | 1 |
1. Highly efficient motor design for 24 hours continuous duty use.

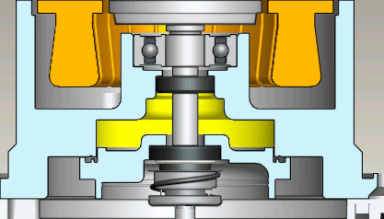

2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
FAQ
Features
| Model | Power | Caliber | Phase | Voltage | Capacity | Head | Length | Width | Height | Weight | Mini Submerged depth | |
| HP | KW | Inch | φ | V | L/min | m | cm | cm | cm | kg | mm | |
| HOME-10 | 0.16 | 0.12 | 1/2 " ; 3/4 " ; 1 " | 1 | 110V/ 230V | 105 | 9 | 16 | 16 | 28 | 5.8 | 1 |
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
