| Quantity: | |
|---|---|
on-Line
1 Year
3-3.2m
0.47/0.66/0.8m3/Min
Motor
Stainless Steel
75MPA-2.25S
Single-stage Pump
Submersible Pump
Electric
Electric Pump
Submersible Pump
Submersible Pump, Sea Water Pump

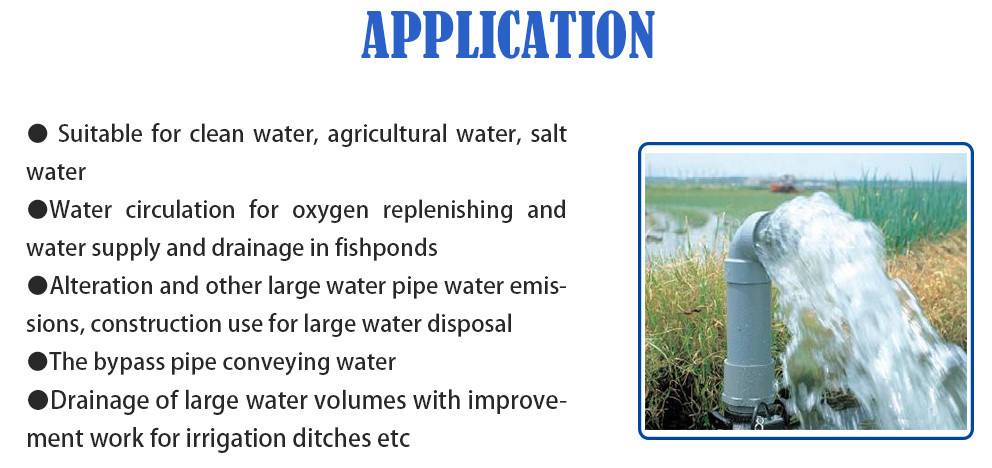

Fishery/Farming/Commerce/Engineering
Water
Wear Pump
Centrifugal Pump
Mechanical Seal
75/100mm
260/450/750W
150/250/400W
Single Brown Box Packing
75x194x421mm, 100x250x483mm
Mepcato
China
8413810090
20000PCS/Month
Available | Customized Request

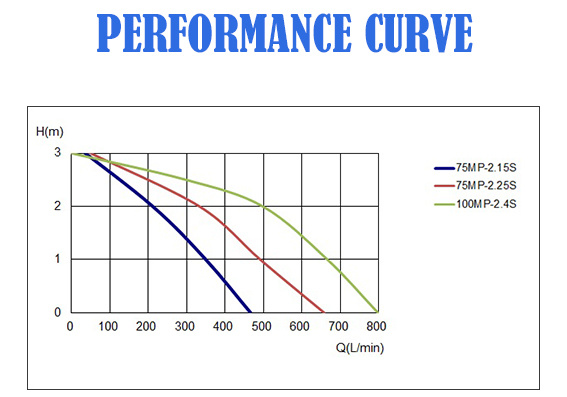

| Discharge Bore | Model | Power | Voltage /Frequency | Max Head | Max Capacity | Length of Cable | Dimensions mm | C.W.L mm | ||||
| Input | Output | |||||||||||
| mm | Watt | V/Hz | m | m3/min | m | d | D | H | W1 | |||
| 75 | 75MPA-2.15S | 260 | 150 | 230V50Hz | 3.2 | 0.47 | 5 | 75 | 194 | 421 | 110 | |
| 75 | 75MPA-2.25S | 450 | 250 | 3.2 | 0.66 | 5 | 75 | 194 | 421 | 110 | ||
| 100 | 100MP-2.4S | 750 | 400 | 3 | 0.80 | 5 | 100 | 250 | 483 | 180 | ||

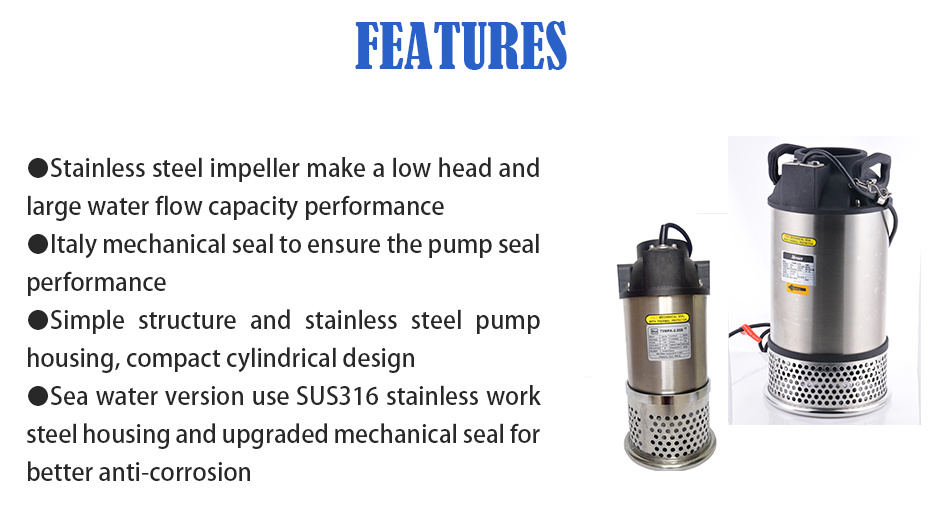

1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
| Discharge Bore | Model | Power | Voltage /Frequency | Max Head | Max Capacity | Length of Cable | Dimensions mm | C.W.L mm | ||||
| Input | Output | |||||||||||
| mm | Watt | V/Hz | m | m3/min | m | d | D | H | W1 | |||
| 75 | 75MPA-2.15S | 260 | 150 | 230V50Hz | 3.2 | 0.47 | 5 | 75 | 194 | 421 | 110 | |
| 75 | 75MPA-2.25S | 450 | 250 | 3.2 | 0.66 | 5 | 75 | 194 | 421 | 110 | ||
| 100 | 100MP-2.4S | 750 | 400 | 3 | 0.80 | 5 | 100 | 250 | 483 | 180 | ||
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
