| Quantity: | |
|---|---|
on-Line
1 Year
3.3m
>400 L/min
Motor
Stainless Steel
75HPSA-2.15/2.25S
Single-stage Pump
Liquid Pumps
Electric
Electric Pump
Axial Flow Pump
Submersible Pump
Fisheries Pump
Sea Water Pump
Explosion-Proof Pumps
Axial Flow Pump
Mechanical Seal
75
150/250
Single Brown Box Packing
75x194x421mm
Mepcato
China
8413709190
20000PCS/Month
Available | Customized Request

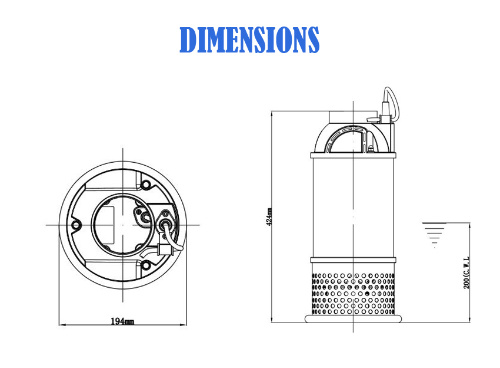

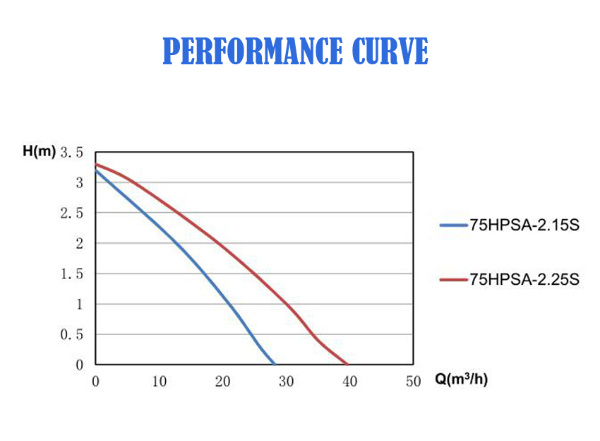

| Model | Discharge Bore (mm) | Input Power (W) | Output Power (W) | Voltage/ Frequency (V/Hz) | Max Head (m) | Max Capacity | Net Weight (kg) | Dimensions (mm) | C.W.L (mm) | ||||
| m³/min | m³/h | D | H | W1 | |||||||||
| 75HPSA-2.15S | 75 | 270 | 150 | 230V/50Hz | 3.2 | 0.47 | 28.2 | 10.7 | 194 | 424 | 200 | ||
| 75HPSA-2.25S | 75 | 400 | 250 | 3.3 | 0.66 | 39.6 | 11.2 | ||||||
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
| Model | Discharge Bore (mm) | Input Power (W) | Output Power (W) | Voltage/ Frequency (V/Hz) | Max Head (m) | Max Capacity | Net Weight (kg) | Dimensions (mm) | C.W.L (mm) | ||||
| m³/min | m³/h | D | H | W1 | |||||||||
| 75HPSA-2.15S | 75 | 270 | 150 | 230V/50Hz | 3.2 | 0.47 | 28.2 | 10.7 | 194 | 424 | 200 | ||
| 75HPSA-2.25S | 75 | 400 | 250 | 3.3 | 0.66 | 39.6 | 11.2 | ||||||
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
