| Quantity: | |
|---|---|
on-Line
1 Year
CE
Impeller
Electric
Stainless Steel
MSP-550
Water
Water Transfering
Circulation Pump
370W, 550W, 750W
Horizontal Pump
Centrifugal
Italy Mechanical Seal
Stainless Steel
Single-Stage Pump
Individual Brown Box Packing
CE
MEPCATO
China
8413810090
20000PCS/Month
Available | Customized Request
Features
- Maximum ambient temperature: +60 degree
Motor Features
Application
- Pumping and distribution of water in domestic system use on a continuous or intermittent basis.

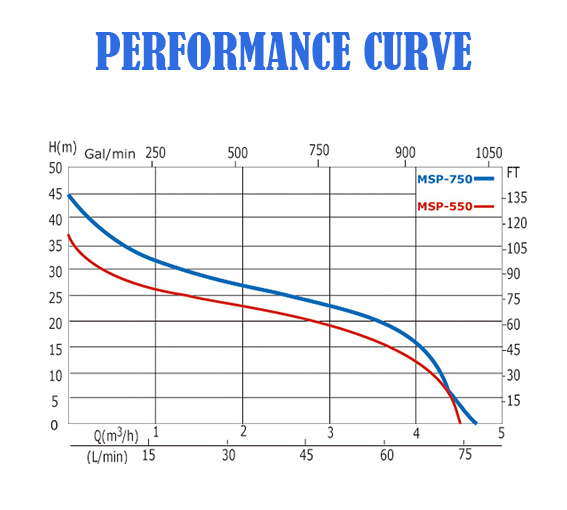

| Model | Power | Voltage | Max Capacity | Max Head | Suction | DNA/ DNM | Length | Width | Height | Weight | |
| HP | KW | V | L/min | m | m | Inch | cm | cm | cm | kg | |
| MSP-550 | 0.8 | 0.55 | 230/50 | 75 | 37 | 9 | 1 | 35.5 | 18.5 | 21 | 9.5 |
| MSP-750 | 1 | 0.75 | 230/50 | 80 | 45 | 9.5 | 1 | 35.5 | 18.5 | 21 | 10 |
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
Features
- Maximum ambient temperature: +60 degree Motor Features
Application
- Pumping and distribution of water in domestic system use on a continuous or intermittent basis.
| Model | Power | Voltage | Max Capacity | Max Head | Suction | DNA/ DNM | Length | Width | Height | Weight | |
| HP | KW | V | L/min | m | m | Inch | cm | cm | cm | kg | |
| MSP-550 | 0.8 | 0.55 | 230/50 | 75 | 37 | 9 | 1 | 35.5 | 18.5 | 21 | 9.5 |
| MSP-750 | 1 | 0.75 | 230/50 | 80 | 45 | 9.5 | 1 | 35.5 | 18.5 | 21 | 10 |
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
