| Quantity: | |
|---|---|
Condensate Pump
10mm
25mm
1L
Brown Box Packing
280x127x143mm
MEC-20
Mepcato
China
8413810090
20000PCS/Month
Available | Customized Request

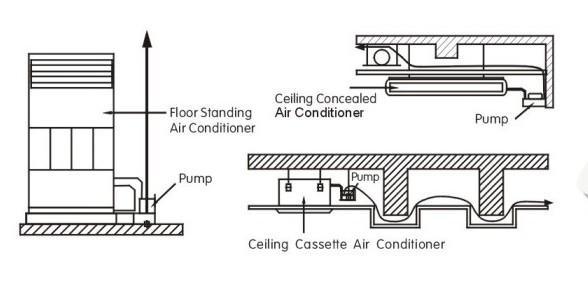

Ideal for collecting, detecting, and automatic removal of condensate from air conditioners, dehumidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required.
| Model | MEC-20 | ||
| Rating | 220V 50/60Hz | 110V/60Hz | |
| Max. Pump Head | 5.2m/6.2m | 5m | |
| Max. Flow Rate | 4.2 L/min | ||
| Power Consumption | 58/55w | 58w | |
| Check Valve | Concealed inside | ||
| Inlet Up | 25mm inner size x 2 |
| Outlet | 10mm inner size |
| Size | 280x127x143mm |
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
Ideal for collecting, detecting, and automatic removal of condensate from air conditioners, dehumidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required.
| Model | MEC-20 | ||
| Rating | 220V 50/60Hz | 110V/60Hz | |
| Max. Pump Head | 5.2m/6.2m | 5m | |
| Max. Flow Rate | 4.2 L/min | ||
| Power Consumption | 58/55w | 58w | |
| Check Valve | Concealed inside | ||
| Inlet Up | 25mm inner size x 2 |
| Outlet | 10mm inner size |
| Size | 280x127x143mm |
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
