| Quantity: | |
|---|---|
Online
1 Year
9m
130L/Min
Motor
PP+Fiberglass
Home-12A
Single-stage Pump
Submersible Pump
Electric
Electric Pump
Submersible Pump
Submersible Pump
Household/Forestry/Fishery
Water
Wear Pump
Centrifugal Pump
3/4"; 1"
120W
230W
Mechanical Seal
Brown Box Packing
16x21x28cm
Mepcato
China
8413810090
2000PCS/Month
Available | Customized Request

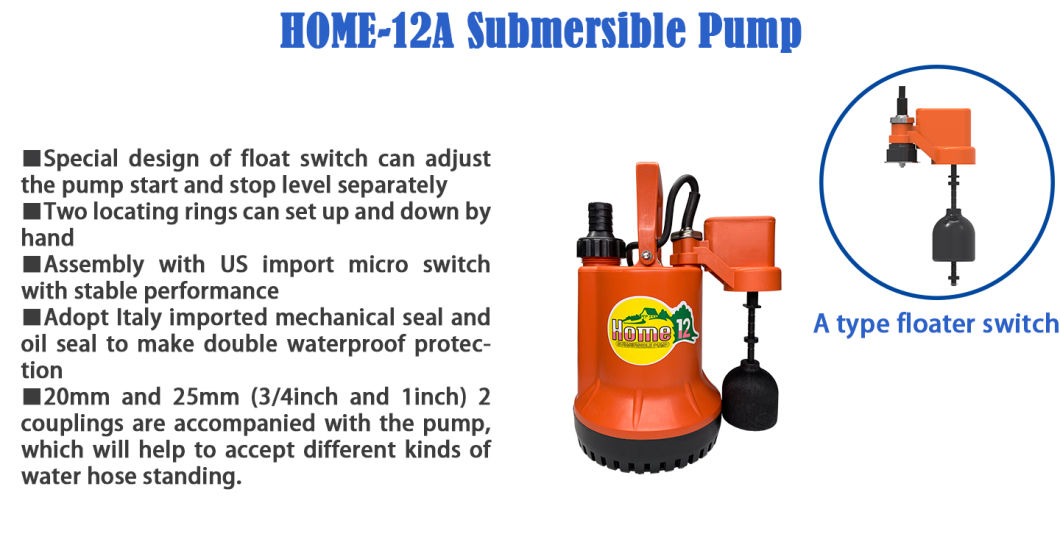

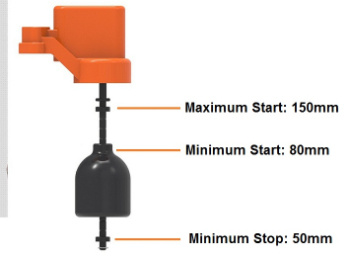

Start and Stop Sucking Level

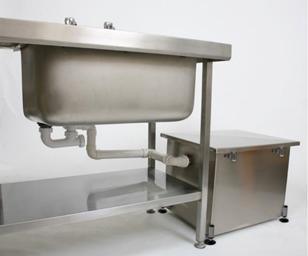

Application
| Model | Power | Caliber | Voltage/ Frequency | Max Capacity | Max Head | Length | Width | Height | |
| Input | Output | Inch | V/Hz | L/min | m | cm | cm | cm | |
| HOME-12A | 230w | 120w | 3/4;1 | 230/50Hz | 130 | 9 | 16 | 21 | 28 |
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
Start and Stop Sucking Level
Application
| Model | Power | Caliber | Voltage/ Frequency | Max Capacity | Max Head | Length | Width | Height | |
| Input | Output | Inch | V/Hz | L/min | m | cm | cm | cm | |
| HOME-12A | 230w | 120w | 3/4;1 | 230/50Hz | 130 | 9 | 16 | 21 | 28 |
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
