| Quantity: | |
|---|---|
on-Line
1 Year
6.5m
95L/Min
Motor
PP+Fiberglass

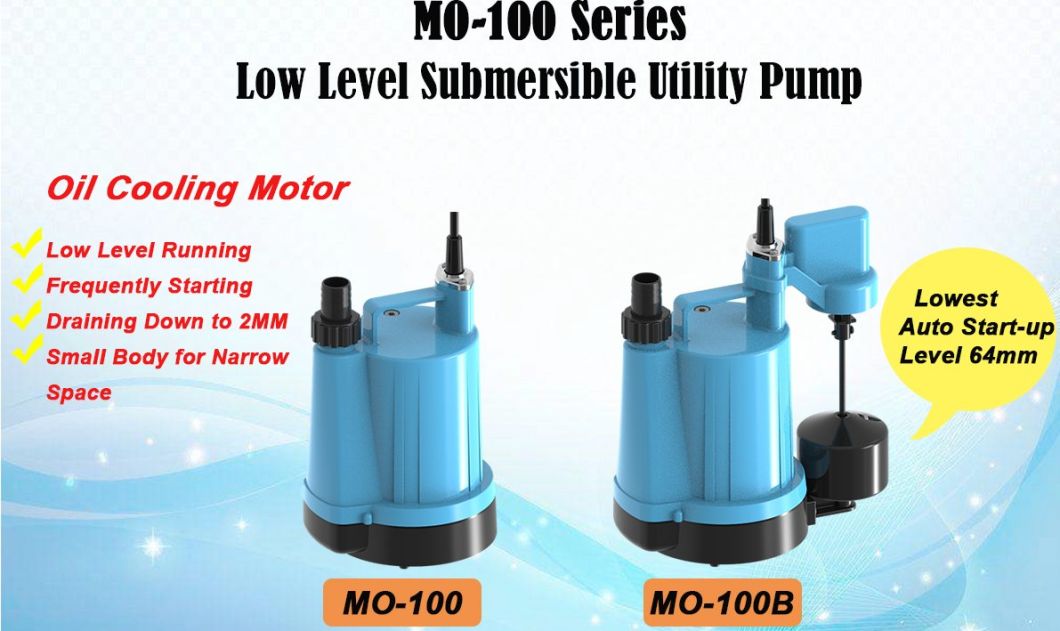

MO-100(B)
Single-stage Pump
Submersible Pump
Electric
Electric Pump
Submersible Pump
Submersible Pump
Household/Fishery/Farming/Commerce/Engineering
Water
Wear Pump
Centrifugal Pump
3/4"; 1"
130W
100W
Mechanical Seal
Brown Box Packing
16x13.9x27/18x13.9x30/23.2x13.9x28.5cm
Mepcato
China
8413709190
20000PCS/Month
Available | Customized Request
Features
• Manual operation can drain residue water down to 2 mm.
• Motor casing is filled with oil to make excellent cooling of the motor in the condition of low water level, and it has thermal safety protection for overheated motor.
• In a state of being no water, the motor will automatically cut off power after about an hour of dry-running.
While the motor temperature drops and cool down sufficiently, the pump will automatically power on and resume running.
• Robust housing is made of super tough glass fiber reinforced plastic,it has good performances of weather-proof, aging-resistant.
• Adopts Italy mechanical seal for waterproof protection.
• Oil chamber lubrication achieves the cooling effect and service life extension purpose to the mechanical seal.

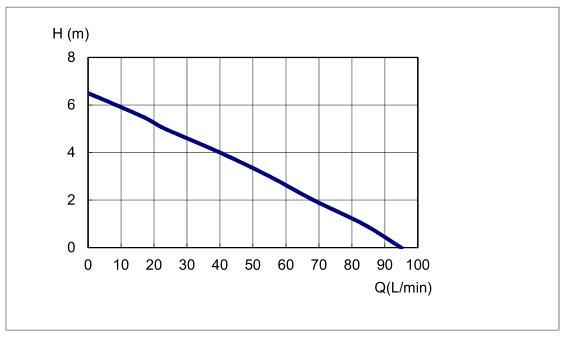

| Model | Output | Outlet | Voltage | Max Flow | Max Head | Auto Level (mm) | L | x W | x H | ||
| HP | Watt | Inch | V/Hz | L/min | m | Start | Stop | cm | |||
| MO-100 (Manual) | 0.13 | 100 | 3/4;1 | 110V/230V 50/60Hz | 95 | 6.5 | Manual | 16 | 13.9 | 27 | |
| MO-100B (Auto) | 64 | 38 | 23.4 | 13.9 | 28.6 | ||||||
Certifications
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
Features
• Manual operation can drain residue water down to 2 mm.
• Motor casing is filled with oil to make excellent cooling of the motor in the condition of low water level, and it has thermal safety protection for overheated motor.
• In a state of being no water, the motor will automatically cut off power after about an hour of dry-running.
While the motor temperature drops and cool down sufficiently, the pump will automatically power on and resume running.
• Robust housing is made of super tough glass fiber reinforced plastic,it has good performances of weather-proof, aging-resistant.
• Adopts Italy mechanical seal for waterproof protection.
• Oil chamber lubrication achieves the cooling effect and service life extension purpose to the mechanical seal.
| Model | Output | Outlet | Voltage | Max Flow | Max Head | Auto Level (mm) | L | x W | x H | ||
| HP | Watt | Inch | V/Hz | L/min | m | Start | Stop | cm | |||
| MO-100 (Manual) | 0.13 | 100 | 3/4;1 | 110V/230V 50/60Hz | 95 | 6.5 | Manual | 16 | 13.9 | 27 | |
| MO-100B (Auto) | 64 | 38 | 23.4 | 13.9 | 28.6 | ||||||
Certifications
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
