| Quantity: | |
|---|---|
on-Line
1 Year
Surface Pump
Fitted Motor
Jet-flow
Direct Connection Transmission

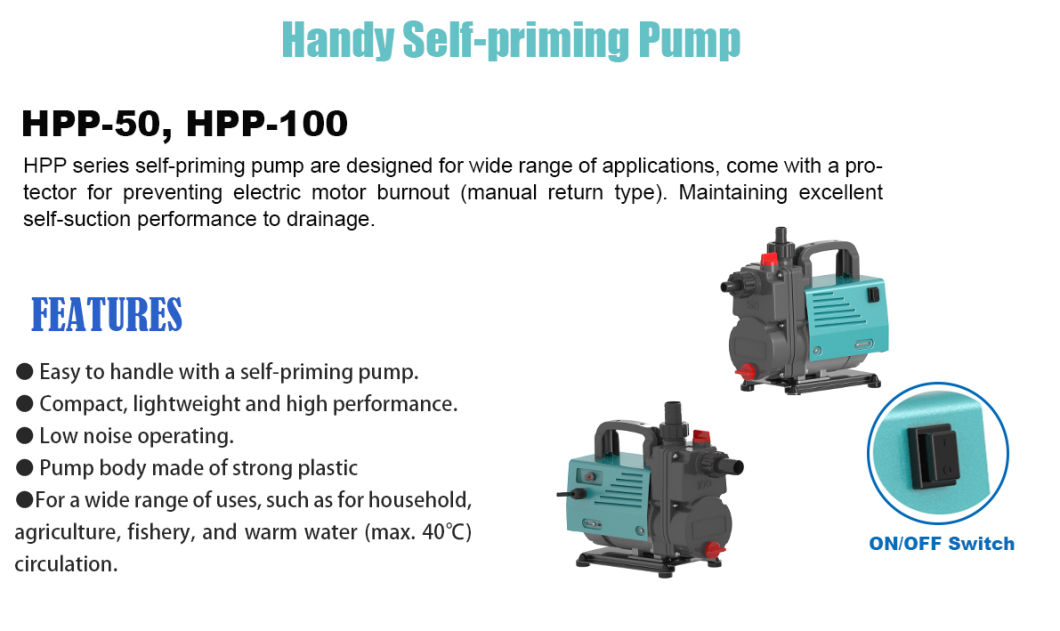

HPP-50/100
Impeller
16.8/25mm
100/135W
Mechanical Seal
1.8m
Single Color Box Packing
250X210X230mm
Mepcato
China
8413709190
20000PCS/Month
Available | Customized Request
Specification
| Pumping Fluid | Type of Fluid: Natural water |
| Fluid Temperature: 0~40ºC(Without freezing) | |
Structure | Impeller: Semi-open |
| Shaft Seal: Mechanical Seal | |
| Bearing: Ball bearing | |
Material | Casing: Plastic |
| Impeller: Plastic | |
| Shaft: Stainless Steel | |
| Motor | Power: 1 Phase - 100V, 220V |
| Pole : 2 Pole |

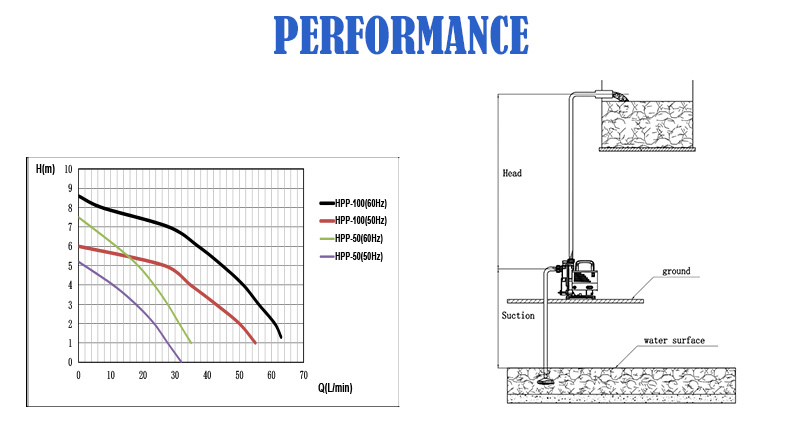

Performance
| Model | Power w | Voltage/ Frequency V/Hz | Outlet/ Inlet mm | Max Suction m | Max Solid mm | Max Head m | Max Capacity L/min |
| HPP-50 | 100 | 220V / 50Hz | 16.8 | 1.8 | 1 | 5.2 | 32 |
| 140 | 220V / 60Hz | 16.8 | 7.5 | 35 | |||
| HPP-100 | 135 | 220V / 50Hz | 25 | 6 | 55 | ||
| 211 | 220V / 60Hz | 25 | 8.6 | 63 |
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
