| Quantity: | |
|---|---|
Float
Contact
Switching Type
Integration
IP68
Polypropylene
type B
IP68
CE
Non-Customized
Max +40ºC
3/5/10m
Clean Water
ABS Plastic
Color Box Packing

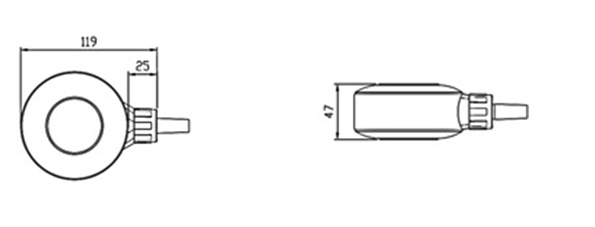

119x119mm
Mepcato
China
8536500090
20000PCS/Month
Available | Customized Request

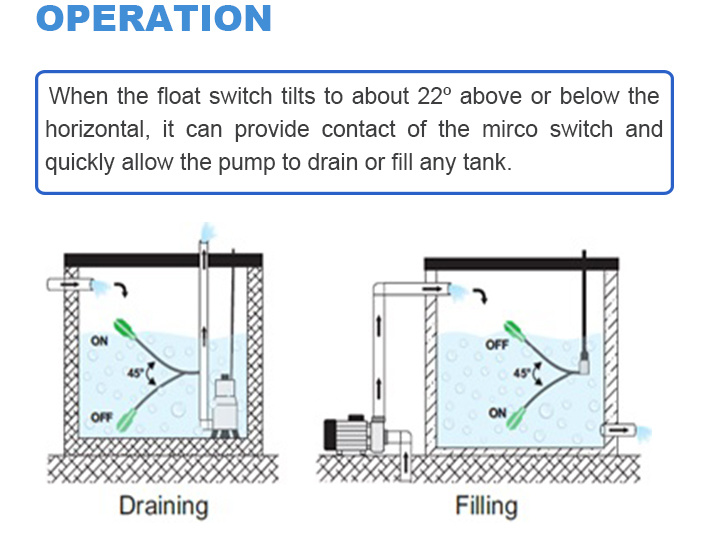

▪ Suitable for non-potable water, non-corrosive
liquids.
▪ Filling up and emptying out tanks and cisterns,
such as aquarium, fish farms, swimming pool.
▪ Level control and regulation.
▪ Pump, pumping stations.
▪ Level warning by initation of high or low level
alarms.
| Casing | ABS plastic |
| Cabel | H07RN-F 3x1.0mm2 |
| Cabel Length | 3m, 5m, 10m as standard |
| Counterweight | Aluminum Alloy, 280G |
| Max depth | 10M |
| Activation Angle | 45º |
| Protection Grade | IP68 |
| Working Temperature | Max +40ºC |
| Power Supply | Max. 10(8)A, 125/250V AC |
| Certification | CE |
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
▪ Suitable for non-potable water, non-corrosive
liquids.
▪ Filling up and emptying out tanks and cisterns,
such as aquarium, fish farms, swimming pool.
▪ Level control and regulation.
▪ Pump, pumping stations.
▪ Level warning by initation of high or low level
alarms.
| Casing | ABS plastic |
| Cabel | H07RN-F 3x1.0mm2 |
| Cabel Length | 3m, 5m, 10m as standard |
| Counterweight | Aluminum Alloy, 280G |
| Max depth | 10M |
| Activation Angle | 45º |
| Protection Grade | IP68 |
| Working Temperature | Max +40ºC |
| Power Supply | Max. 10(8)A, 125/250V AC |
| Certification | CE |
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
