| Quantity: | |
|---|---|
on Line
1 Year
10m
330L/Min
Motor
ABS+PC
Features

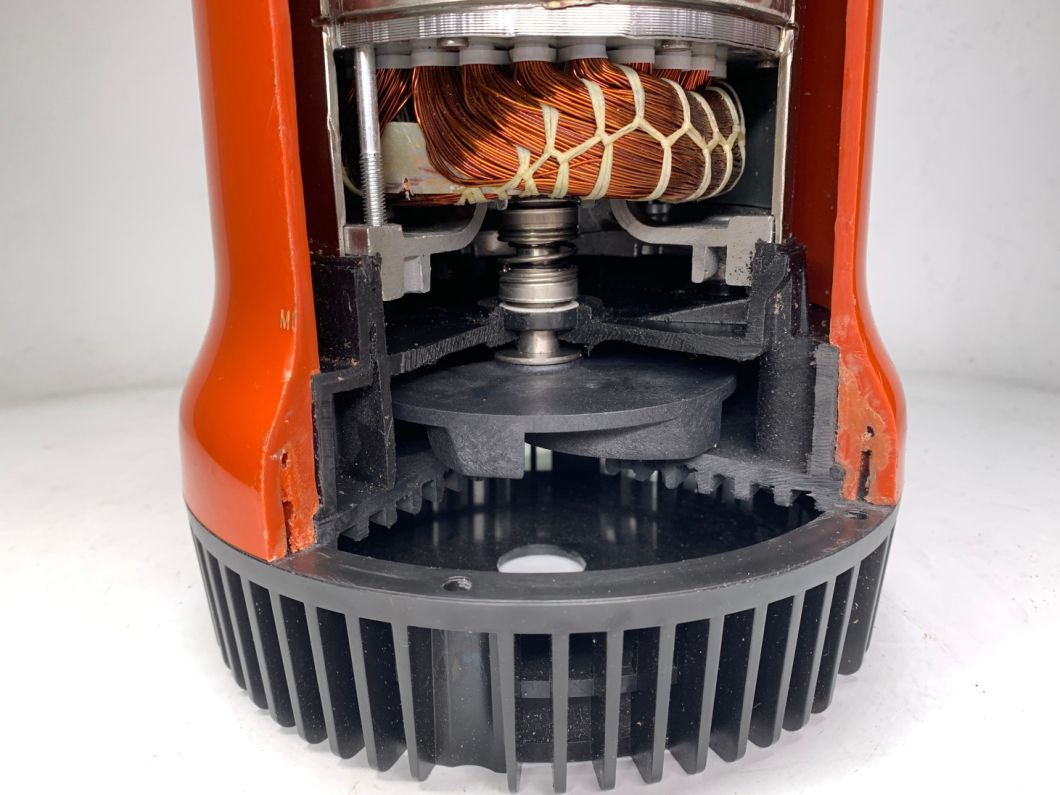

The application of compact and non-corrosive reinforced housing
Adopt Italy mechanical seal specially for sea water use
SUS316 motor housing and shaft for sea water waterproof protection
Built-in motor thermal overload protector
Float switch models MF-400 and A type new switch model M-400A
M-400A switch: Automatic operation (A): The integrated float switch starts and stops the pump automatically when the indicator is positioned on "A". Manual operation (M): To start the pump, lift the knob positioning the indicator on "M".

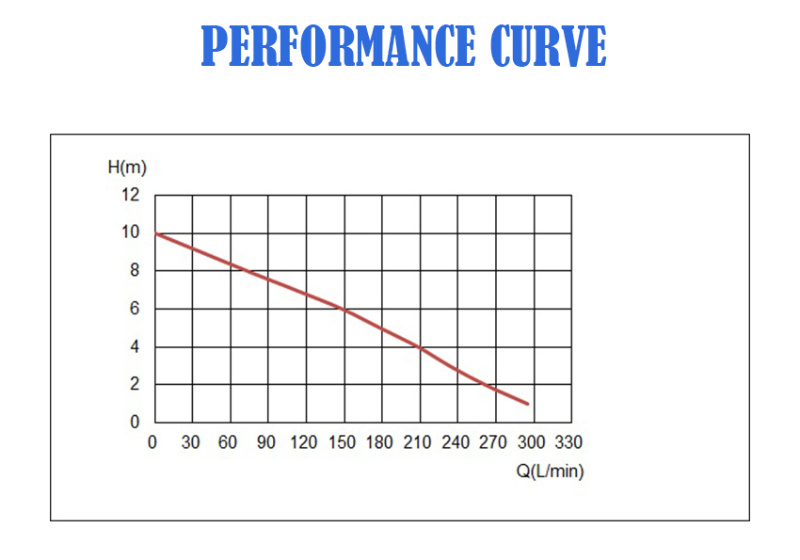

| Model | Power | Outlet | Voltage | Max Flow | Max Head | L x W x H | |||
| Input | Output | Inch | V/Hz | L/min | m | cm | cm | cm | |
| M-400 (Manual) | 620w | 400w | 2 | 110/230V 50/60Hz | 330 | 10 | 19 | 19 | 39.6 |
| MF-400 (Auto) | 20 | 19 | 39.6 | ||||||
| M-400A (Auto/Manual) | 24.2 | 19 | 39.6 | ||||||
Our Adavantages
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
Features
The application of compact and non-corrosive reinforced housing
Adopt Italy mechanical seal specially for sea water use
SUS316 motor housing and shaft for sea water waterproof protection
Built-in motor thermal overload protector
Float switch models MF-400 and A type new switch model M-400A
M-400A switch: Automatic operation (A): The integrated float switch starts and stops the pump automatically when the indicator is positioned on "A". Manual operation (M): To start the pump, lift the knob positioning the indicator on "M".
| Model | Power | Outlet | Voltage | Max Flow | Max Head | L x W x H | |||
| Input | Output | Inch | V/Hz | L/min | m | cm | cm | cm | |
| M-400 (Manual) | 620w | 400w | 2 | 110/230V 50/60Hz | 330 | 10 | 19 | 19 | 39.6 |
| MF-400 (Auto) | 20 | 19 | 39.6 | ||||||
| M-400A (Auto/Manual) | 24.2 | 19 | 39.6 | ||||||
Our Adavantages
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
