| Quantity: | |
|---|---|
on-Line
1 Year
10-30m
>400 L/min
Motor
Single-Stage Pump
CCS-2.75S
Low Pressure Pump
Single Suction Pump
Vertical Pump
Submersible Pump
Suction Centrifugal
Semi-Open
Pump, Pumps
Dirty Water
24 Hours Non-Stop Running
Italy Imported
16m
300L/Min
230V
75W

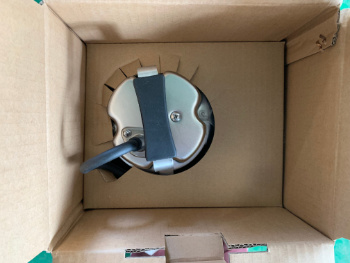

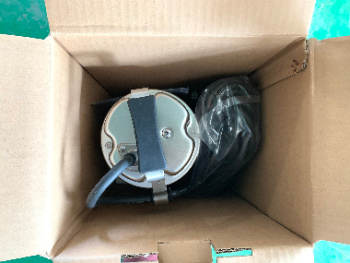

Single Brown Box Packing
CE
MEPCATO
China
8413709190
20000PCS/Month
Available | Customized Request

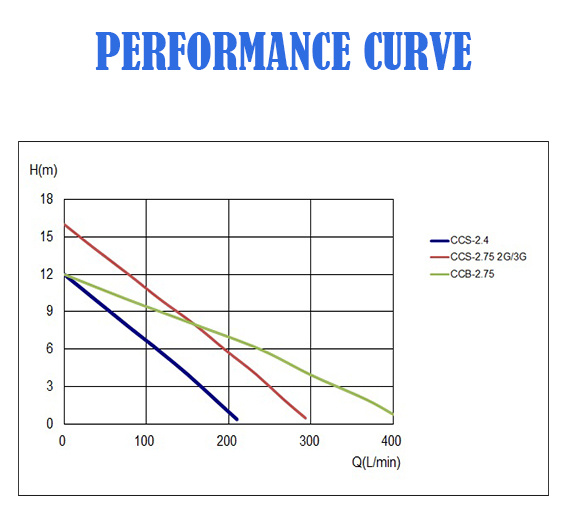

| Model | Power | Caliber | Max. Capacity | Max. Head | Length | Width | Height | Max. Solid | |
| Input | Output | Inch | L/min | m | cm | cm | cm | mm | |
| CCS-2.4SA | 530w | 400w | 2 | 217 | 12 | 25 | 20 | 40 | 7 |
| CP-2.4SA | 25 | 20 | 43 | 7 | |||||
| CCS-2.75SA | 1000w | 750w | 2 | 300 | 16 | 25 | 20 | 41 | 7 |
| CP-2.75SA | 25 | 20 | 44 | 7 | |||||
| CCB-2.75SA | 1000w | 750w | 2 | 420 | 12 | 25 | 20 | 41 | 7 |
| CPB-2.75SA | 25 | 20 | 44 | 7 | |||||
| CCS-2.75SA/3G | 1000w | 750w | 3 | 420 | 12 | 29 | 20 | 41 | 7 |
| CPB-2.75SA/3G | 29 | 20 | 44 | 7 | |||||
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
| Model | Power | Caliber | Max. Capacity | Max. Head | Length | Width | Height | Max. Solid | |
| Input | Output | Inch | L/min | m | cm | cm | cm | mm | |
| CCS-2.4SA | 530w | 400w | 2 | 217 | 12 | 25 | 20 | 40 | 7 |
| CP-2.4SA | 25 | 20 | 43 | 7 | |||||
| CCS-2.75SA | 1000w | 750w | 2 | 300 | 16 | 25 | 20 | 41 | 7 |
| CP-2.75SA | 25 | 20 | 44 | 7 | |||||
| CCB-2.75SA | 1000w | 750w | 2 | 420 | 12 | 25 | 20 | 41 | 7 |
| CPB-2.75SA | 25 | 20 | 44 | 7 | |||||
| CCS-2.75SA/3G | 1000w | 750w | 3 | 420 | 12 | 29 | 20 | 41 | 7 |
| CPB-2.75SA/3G | 29 | 20 | 44 | 7 | |||||
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
