| Quantity: | |
|---|---|
on-Line
1 Year
10-30m
>400 L/min
Motor
Stainless Steel
CS-2.75S
Single-stage Pump
Liquid Pumps
Electric
Electric Pump
Submersible Pump
Submersible Pump, Sewage Pump, Slurry Pump, Sea Water Pump
Mechanical Pump
Sewage Pumps
Automatic Pump
Centrifugal Pump
1500W
5m
Stainless Steel
Sewage Water
Large Volume High Head
Individual Color Carton
CE
MEPCATO
China
8413810090
20000PCS/Month
Available | Customized Request

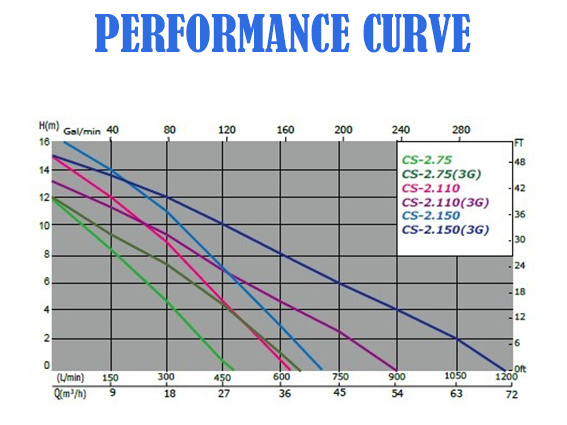

| Model | Power | Caliber | Phase | Polarity | Voltage | Ampere | Capacitor | Capacity | Head | Length | Width | Height | Weight | Max. Solids | |
| HP | KW | Inch | φ | P | V | A | μ f | L/min | m | cm | cm | cm | kg | mm | |
| CS - 2.75S | 1 | 0.75 | 2" | 1 | 2 | 220 | 5.5 | 25 | 460 | 12 | 28.5 | 22 | 47 | 21.3 | 15 |
| CS- 2.75S (3G) | 1 | 0.75 | 3" | 1 | 2 | 220 | 5.5 | 25 | 650 | 12 | 28.5 | 22 | 47 | 22.4 | 15 |
| CS - 2.110S | 1.5 | 1.1 | 2" | 1 | 2 | 220 | 6.7 | 40 | 620 | 15 | 28.5 | 22 | 47 | 24 | 15 |
| CS- 2.110S (3G) | 1.5 | 1.1 | 3" | 1 | 2 | 220 | 6.3 | 40 | 900 | 13 | 28.5 | 22 | 47 | 25 | 15 |
| CS - 2.150S | 2 | 1.5 | 2" | 1 | 2 | 220 | 9.45 | 40 | 700 | 17 | 28.5 | 22 | 47 | 25 | 15 |
| CS- 2.150S (3G) | 2 | 1.5 | 3" | 1 | 2 | 220 | 9.2 | 40 | 1170 | 15 | 28.5 | 22 | 47 | 26.1 | 15 |
| Model | Power | Caliber | Phase | Polarity | Voltage | Ampere | Capacitor | Capacity | Head | Length | Width | Height | Weight | Max. Solids | |
| HP | KW | Inch | φ | P | V | A | μ f | L/min | m | cm | cm | cm | kg | mm | |
| CS - 2.75S | 1 | 0.75 | 2" | 1 | 2 | 220 | 5.5 | 25 | 460 | 12 | 28.5 | 22 | 47 | 21.3 | 15 |
| CS- 2.75S (3G) | 1 | 0.75 | 3" | 1 | 2 | 220 | 5.5 | 25 | 650 | 12 | 28.5 | 22 | 47 | 22.4 | 15 |
| CS - 2.110S | 1.5 | 1.1 | 2" | 1 | 2 | 220 | 6.7 | 40 | 620 | 15 | 28.5 | 22 | 47 | 24 | 15 |
| CS- 2.110S (3G) | 1.5 | 1.1 | 3" | 1 | 2 | 220 | 6.3 | 40 | 900 | 13 | 28.5 | 22 | 47 | 25 | 15 |
| CS - 2.150S | 2 | 1.5 | 2" | 1 | 2 | 220 | 9.45 | 40 | 700 | 17 | 28.5 | 22 | 47 | 25 | 15 |
| CS- 2.150S (3G) | 2 | 1.5 | 3" | 1 | 2 | 220 | 9.2 | 40 | 1170 | 15 | 28.5 | 22 | 47 | 26.1 | 15 |
