| Quantity: | |
|---|---|
on-Line
1 Year
3-3.2m
0.47/0.66/0.8m3/Min
Motor
Stainless Steel
75MPA-2.15S
Impeller
Submersible Pump
Electric
Electric Pump
Submersible Pump
Submersible Pump, Sea Water Pump
Fishery/Farming/Commerce/Engineering
Water
Axial Flow Pump
Centrifugal Pump
Stainless Steel
Italy Import Mechanical Seal
250W
3m
660L/Min
3inch
Brown Carton Box
CE
MEPCATO
China
8413709190
20000PCS/Month
Available | Customized Request

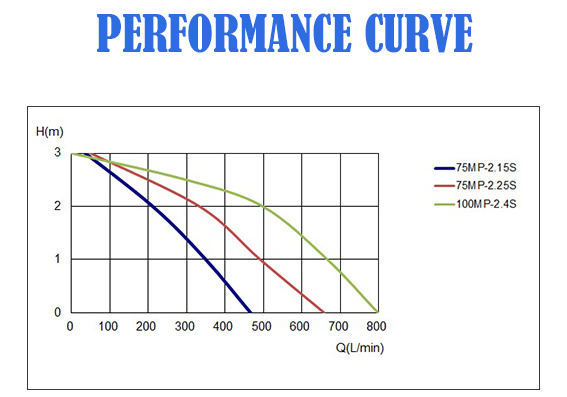

| Discharge Bore | Model | Power | Voltage /Frequency | Max Head | Max Capacity | Length of Cable | Dimensions mm | C.W.L mm | ||||
| Input | Output | |||||||||||
| mm | Watt | V/Hz | m | m3/min | m | d | D | H | W1 | |||
| 75 | 75MPA-2.15S | 260 | 150 | 230V50Hz | 3.2 | 0.47 | 5 | 75 | 194 | 421 | 110 | |
| 75 | 75MPA-2.25S | 450 | 250 | 3.2 | 0.66 | 5 | 75 | 194 | 421 | 110 | ||
| 100 | 100MP-2.4S | 750 | 400 | 3 | 0.80 | 5 | 100 | 250 | 483 | 180 | ||
Certifications
Our Advantages
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
